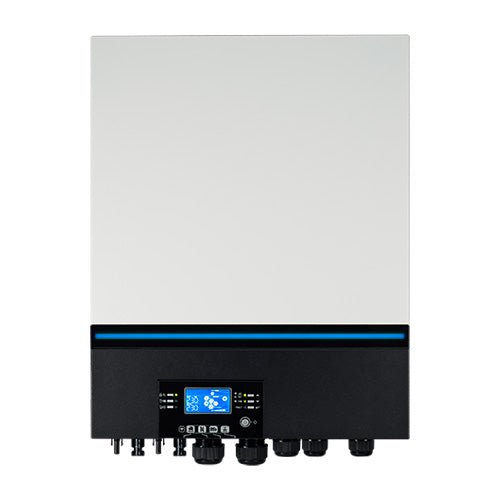

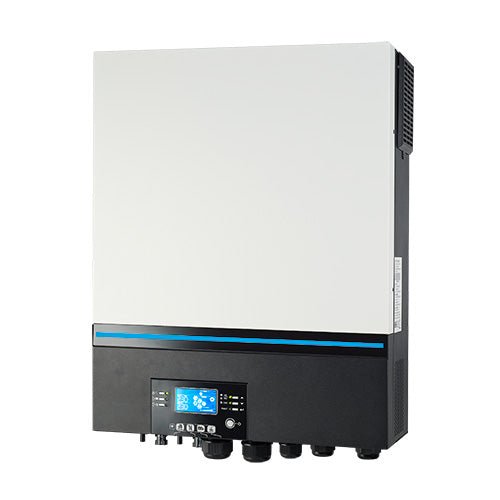

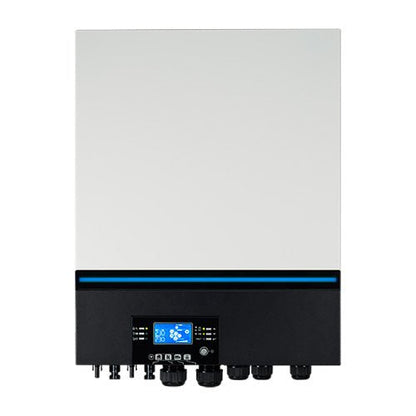

Voltronic 11kW MAX 48V (Axpert MAX E TWIN 11K) by Voltronic Power. A high-performance off-grid inverter with a 150A MPPT solar charger, two outputs and RGB status lights.
- Dual outputs for smart load management; second output schedulable via the LCD
- 27A x 2 PV inputs (max 40A), PV voltage range 90-450 VDC
- Built-in WiFi with mobile app, USB On-the-Go, built-in BMS communication port
- Replaceable fan, built-in anti-dust kit, battery independent design
- Parallel operation with up to 6 units
Specifications
| Model | Axpert MAX E TWIN 11K |
| Rated / surge power | 11000 VA / 11000 W, 22000 VA |
| Battery voltage | 48 VDC |
| Max. PV array power | 13000 W (6500 W x 2) |
| MPPT range | 90-450 VDC |
| Max. PV open circuit voltage | 500 VDC |
| Max. solar / AC charge current | 150 A |
| Peak efficiency | 93% |
| Dimensions (D x W x H) | 147.4 x 432.5 x 553.6 mm |
| Net weight | 20 kg |
| Communication | USB / RS232 / RS485 / WiFi / dry contact |
