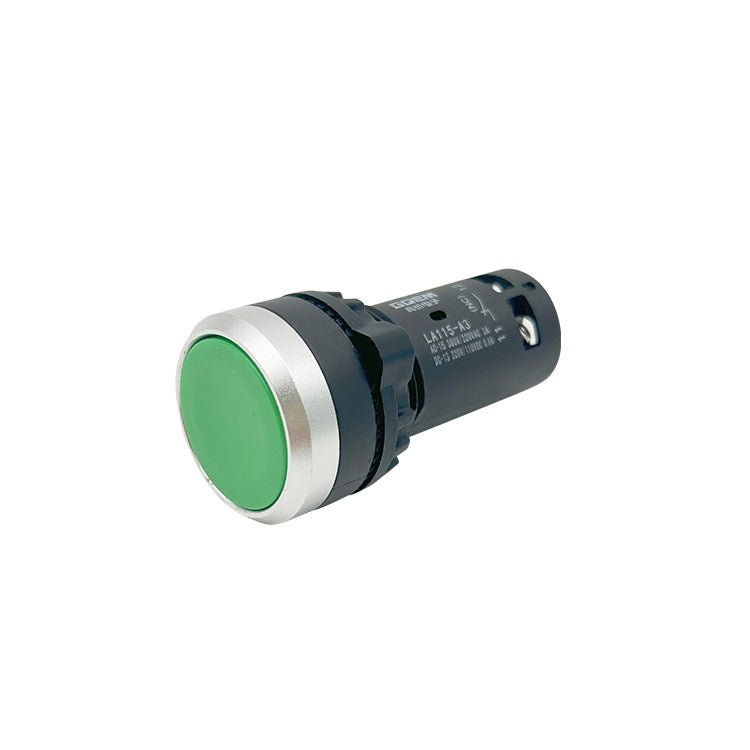

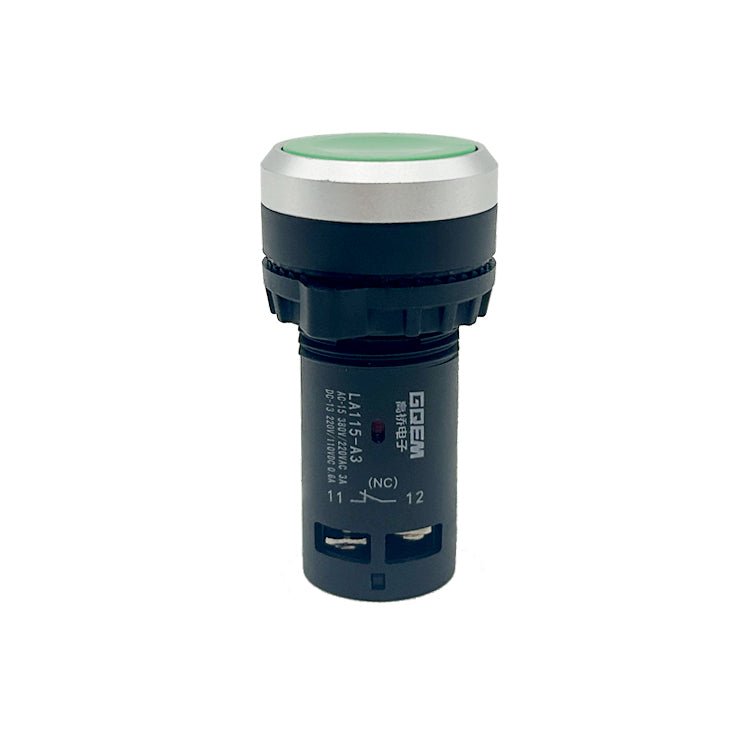

Product Name : Flush Push Button
Head Shape : Round
Mounting Hole Size: 22MM
Head Color : Red
Other Colors Of The Head : Green/Yellow/Blue/White/Black
Operation type: Momentary/Maintained
Contact Pattern : 1NO&1NC
LED Light : Without Light
Material : Plastic
Certification : CE
Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, lifts, lawn mowers

① Push Button Code

② Design Serial number

③ NO Contact

④NC Contact

⑤ Flush push button

MAIN TECHNICAL DATA

Rated value of switch:

AC-15 36V/10A  110V/10A  220V/5A  380V/2.7A  660V/1.8A

DC-13 24V/4A  48V/4A  110V/2A  220V/1A  440V/0.6A

◒Conventional thermal current: Ith10A

◒Contact resistance: ≤50mΩ

◒Insulation resistance: ≥10mΩ

◒Mechanical life:

◒Common push-button ≥100×10⁴ times

◒Selector button ≥30×10⁴ times

◒Key push-button ≥5×10⁴ times

◒Emergency push-button ≥5×10⁴ times

WORKING ENVIRONMENT

◒Ambient air temperature -25~+40°C

◒Limit height: ≤2000m

◒Relative air humidity: ≤90%

◒Pollution degree: Class3

◒Protection grade：IP40/IP65

CHARACTERISTICS

◀ Rugged & Cost-effective

◀ Well-chosen Materials & Exquisite Craftsmanship

◀ Comfortable & Durable

◀ Inexpensive & Simple And Practical

◀ Snap Structure, Easy To Install

EXPLANATION OF PROFESSIONAL TERMS

◀ NO Contact : Normally, it is in the off state. The circuit is connected after the switch is operated.

◀ NC Contact : Normally, it is connected. The circuit is disconnected after the switch is operated.

◀ 2 NO : Connect two sets of circuits separately. The contacts are usually disconnected. Both sets of circuits are connected after the switch is pressed.

◀ 2 NC : The contacts are usually in the on state. After the  switch is operated, both sets of circuits are disconnected.

◀ 1NO&1NC : The contacts are connected to two groups of circuits respectively. If no action is taken, one group is disconnected and the other group is connected. If the switch is operated, the disconnected contact will be closed while the connected one will be opened.

PARAMETRIC DIAGRAM
