VEM Industrial Fan 250BF
VEM Industrial Fan 250BF
SKU:VEM-YWF2E-250BF
Regular price
$105.31
Regular price
$131.64
Sale price
$105.31
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle

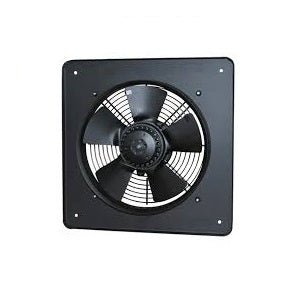

The V.E.M. 250BF is a 250 mm square-frame axial fan from the YWF series, with an external-rotor motor and a protective wire grid. The flat square plate bolts onto a wall opening, a panel or a cabinet, making it a practical exhaust or supply fan for workshops, warehouses, kitchens, farms and commercial spaces. It runs on a 220 V single-phase supply and is rated for continuous duty.
Key Features
- External-rotor motor: compact axial motor built into the fan hub.
- Square frame: 370 mm plate with four fixing holes for wall or panel mounting.
- Continuous duty: working mode S1, insulation class B / F.
- Protected: wire safety grid; protection level IP44 / IP54.
- Wide temperature range: works from -30 °C to 60 °C ambient.
Technical Specifications
| Brand | V.E.M. |
| Series | YWF axial fan, square frame (B0) |
| Model | YWF2E-250 |
| Fan size | 250 mm |
| Voltage | 220 V / 50 Hz |
| Poles / speed | 2-pole, 2,400 rpm |
| Input power | 110 W |
| Rated current | 0.50 A |
| Capacitor | 4 µF |
| Air volume | 1,300 m³/h (5 blades) or 1,450 m³/h (9 blades) |
| Noise | 60 dB(A) |
| Net weight | 3.0 kg |
| Frame size | 370 x 370 mm (fixing holes 320 mm apart) |
| Working mode | S1 (continuous) |
| Insulation class | B / F |
| Protection level | IP44 / IP54 |
| Ambient temperature | -30 °C to 60 °C |
Typical Applications
- Workshops, warehouses and garages
- Kitchens and restaurants
- Farms and greenhouses
- Equipment and cabinet ventilation
