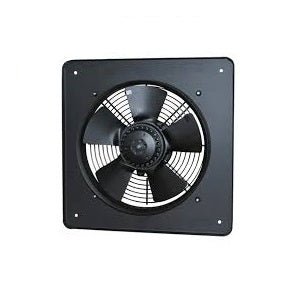

The V.E.M. 200BF is a 200 mm square-frame axial fan from the YWF series, with an external-rotor motor and a protective wire grid. The flat square plate bolts onto a wall opening, a panel or a cabinet, making it a practical exhaust or supply fan for workshops, warehouses, kitchens, farms and commercial spaces. It runs on a 220 V single-phase supply and is rated for continuous duty.
Key Features
- External-rotor motor: compact axial motor built into the fan hub.
- Square frame: 310 mm plate with four fixing holes for wall or panel mounting.
- Continuous duty: working mode S1, insulation class B / F.
- Protected: wire safety grid; protection level IP44 / IP54.
- Wide temperature range: works from -30 °C to 60 °C ambient.
Technical Specifications
| Brand | V.E.M. |
| Series | YWF axial fan, square frame (B0) |
| Model | YWF2E-200 |
| Fan size | 200 mm |
| Voltage | 220 V / 50 Hz |
| Poles / speed | 2-pole, 2,500 rpm |
| Input power | 55 W |
| Rated current | 0.25 A |
| Capacitor | 2 µF |
| Air volume | 790 m³/h (5 blades) or 885 m³/h (7 blades) |
| Noise | 52 dB(A) |
| Net weight | 1.8 kg |
| Frame size | 310 x 310 mm (fixing holes 280 mm apart) |
| Working mode | S1 (continuous) |
| Insulation class | B / F |
| Protection level | IP44 / IP54 |
| Ambient temperature | -30 °C to 60 °C |
Typical Applications
- Workshops, warehouses and garages
- Kitchens and restaurants
- Farms and greenhouses
- Equipment and cabinet ventilation
