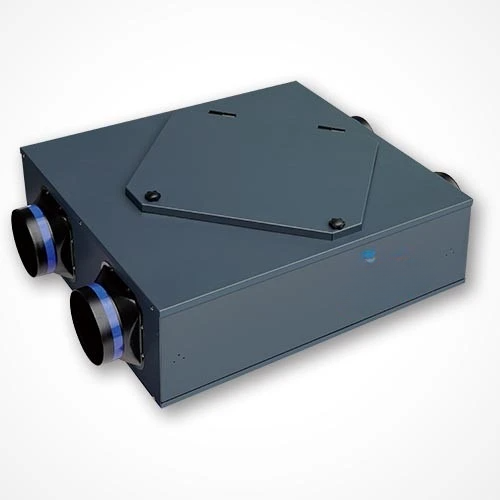

VEM Air Purification / Fresh Air Unit 1200 (Nanyoo NYDZ-QR-1200G)

The V.E.M. NYDZ-QR-1200G is the large ceiling mounted fresh air unit in the range: 1200 m³/h of filtered outdoor air with heat recovery, for a floor of offices, a restaurant, a showroom or a large villa rather than a single room.

What it does

The unit runs two ducted air paths at once — fresh air in, stale air out — and passes them through a heat exchanger so the incoming air arrives close to room temperature instead of at outdoor temperature. The supply air is filtered on the way in, which is what keeps road dust and PM2.5 out of a space whose windows stay closed. Duct connections are 250 mm, so it feeds several diffusers off one unit.

Where it suits

• Open-plan offices and a full floor of meeting rooms
• Restaurants, cafes and showrooms
• Gyms, clinics and classrooms with a high occupancy
• Large villas with a central air handling layout

Specifications

• Model: Nanyoo NYDZ-QR-1200G
• Airflow: 1200 m³/h
• Power: 716 W
• Static pressure: 380 Pa
• Noise: 56 dB
• Duct diameter: 250 mm
• Type: ceiling mounted fresh air unit with total heat recovery and filtration
• Replacement filter: VEM-NY-FLT-1200, sold separately

Matching spare parts — filter, LCD display module and laser air quality sensor — are listed separately in the store. In stock in Zahle, delivered across Lebanon.
