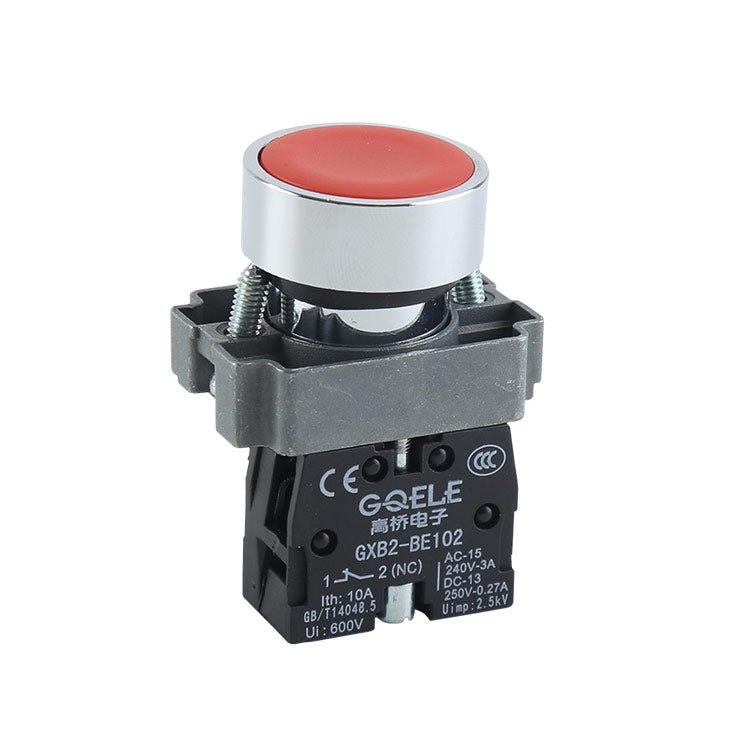

Product Name : Flush Push Button
Head Shape : Round
Color Of The Head : Red
Other Colors Of The Head : Black / Green / White / Yellow / Blue
Action Of The Head : Momentary
Light : No
Contact Pattern : 1NC
Material : Metal
Certification : CE

① Push Button Code

② Metal Series

③ Mechanical Form : A —- Flush Push Button

④ Head Color : 1 —- White  ;  2 —- Black  ;  3 —- Green  ;  4 —- Red  ;  5 —- Yellow  ;  6 —- Blue

⑤ Contact Type : 1 —- 1NO  ;  2 —- 1NC ;

                               3 —- 2NO  ;  4 —- 2NC ;

                               5 —- 1NO+1NC

WORKING ENVIRONMENT

◐ Working Environment Temperature : -25°C ~ +70°C

◐ Storage Temperature : -40°C ~ +70°C

◐ Class Of Pollution : 3

◐ Protection Grade : IP40/IP65/IP66

◐ Limit Height : ≤2000M

◐ Standard : EN 60947-1,GB14048.5

MAIN TECHNICAL DATA

◒ Rated Insulation Voltage : 600V

◒ Rated Thermal Current : 10A

◒ Switch Rating:  AC-15   Ue : 380V/250V, Ie=4.5A

                              DC-13   Ue : 220V/110V, Ie=0.6A

◒ Contact Resistance : ≤50 mA

◒ Recommended Torque : 0.9 Nm

◒ Mechanical Life Of Push Button : ≥300×10⁴ times

◒ Electrical Life : ≥30X10⁴ times
