• V.E.M. GXB2-BE102 1NC red contact block
1 1

V.E.M.

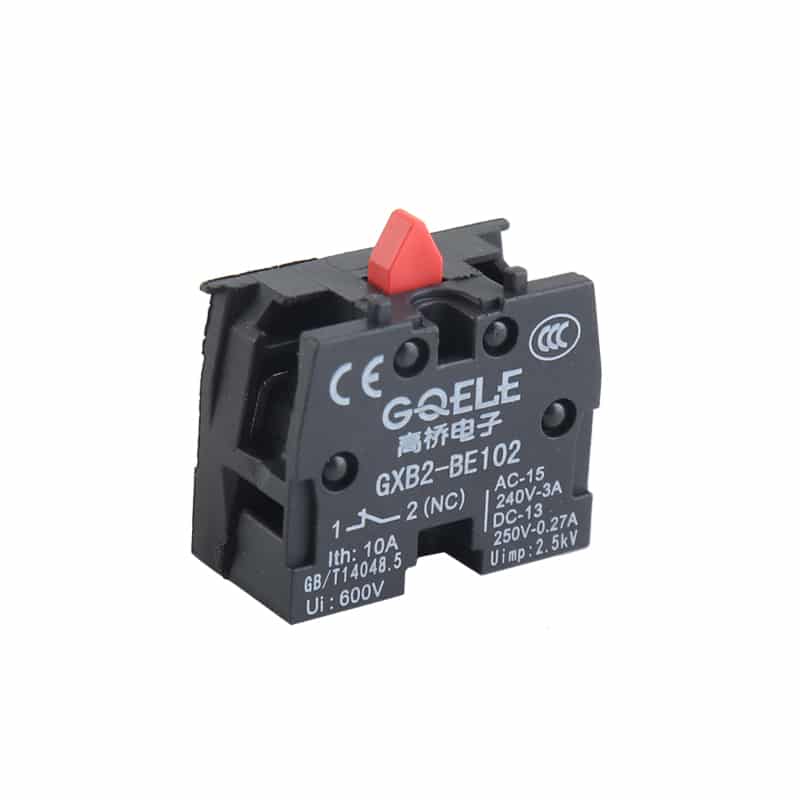

V.E.M. GXB2-BE102 Contact Block 1NC Red

V.E.M. GXB2-BE102 Contact Block 1NC Red

VEM-GXB2-BE102

$1.00
$1.49 $1.00
Sale Sold out
Shipping calculated at checkout.
  • Cash on deliveryPay when it arrives
  • Delivery across Lebanon2–4 business days
  • 5-day returnsUnused, in original packaging
  • Trusted since 1984Azar Group S.A.L., Zahle

V.E.M. GXB2-BE102 High Quality 1NC Black And Red Normally Closed Contact Block

Normally closed contact block for the V.E.M. GXB2 series of 22mm push buttons and selector switches.

  • Product Name: Normally Closed Contact Block
  • Colour: Black + Red
  • Contact Pattern: 1NC
  • Contact Action Way: From On To Off
  • Material: Plastic
  • Certification: CE

Code legend: GXB2 Series – BE Contact Block – Contact Type: 101 = 1NO; 102 = 1NC

WORKING ENVIRONMENT

  • Working Environment Temperature: -25°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C
  • Class Of Pollution: 3
  • Protection Grade: IP40/IP65/IP66
  • Limit Height: ≤2000m
  • Standard: EN 60947-1, GB14048.5

MAIN TECHNICAL DATA

  • Rated Insulation Voltage: 600V
  • Rated Thermal Current: 10A
  • Switch Rating: AC-15 Ue: 380V/250V, Ie=4.5A; DC-13 Ue: 220V/110V, Ie=0.6A
  • Contact Resistance: ≤50mΩ
  • Recommended Torque: 0.9Nm
  • Electrical Life: ≥30×104 times

CHARACTERISTICS

  • Convenient disassembly, free collocation
  • Long service life
  • Contact sensitivity
  • Colour marking, easy to distinguish
  • Simple, secure connection
  • High-quality flame-retardant material
View full details
