V.E.M. GXB2-BD41 Momentary/Spring Return 1NO 2-Position

V.E.M. GXB2-BD41 Momentary/Spring Return 1NO 2-Position

$1.50
$1.50
Sale Sold out
Shipping calculated at checkout.

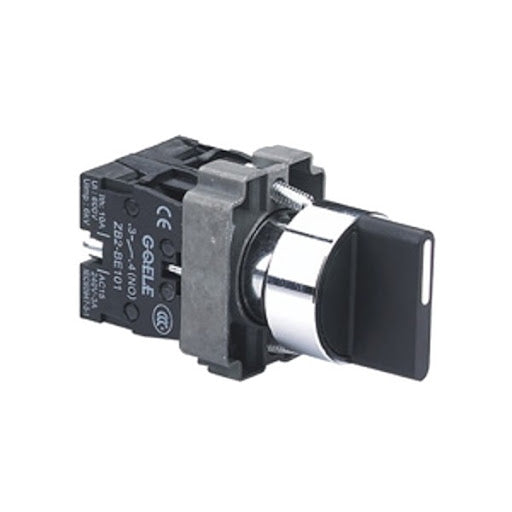

V.E.M. GXB2-BD41 Maintained 22mm 1NO Short Handle 2 Position Selector Rotary Push Button Switch Without LED Light

Product Name : Selector Push Button Switch
Handle Color : Black
Mounting Hole Size: 22MM
Shape Of The Head : Round
Handle Type : Short Handle
Handle Positions : 2 Position
Action Of The Head : Maintained
Contact Pattern : 1NO
Terminal type:Screw terminal
Shell Material : Metal
Certification : CE

GXB2-BD21

①: GXB2 Series

②:BD:Selector Switch (Short-handle)

③:2: 2-position(Maintained)3: 3-position(Maintained);

6: 3-position(Momentary,R to C);4: 2-position(Momentary,R to L)

5: 3-position(Momentary,R to C & L to C) 7 3-position(Momentary L to C)

④Contact Block : 1: 1NO; 2: 1NC; 3: 2NO; 4: 2NC ; 5: 1NO+1NC

MAIN TECHNICAL DATA

Rated insulation voltage :600V

Rated thermal current:10A

Switch rating:AC-15 Ue:380V/250V, le=4.5A;DC-13Ue:220V/110V,le=0.6A

Contact resistance:≤50mA

Recommended torque :0.9Nm

Connectable area:min 1×0.5mm2,Max 2×1.5mm20r 1×2.5mm2

Mechanical life:Push button≥300×104 times;Selector Switch≥1004times

Emergency Stop Push button≥30×104 times

Electrical life:≥30×104 times

Limit voltage(lamp):0.8Ue≤U≤1.15Ue

Working Environment

Working environment temperature:-25~+70℃

Storage temperature:-40~+70℃

Class of pollution :3level

Protection grade:IP40/IP65/IP66

Limit height:≤2000m

Standard:EN 60947-1,GB14048.5
