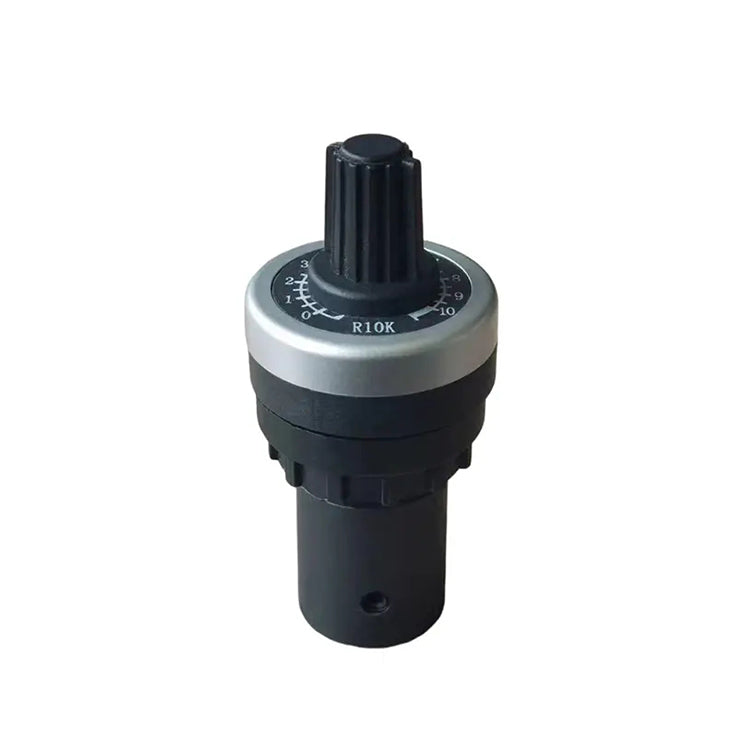

AD116-22PM Frequency Converter 22mm Adjust Speed Precision Rotary Linear Potentiometer 10K
Type: Rotary Potentiometer
Brand Name: GQEM
Mounting Hole Diameter: 22mm
D/C: AD116-22PM
Technology: Wirewound
Resistance: 10 Ohm-2M Ohm
Resistance Tolerance: ±10%
Rated Power: 0.5W
Max. Operating Voltage: 250V
Operating Temperature: -55℃~125℃
Packaging: none
Power (Watts): 0.5W
Temperature Coefficient: ±250ppm/°C, ±250 ± 100ppm/℃
Rotation: 260°±5°
Resistive Material: Wirewound
Termination Style: PC Pin
Actuator Length: none
Actuator Diameter: none
Bushing Thread: Not Applicable
Shaft Size: 4mm
Effective Travel: 260°±5°
Application to:Volume control, brightness regulation, gain control, instrument calibration, temperature regulation, frequency tuning and circuit voltage regulation etc.
①AD116 Series
②Installing size of neck
③ Adjust Speed Potentiometer （Small knob）
| Electrical Characteristics | Range of nominal resistance | 5Ω~2MΩ |
|
Resistance tolerance |
±10%±5% (customization) | |
| Terminal resistance | ≤±1%R or 2Ω | |
| Contact resistance variation (CRV) | ≤±1%R or 3Ω | |
| Insulation resistance | ≥ 1GΩ (100V AC) | |
| Withstand voltage | 101.3 KPa 500V; 8.5 KPa 350V | |
|
Environment Characteristics |
Rated power | 0.5W (250V max) |
| Temperature range | -55°C~+125°C | |
| Temperature Coefficient | ±250, ±100ppm/°C | |
| Collision (390m/S2, 4000 times) | ΔR≤±1%R | |
| Vibration (10-500HZ, 0.75mm, 6h) | ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS | |
| Temperature variation (-55°C/30min,+125°C/30min, 5 cycles) | ΔR≤±2%R,ΔUab/Uac≤±2%R | |
| Climate category (IEC68-2-2) | ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ | |
| Electrical endurance (0.5W, 1000h) | ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω | |
| Mechanical endurance (200 cycles |
ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω |
|
| Steady damp heat (IEC68-2-3, Ca, 96h) | ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ | |
|
PhysicalCharacteristics |
Total mechanical travel | 260°±5° |
| Mounting Hole Diameter | 22mm | |
| Water proof | IP65 |
