V.E.M. 160A Single Pole Distribution Block – PA66 Housing & Tin-Coated Brass Conductor

The V.E.M. 160A Single Pole Distribution Block (Item No. CJUKK-160) is a heavy-duty solution for high-current power branching within industrial electrical panels. Engineered for durability and space efficiency, this modular block provides a secure and organized way to manage high-amperage power distribution in low-voltage enclosures.

Technical Specifications:

• Item Number: CJUKK-160
• Rated Current: 160A
• Input Configuration: 1 x 70mm² + 1 x 16mm² wires in
• Output Configuration: 6 x 16mm² wires out
• Outline Dimensions: 75 x 28 x 47 mm
• Installation Dimension: 64 x M5

Key Features:

• 160A High-Current Rating: Robustly designed to manage continuous loads of up to 160A, making it ideal for main distribution boards.
• Industrial-Grade PA66 Housing: Encased in high-quality PA66 nylon, providing excellent flame retardancy, impact resistance, and superior electrical insulation.
• High-Conductivity Internals: Features a tin-coated brass conductor for maximum electrical efficiency and long-term protection against corrosion.
• Zinc-Coated Steel Hardware: Equipped with zinc-coated steel screws that offer high mechanical strength for vibration-proof, secure terminations.
• Modular Space Efficiency: The compact 75mm length allows for maximum organization inside tight enclosures, essential for professional panel builders.

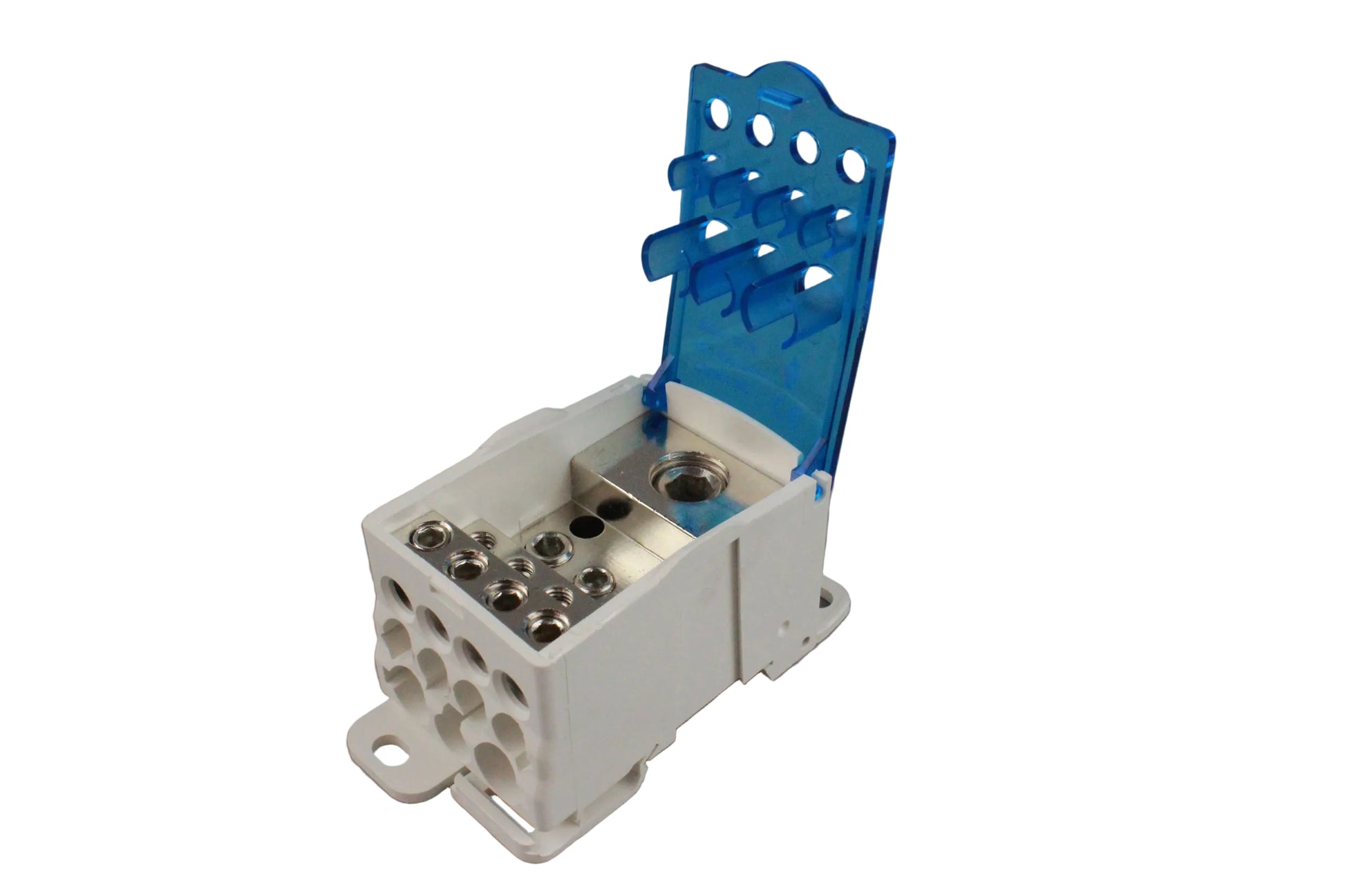

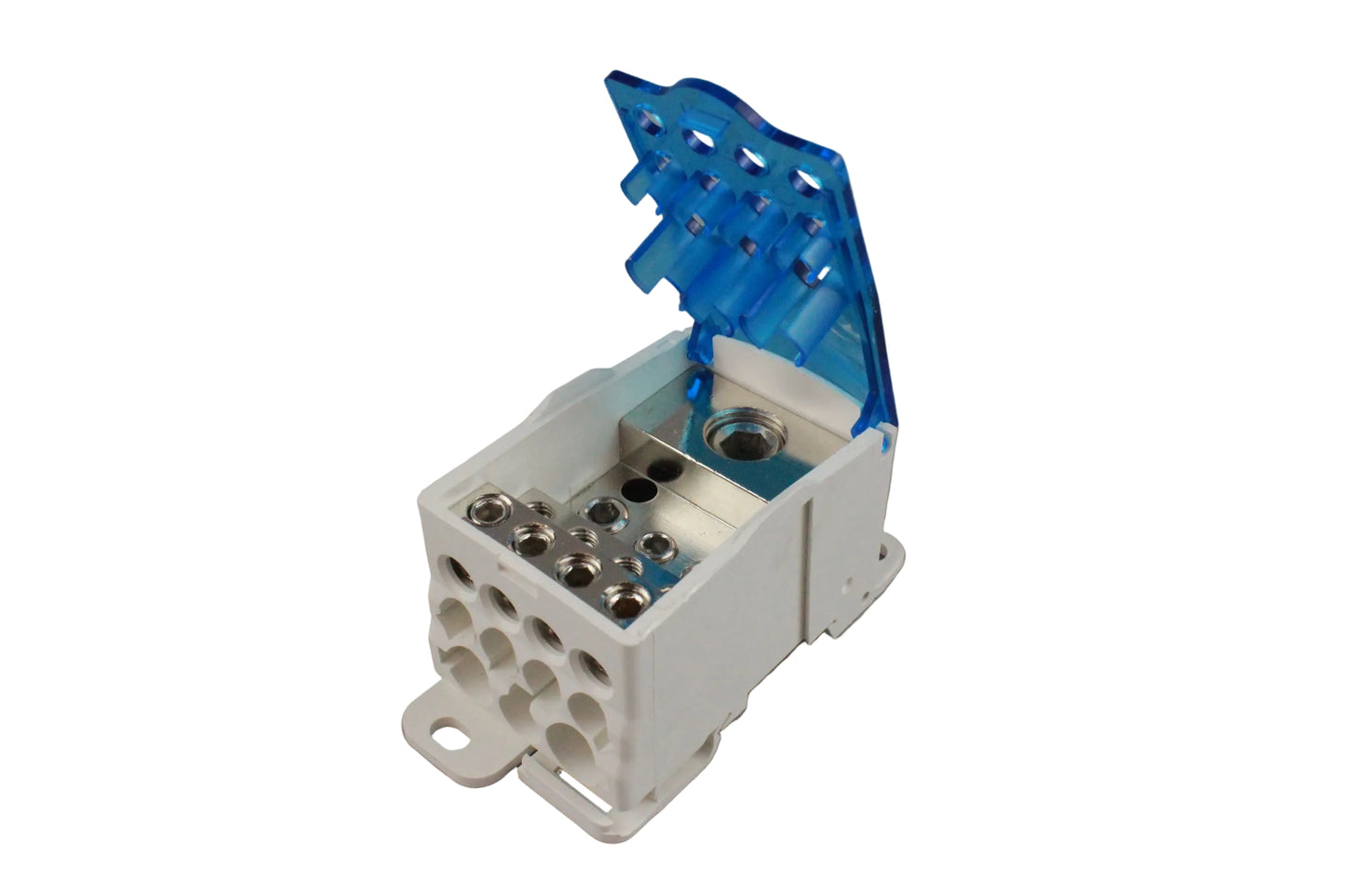

• Phase Protection: Includes a blue protective cover to prevent accidental contact with live components while allowing for easy visual inspection.
