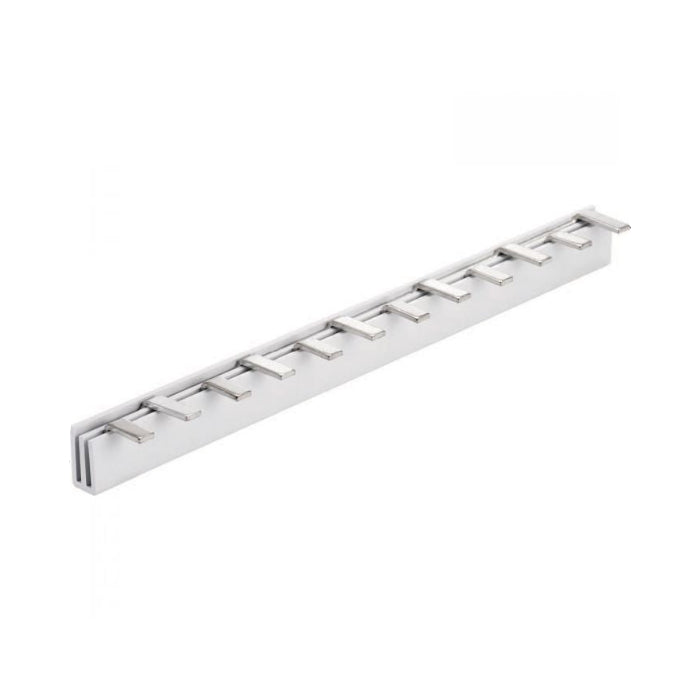

V.E.M. 2-Pole Comb Busbar – 1.5mm Copper Thickness, 54 Modules (1 Meter)

No reviews

The V.E.M. 2-Pole Comb Busbar is a professional-grade distribution solution designed for the efficient interconnection of two-pole modular devices, such as MCBs and RCDs. This 1-meter busbar streamlines complex wiring in three-phase or phase-plus-neutral systems, providing a secure and aesthetically clean installation for high-density electrical panels.

Technical Specifications:

• Configuration: 2 Pole (Dual Phase / Phase+Neutral)
• Length: 1 Meter
• Module Capacity: 54 Modules
• Copper Dimensions: 1.5 mm Thickness x 7 mm Width
• Pin Geometry: Pin Type with 5 mm Pin Width
• Plation: No Plating (Pure Copper)
• Accessories: Supplied without end cap

Key Features:

• Heavy-Duty Copper Core: Features a 1.5mm thick pure copper conductor for high electrical conductivity and reduced heat dissipation.
• Dual-Pole Integration: Engineered specifically for devices requiring two-pole connections, significantly reducing the need for manual cable loops.
• Industrial Grade Insulation: Encased in high-quality, flame-retardant housing to ensure maximum safety against short circuits and accidental contact.
• Modifiable Length: The 1-meter rigid strip can be cut to fit specific distribution board requirements, offering flexibility for custom panel builds.
• Professional Organization: Maintains a low profile and organized layout, allowing for better airflow and easier maintenance within the enclosure.
