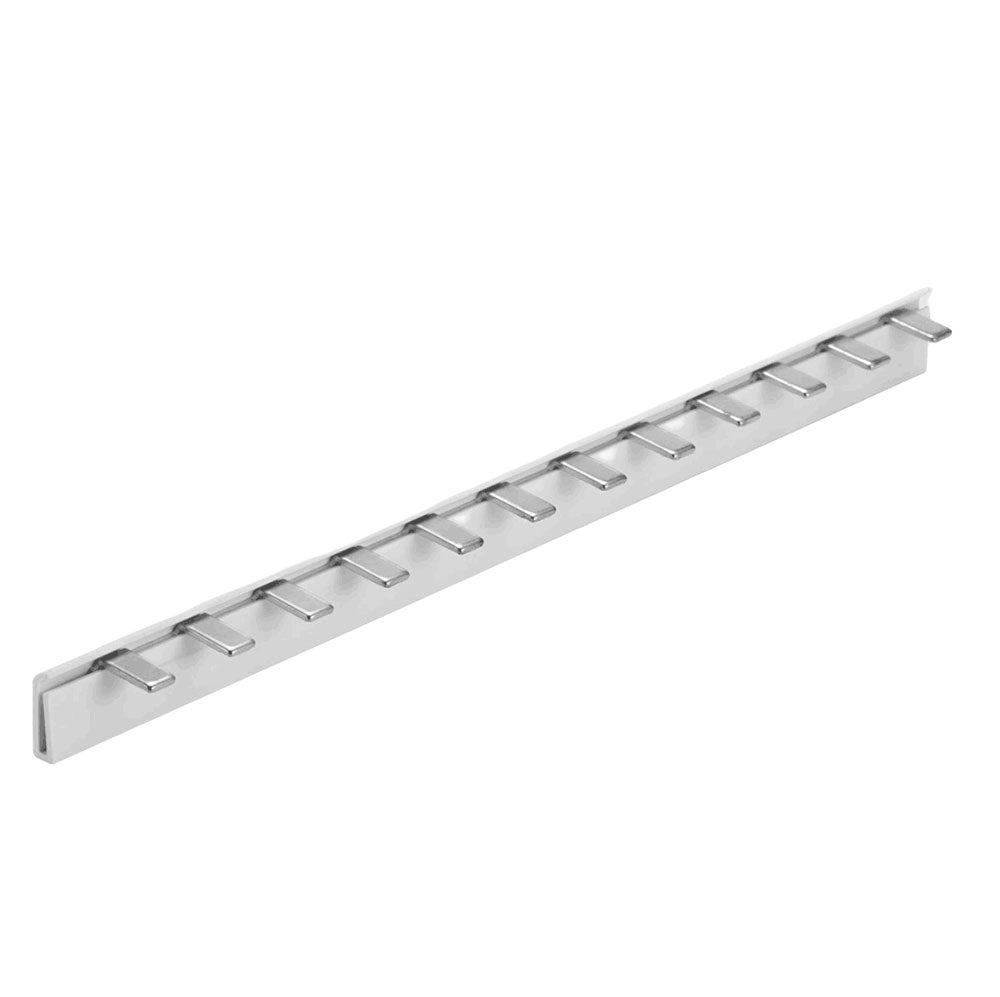

V.E.M. 1-Pole Comb Busbar – 1.5mm Copper Thickness, 54 Modules (1 Meter)

The V.E.M. 1-Pole Comb Busbar is a high-performance electrical distribution component designed for the rapid and secure interconnection of miniature circuit breakers (MCBs) and other modular DIN-rail devices. Engineered for industrial-grade durability, this 1-meter busbar eliminates complex bridge wiring, ensuring a clean and professional finish for high-density electrical panels.

Technical Specifications:

• Configuration: 1 Pole (Single Phase)
• Length: 1 Meter (Standard)
• Module Capacity: 54 Modules
• Copper Dimensions: 1.5 mm Thickness x 7.0 mm Width
• Pin Geometry: Pin Type, 5 mm Pin Width
• Plating: No Plating (Pure Copper)
• Accessories: Supplied without end caps

Key Features:

• High-Conductivity Pure Copper: Manufactured with a 1.5mm thick pure copper core to ensure maximum electrical efficiency and minimal heat generation under continuous load.
• Streamlined Installation: The 54-module pin-type design allows for the simultaneous connection of multiple modular devices, significantly reducing labor time compared to traditional cable looping.
• Superior Insulation: Encased in a high-dielectric, flame-retardant housing to provide maximum safety and protection against accidental contact in crowded enclosures.
• Customizable Length: The 1-meter rigid construction can be easily cut to size by professional panel builders to fit specific distribution board requirements.
• Optimized Power Distribution: Provides a stable, low-resistance path for power branching, essential for maintaining the integrity of industrial and commercial low-voltage systems.
