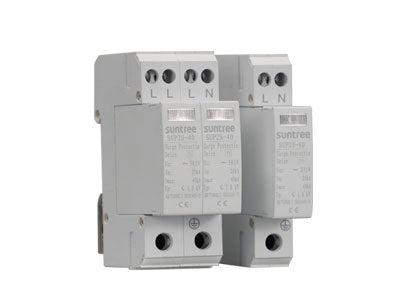

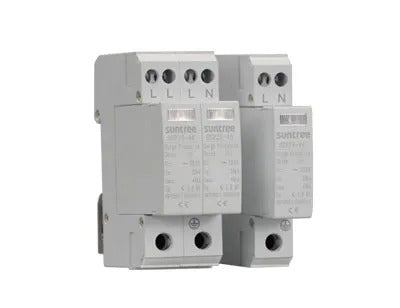

  • Suntree SUP2 T1+T2 AC surge protector 2P and 4P

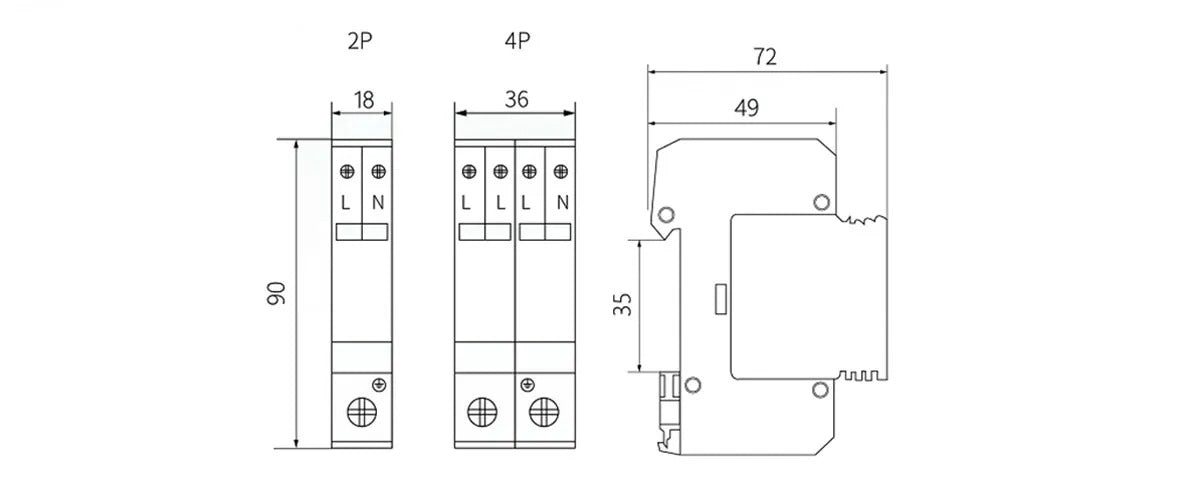

  • Suntree SUP2 T1+T2 surge protector dimensions 2P and 4P
1 3

Suntree

Suntree Surge Protector 2P 275VAC 20-65KA T1+T2

Suntree Surge Protector 2P 275VAC 20-65KA T1+T2

SUNT-SUP2-T1+T2-2P-275VAC

$22.25
$27.81 $22.25
Sale Sold out
Shipping calculated at checkout.
  • Cash on deliveryPay when it arrives
  • Delivery across Lebanon2–4 business days
  • 5-day returnsUnused, in original packaging
  • Trusted since 1984Azar Group S.A.L., Zahle

The Suntree SUP2-T1+T2 2P 275 V AC surge protector is a Type 1+Type 2 (T1+T2) AC surge protective device for single-phase supplies. It protects inverters, appliances and control systems from lightning surges and switching spikes, which are common on Lebanese grid and generator supplies, and it suits solar homes, buildings and distribution boards.

Key Features

  • Type 1+2 protection: handles both direct lightning current and induced surges at the main board.
  • Status window: green when normal, red when the module has failed and needs replacing.
  • Remote signal option: versions with teleindication contacts send a fault signal if a module fails.
  • Wide system use: suitable for TT, IT, TN-S, TN-C and TN-C-S systems, 50/60 Hz, 230/480 V and below.
  • DIN rail mounting: clips onto a standard 35 mm rail; flame-retardant UL94 V-0 housing.

Technical Specifications

Brand / Series Suntree SUP2-T1+T2
Poles 2P
Max. continuous voltage Uc 275 V AC
Discharge current 20-65 kA
Test class T1+T2
Response time 25 ns or less
Frequency 50/60 Hz
Housing PBT/PA66, flame retardant UL94 V-0
Protection degree IP20
Mounting 35 mm DIN rail
Status indication Green normal / red failed
Standards GB/T18802.1, IEC61643-11

Typical Applications

  • Main distribution boards
  • Solar inverter AC output
  • Generator change-over panels
