• UV resistance and VO flame retardant material

• Contact Silver Plating, silver layer thickness up to the industry's highest standards

• Arcing Time in 3 ms

• No Polarity

• Lockable at OFF position

• IEC/EN60947.3 standard and AS 60947.3

• Provide 5-year warranty product guarantee

ELECTRICAL TECHNICAL REFERENCE

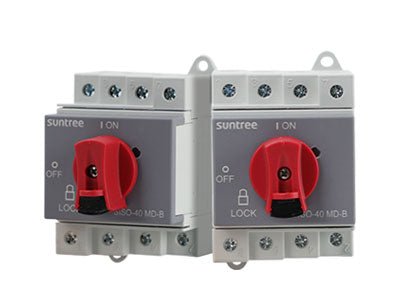

MAINCONTACTS	VOLTAGE	SISO-40
Rated thermal current lthe		32A
Rated insulation voltage Ui		1500V
Distance of contacts(per pole)		8mm
Rated operational current le(DC-PV2)
MAXIMUM CABLE CROSS SECTIONS (INCL. JUMPER)
4 layers, only 2layers in series, with two load	300V	32A
	600V	32A
	800V	16A
	1000V	9A
	1200V	9A
4 layers, 4 layers in series, with one load	300V	32A
	600V	32A
	800V	32A
	1000V	32A
	1200V	32A
TYPE
Number of poles		4-pole
Terminal designation, main circuit		1; 3; 5:7; 2; 4; 6; 8
Type of Conductor		4-16mnm (Rigid: solid or Stranded)
		4-10mnm (Flexible)
Number of conductors per terminal		1
Required preparation of the conductor		Yes
Stipping length (mm), main circuit		8mm
Tightening torque (M4), main circuit Cable section		1.2~1.8 N.m
