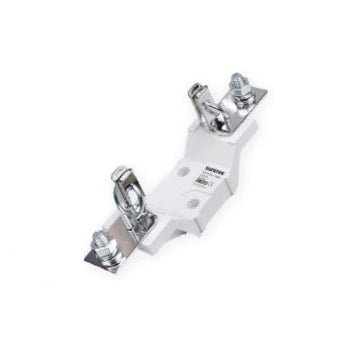

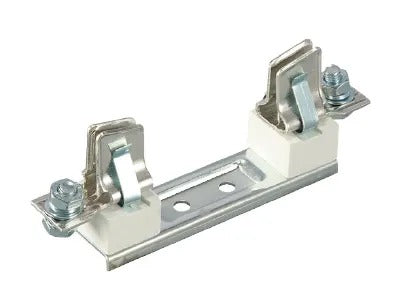

The Suntree SNH00PV fuse holder is a photovoltaic DC fuse base for NH00-size gPV fuse links up to 160 A at 1000 V DC. It is used in PV combiner boxes and battery or inverter DC lines to give each circuit proper overcurrent protection, from home solar systems to commercial arrays.
Key Features
- PV rated: designed for photovoltaic combiner boxes and PV arrays to IEC 60269-6.
- 160 A capacity: takes SNH00PV-size fuse links up to 160 A.
- Silver-plated copper terminals: low contact resistance, low temperature rise and high conductivity.
- Corrosion resistant: passes a salt spray test of 24 hours or more.
- Fuse links separate: choose the gPV fuse link rating for your circuit.
Technical Specifications
| Series | SNH00PV |
| Rated voltage | DC 1000V |
| Rated current (holder) | 160A |
| Fuse-link size | SNH00PV (NH00 PV) |
| Operating class | gPV |
| Terminals | Silver-plated copper |
| Net weight | 0.322 kg |
| Standard | IEC 60269-6 / EN 60269-6 |
Typical Applications
- PV combiner boxes
- Inverter and battery DC lines
- Commercial solar arrays
