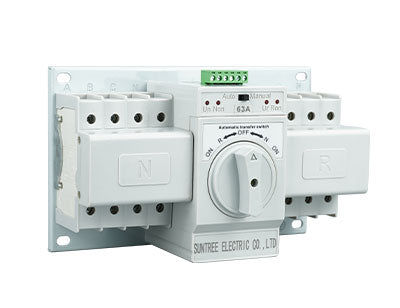

SUNTREE Automatic Transfer Switch SQ3W-63 4P 400VAC 63A
SUNTREE Automatic Transfer Switch SQ3W-63 4P 400VAC 63A
Regular price
$66.00
Regular price
Sale price
$66.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SQ8W Series Automatic transfer switch
• Relay the work voltage range from 120v to 280V ,
it can still work,not appear coil burned phenomenon.
• with overload and short-circuit protection
• Strong anti-interference ability Quick Transfer reliable performance
• Small size, with firefighting, power generation and other functions
• Suitable for important power supply places where power failure is not allowed
ELECTRICAL TECHNICAL REFERENCE
| SQ8W | |
| Product type | Automatic transfer switch |
| Specification current le(A) | 6/10/16/20/25/32/40/50/63A |
| Rated operating voltage, Ue (V) | AC230V/AC400V |
| Rated insulating voltage Ui (V) | AC 690V |
| Rated impulse withstand voltage (KV) | 4KV |
| Rated short circuit making capacity Icm | 6kA |
| Rated short circuit breaking capacity Icn | 4.5KA |
| Service life | 5000 times |
| Electric equipment grade | CB Class |
| Controller | Type A(basic type) |
| Rated control supply voltage,Us(V) | 230V 50Hz |
| Operating transfer time (no time delay) | ≤3s |
