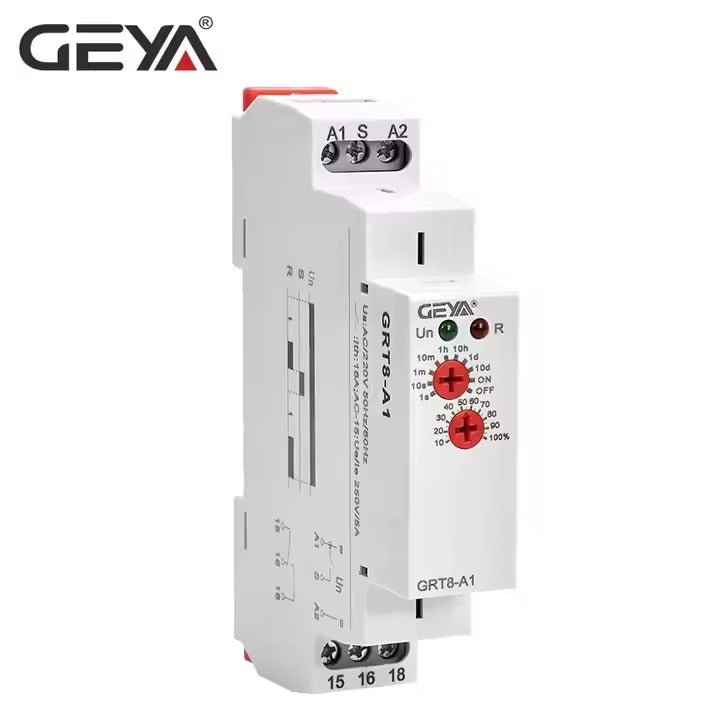

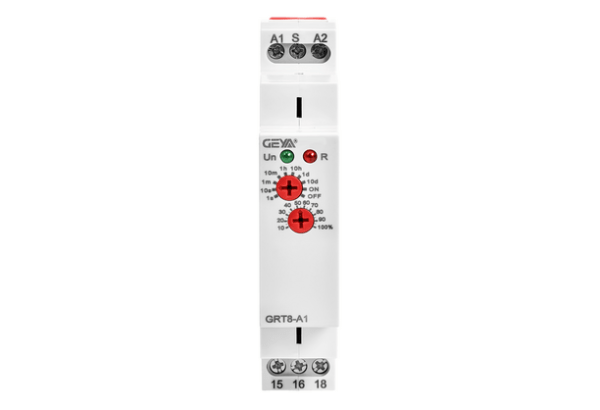

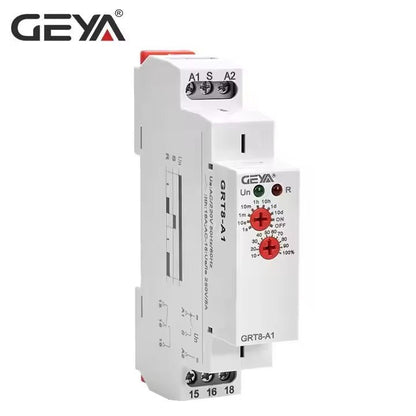

GEYA GRT8-A1 Single Function Time Relay
GEYA GRT8-A1 Single Function Time Relay
SKU:GEY-GRT8-A1-W240
Regular price
$13.59
Regular price
$16.99
Sale price
$13.59
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle
GEYA GRT8-A1 Single Function Time Relay by GEYA. Single-function time relay with a choice of Delay ON or Delay OFF operation, set by a potentiometer.
- Two functions: A (Delay ON) or B (Delay OFF)

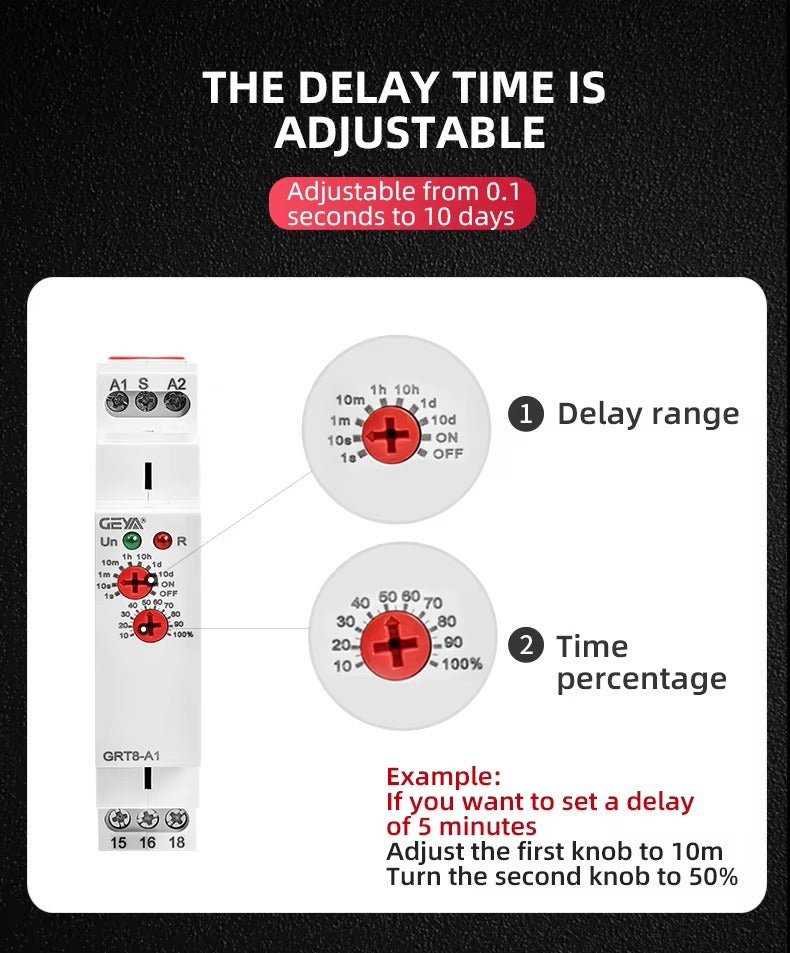

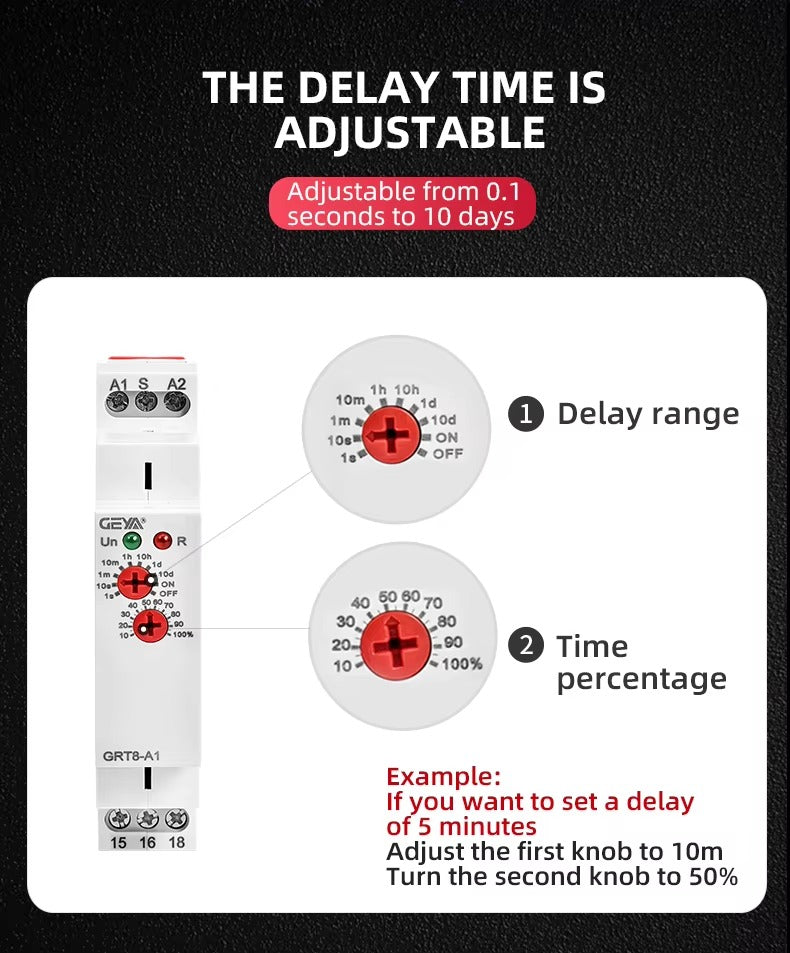

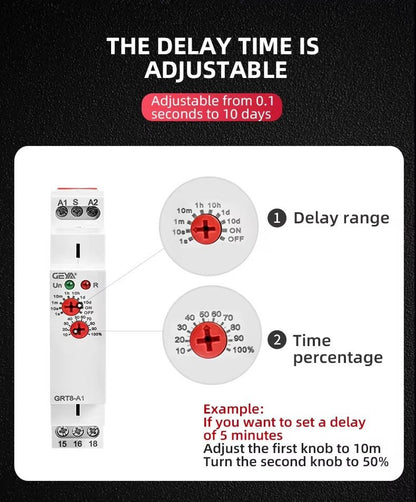

- Time scale 0.1 s to 10 days in 10 ranges

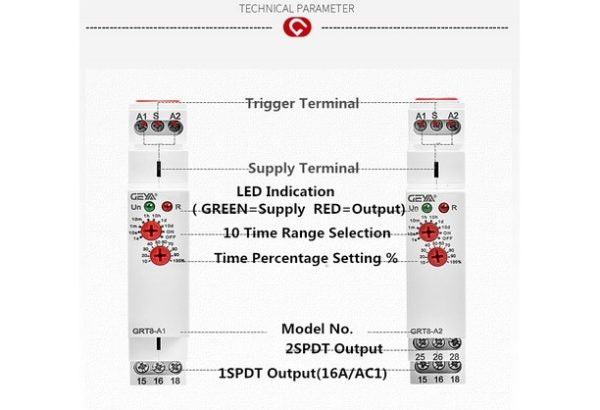

- Green supply LED and red output LED
- 1 x SPDT output, 16A / AC1
- 1-module DIN rail housing
Specifications

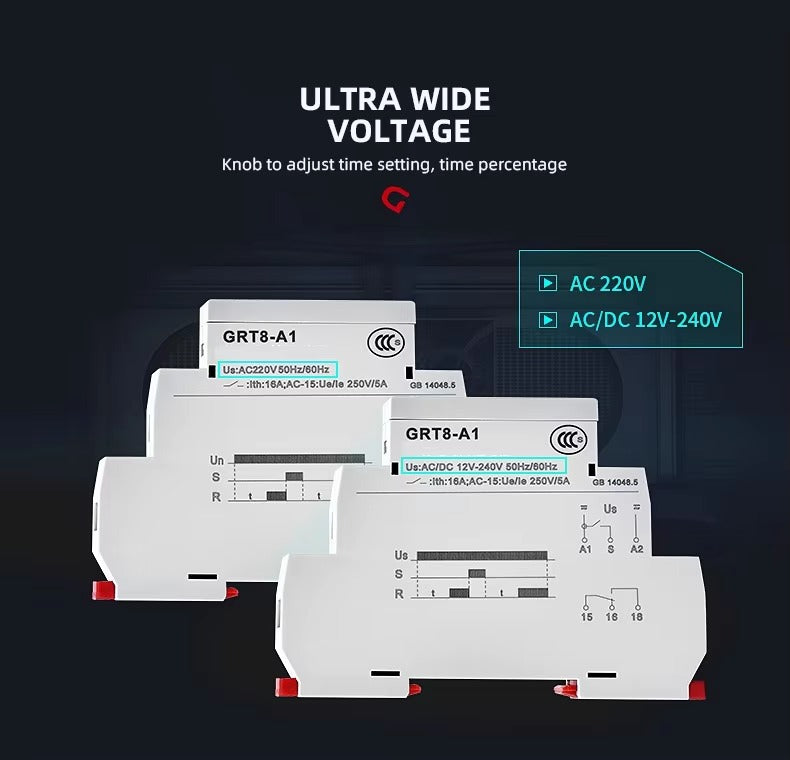

| Supply voltage | AC/DC 12-240V (W240) or AC 230V (A230) |

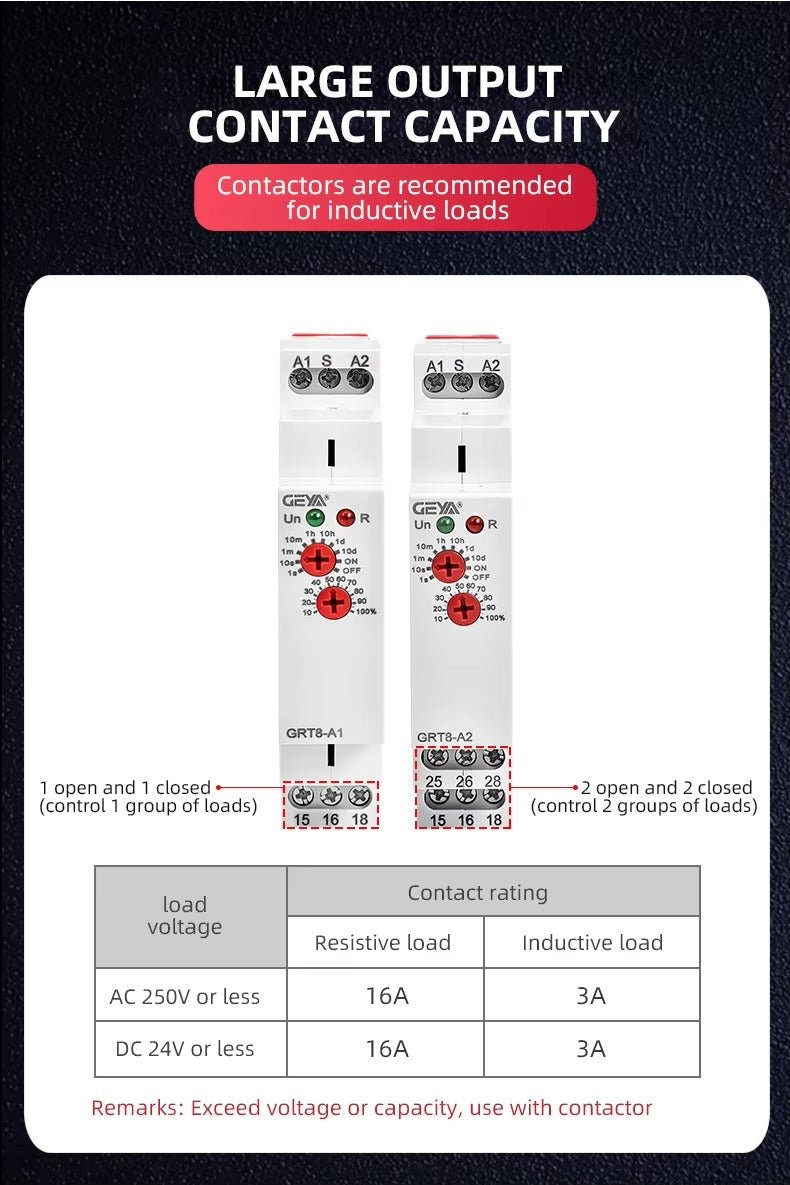

| Output | 1 x SPDT, 16A 250VAC |
| Time range | 0.1 s - 10 days |
| Repeat accuracy | 0.2% |
| Mounting | 1-module, DIN rail EN/IEC 60715 |

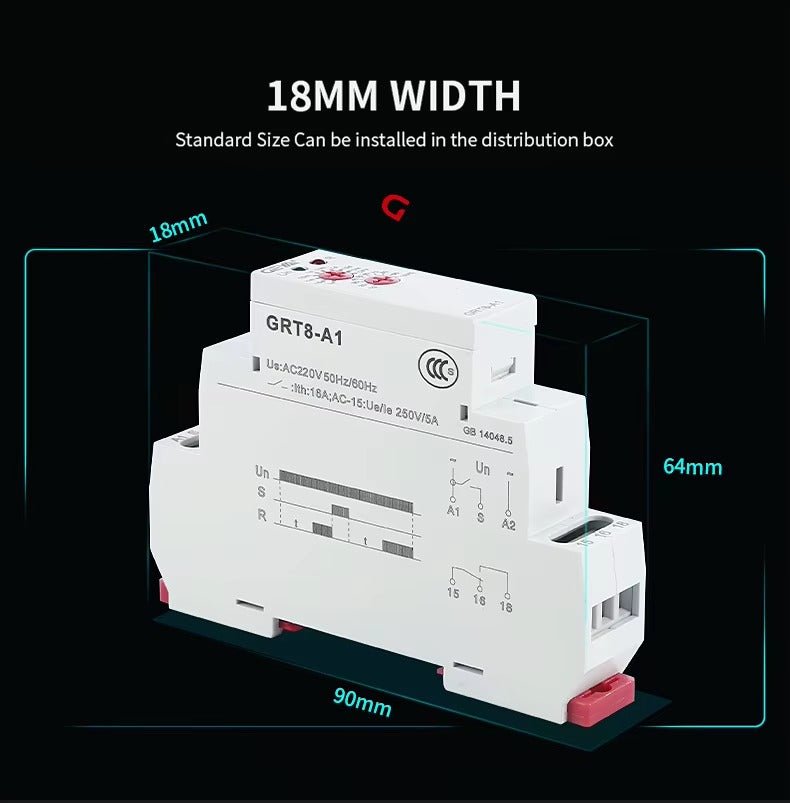

| Dimensions | 90 x 18 x 64 mm |
| Protection | IP40 front panel / IP20 terminals |
| Operating temperature | -20 to +55 C |
