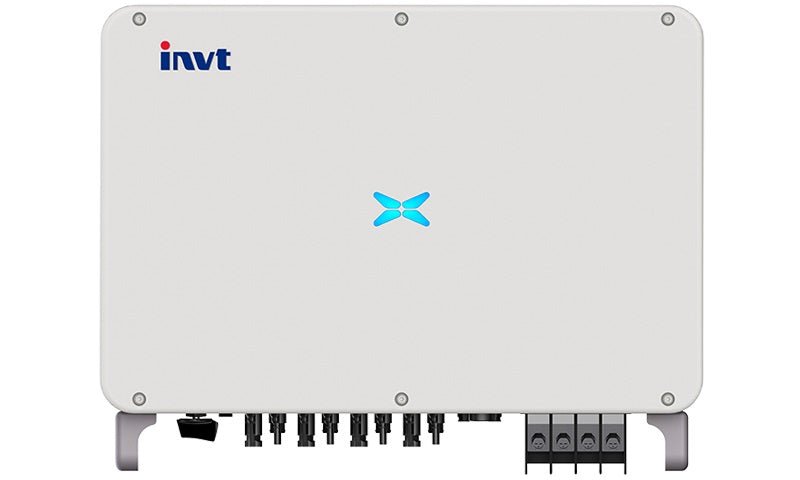

INVT XG 110kW On-Grid Solar Inverter

XG110kW three-phase on-grid solar inverters have high power density and are equipped with one-stop intelligent data management platform to provide flexible and efficient solutions for larger industrial and commercial power stations, large poverty alleviation power stations and large ground power stations.

Efficient

• 9-12 MPP Trackers, high single circuit tracking accuracy, fast dynamic response and higher power generation
• 150% DC Input Oversizing
• Maximum efficiency of 98.7%. Wide MPPT voltage range: 180V-1000V
• Compatible with high power modules

Intelligent

• Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults
• Intelligent Fault Detection: ac-side voltage and current waveforms real-time recorded, fast fault location
• Support RS485(WiFi/DRM/Bluetooth optional): remote monitoring and operation via PC or mobile phones

Reliable

• IP66 Protection degree: support outdoor installation
• DC & AC Type II SPD: prevent lightning damage
• AFCI Function (Optional): when an arc-fault is detected the inverter immediately stops operation
