INVT
INVT HMI 4.3 inch screen
INVT HMI 4.3 inch screen
SKU:INVT-VS-043QE
Regular price
$86.78
Regular price
$108.47
Sale price
$86.78
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle

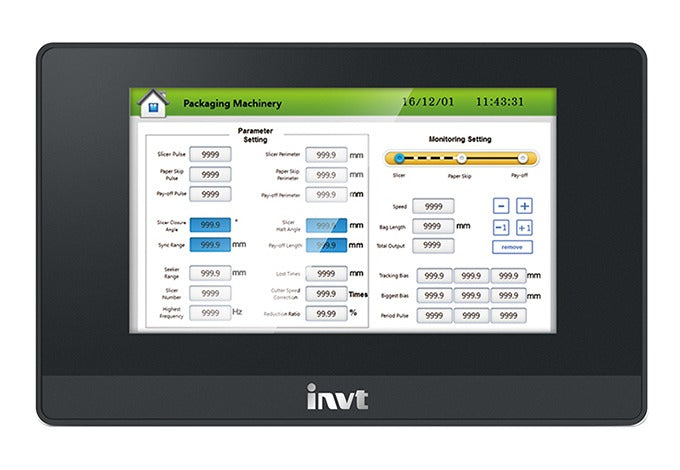

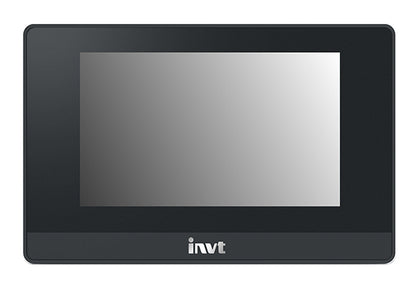

The INVT VS-043QE is a 4.3-inch colour touch screen HMI from the VS-Q series, used as the operator panel on machines and control cabinets. It connects to PLCs, drives and other serial devices so operators can start, stop, set parameters and watch alarms from one compact screen, a practical upgrade for factories and workshops across Lebanon.
Key Features
- Clear display: 4.3-inch 480 x 272 TFT screen with 24-bit colour and 400 cd/m2 LED backlight.
- Industrial processor: Linux-based, Cortex-A7 1 GHz dual-core CPU with 128 MB DDR3 and 128 MB flash.

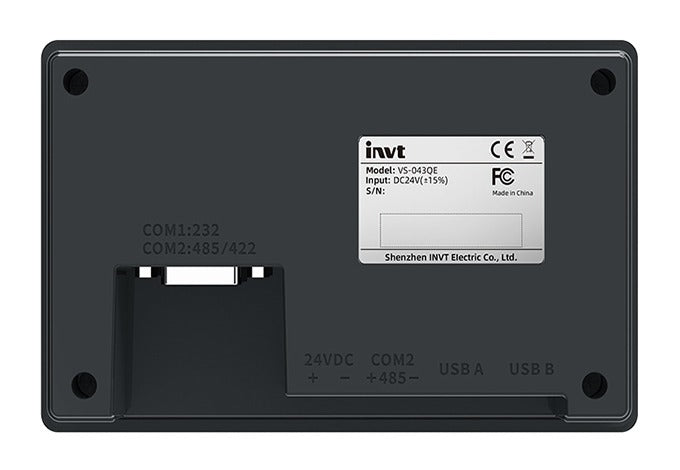

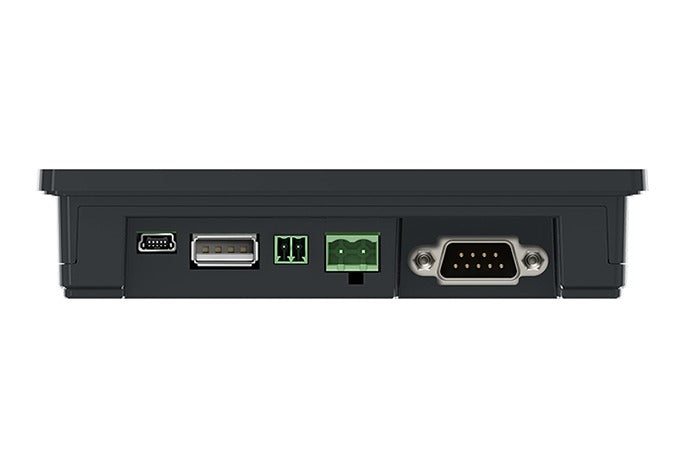

- Serial connectivity: COM1 RS232 and COM2 RS485/RS422 for PLCs, inverters and instruments.
- USB ports: one USB host (U-disk storage supported) and one USB client for programming.
- Tough front panel: IP65 front, works from -20 to 55 C.
- Free configuration: projects built in INVT HMITOOL software.
Technical Specifications
| Brand / Series | INVT VS-Q HMI |
| Model | VS-043QE |
| Material code | 11026-00025 |
| Display size | 4.3" |
| Resolution | 480 x 272 |
| Screen | ITO, 24-bit colour |
| Brightness | 400 cd/m2 |
| Backlight | LED, 20,000 h life |
| Touch panel | 4-wire high accuracy resistive |
| CPU | Cortex-A7 1 GHz dual core |
| Memory / Flash | 128 MB DDR3 / 128 MB |
| USB | 1 x USB host, 1 x USB client |
| COM1 | RS232 |
| COM2 | RS485 / RS422 |
| Ethernet | Not supported on this model |
| SD card / 4G / WiFi | Not supported |
| Power supply | 12-24 V DC (+/-15%) |
| Rated power | 3 W |
| Operating temperature | -20 to 55 C |
| Humidity | 5-95% RH (no condensation) |
| Protection | IP65 (front panel) |
| Certification | CE (EN55032, EN55035), FCC Class A |
| Dimensions (W x H x D) | 139 x 86 x 31 mm |
| Panel cut-out | 132 x 80 mm |
| Weight | 216 g |
| Configuration software | HMITOOL |
Typical Applications
- Operator panel for small machines and pumps
- Front-end for INVT PLCs and inverters over RS485
- Parameter setting and alarm display in control cabinets
