INVT Digital Output(Sink Type) 16xDigital(NPN), 24VDC,0.5A;RoHS
INVT Digital Output(Sink Type) 16xDigital(NPN), 24VDC,0.5A;RoHS
SKU:INVT-FL2102
Regular price
$77.87
Regular price
$97.34
Sale price
$77.87
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle

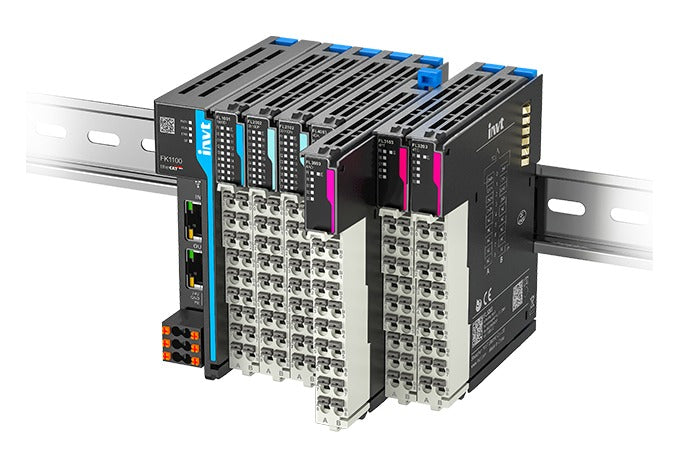

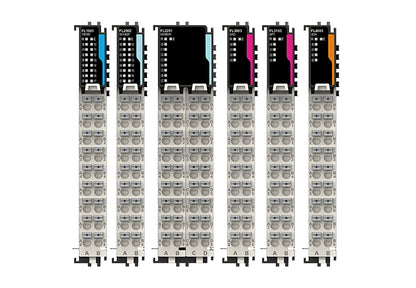

The INVT FL2102 is a 16-channel digital output module (transistor, NPN sink type) from the INVT Flex series I/O system. It plugs onto an INVT TS600 PLC or an FK EtherCAT / Modbus TCP coupler to switch relays, contactors, valves and indicator lamps at 24 V DC, and its slim 12.5 mm body saves space in control panels.
Key Features
- 16 outputs: transistor sink outputs (active low), 0.5 A per point, 4 A per module.
- Protected: overheat, overcurrent, overvoltage and short-circuit protection, with external power check.
- Tool-free wiring: push-in plug-in terminals with colour block identification.
- Easy diagnosis: channel-level status LEDs.
- Compact: only 12.5 mm wide, longitudinal sliding connection and detachable terminal section.
- Isolated: magnetic isolation between field and logic sides.
Technical Specifications
| Brand / Series | INVT Flex series I/O system |
| Model | FL2102 |
| Ordering code | 11016-00003 |
| Type | Digital output, transistor sink type (NPN), active low |
| Channels | 16 |
| External power | 24 V DC (-15% to +20%) |
| Output voltage | 24 V +/-10% |
| Max. output frequency | 1 kHz (duty ratio 40-60%) |
| Max. load, resistive | 0.5 A per point, 4 A per module |
| Max. load, inductive | 7.2 W per point, 24 W per module |
| Max. load, lamp | 5 W per point, 18 W per module |
| Leakage current | Less than 10 uA per point |
| Switching time | OFF-ON 100 us, ON-OFF 100 us |
| Isolation | Magnetic |
| Typical power loss | 1.04 W |
| Dimensions (W x H x D) | 12.5 x 105 x 96 mm |
| Weight | 0.15 kg net |
Typical Applications
- Driving relays, contactors and solenoid valves
- Indicator lamps and buzzers on machines
- Expanding TS600 PLC or FK coupler I/O
