INVT
INVT Power Servo Cable 5M for 1500W
INVT Power Servo Cable 5M for 1500W
SKU:INVT-DAML-100-05-BF0-00
Regular price
$24.03
Regular price
$30.04
Sale price
$24.03
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle

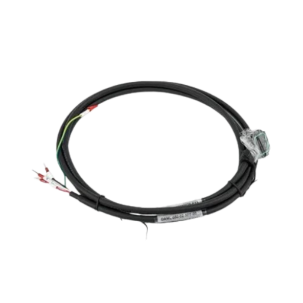

The INVT DAML-100-05-BF0-00 is an original 5 m servo motor power cable for the INVT DA180 servo system. It connects the U, V, W and PE terminals of a DA180 C-frame drive to a base-100 or base-130 IMS20A servo motor, with 1.0 mm2 conductors sized for 1-2 kW motors.
Key Features
- Original INVT: made for the DA180 basic servo system.
- Motor connector: 4-pin regular aviation plug YD28 on the motor side.
- Drive terminals: tube-type terminals for U, V, W and a fork terminal for PE.
- Colour coded: U yellow, V green, W red, PE yellow/green.
- 5 m length: enough to run from the cabinet to the machine axis.
Technical Specifications
| Brand / Series | INVT DA180 accessories |
| Model | DAML-100-05-BF0-00 |
| Type | Servo power cable |
| Conductor size | 1.0 mm2 |
| Length | 5 m |
| Motor-side connector | 4-pin regular aviation plug YD28 (B) |
| Drive-side terminals | Tube-type terminals (F), fork terminal for PE |
| Cable material | Common cable (0) |
| Lot | Standard part (00) |
| Recommended for | IMS20A-10 / IMS20A-13 motors (1-2 kW) on DA180 C-frame drives |
| Drive series | INVT DA180 |
