INVT Servo Driver 1.5KW
INVT Servo Driver 1.5KW
SKU:INVT-DA180-S7R6SG0
Regular price
$222.50
Regular price
$278.12
Sale price
$222.50
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle

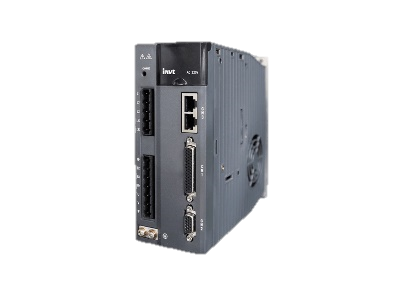

INVT DA180-S7R6SG0 servo drive by INVT. Compact 1.5 kW single-axis AC servo drive from the DA180 basic series, standard type.
- Speed response frequency up to 2.0 kHz and 3x overload capacity
- 128-segment internal position control and homing; Modbus, CANopen and EtherCAT supported across the DA180 range
- Automatic and manual notch filters (four filters, 50 Hz to 5000 Hz), low-frequency vibration control, friction torque compensation
- Online and offline load inertia identification for quick gain tuning
- Works with 17-bit and 23-bit absolute encoders
Specifications
| Model | DA180-S7R6SG0 |
| Series | INVT DA180 basic AC servo drive |
| Rated output power | 1.5 kW |
| Input | 3P 220V, 5.6 A |
| Rated output current | 7.6 A |
| Communication type | Standard (S) |
| Frame size | C |
| Built-in brake resistor | 30 ohm / 60 W |
| Min. external brake resistor | 20 ohm |
