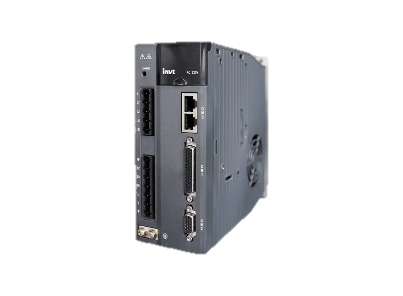

INVT DA180-S5R0SG0 servo drive by INVT. Compact 1 kW single-axis AC servo drive from the DA180 basic series, standard type.
- Speed response frequency up to 2.0 kHz and 3x overload capacity
- 128-segment internal position control and homing; Modbus, CANopen and EtherCAT supported across the DA180 range
- Automatic and manual notch filters (four filters, 50 Hz to 5000 Hz), low-frequency vibration control, friction torque compensation
- Online and offline load inertia identification for quick gain tuning
- Works with 17-bit and 23-bit absolute encoders
Specifications
| Model | DA180-S5R0SG0 |
| Series | INVT DA180 basic AC servo drive |
| Rated output power | 1 kW |
| Input | 1P 220V, 9.1 A |
| Rated output current | 5.0 A |
| Communication type | Standard (S) |
| Frame size | B |
| Built-in brake resistor | 45 ohm / 60 W |
| Min. external brake resistor | 30 ohm |
