INVT EtherCat Type; 400W 220V 2.8A Servo Drive
INVT EtherCat Type; 400W 220V 2.8A Servo Drive
SKU:INVT-DA180-S2R8NG0
Regular price
$195.80
Regular price
$244.75
Sale price
$195.80
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle

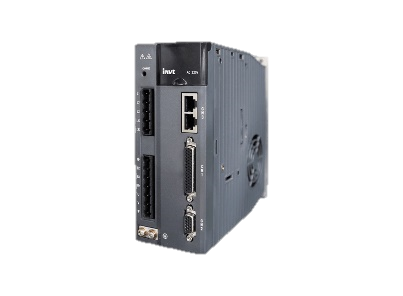

The INVT DA180-S2R8NG0 is a compact 0.4 kW single-axis AC servo drive from the DA180 basic series, EtherCAT bus type. It drives INVT IMS20A servo motors with precise position, speed and torque control, and suits machine builders and maintenance teams in Lebanese factories and workshops who need accurate, repeatable motion on an EtherCAT network driven by a PLC or motion controller.
Key Features
- Fast response: speed response frequency up to 2.0 kHz with 3x overload capacity.
- Three control modes: position, speed and torque control, with mode switching and EtherCAT mode.
- Vibration suppression: automatic and manual notch filters (four filters, 50 Hz to 5000 Hz), low-frequency vibration control and friction torque compensation.
- Quick tuning: online and offline load inertia identification for fast gain setting.
- Internal positioning: 128-segment internal position planning and four homing methods.
- Absolute encoders: works with 17-bit and 23-bit absolute encoder motors.
Technical Specifications
| Brand / Series | INVT DA180 basic AC servo drive |
| Model | DA180-S2R8NG0 |
| Rated output power | 0.4 kW |
| Input | 1-phase 220 V AC, 3.6 A rated input current |
| Input voltage range | AC 220 V (+/-15%), 47-63 Hz |
| Rated output current | 2.8 A |
| Communication type | EtherCAT bus (N) |
| Communication ports | EtherCAT, RS485 (1:n) and USB (PC software) |
| Digital I/O | 10 inputs, 4 outputs (configurable) |
| Analog inputs | 2 x 12-bit |
| Pulse input | Differential 4 Mpps or open collector 200 kpps |
| Encoder type | Absolute (17-bit / 23-bit) |
| Frame size | A |
| Dimensions (H x W x D) | 160 x 42 x 141 mm |
| Mounting (A x B) | 32 x 150 mm, M4 screws |
| Built-in brake resistor | None (external resistor if needed) |
| Min. external brake resistor | 60 ohm |
| Recommended EMI filter | INVT FLT-P04006L-B |
| Cooling | Natural cooling |
| Protection | Overvoltage, undervoltage, overcurrent, overspeed, overload, encoder fault, overheating; 10-fault record |
| Operating temperature | 0 to 45 C |
| Storage temperature | -20 to 80 C (no freezing) |
| Humidity | 90% RH max. (no condensation) |
| IP rating | IP20 (install in a cabinet) |
| Altitude | Below 1000 m |
Typical Applications
- Packaging, filling and labelling machines
- CNC routers, engraving and cutting machines
- Conveyors, indexing tables and pick-and-place axes
- Printing, textile and general automation machinery
