INVT

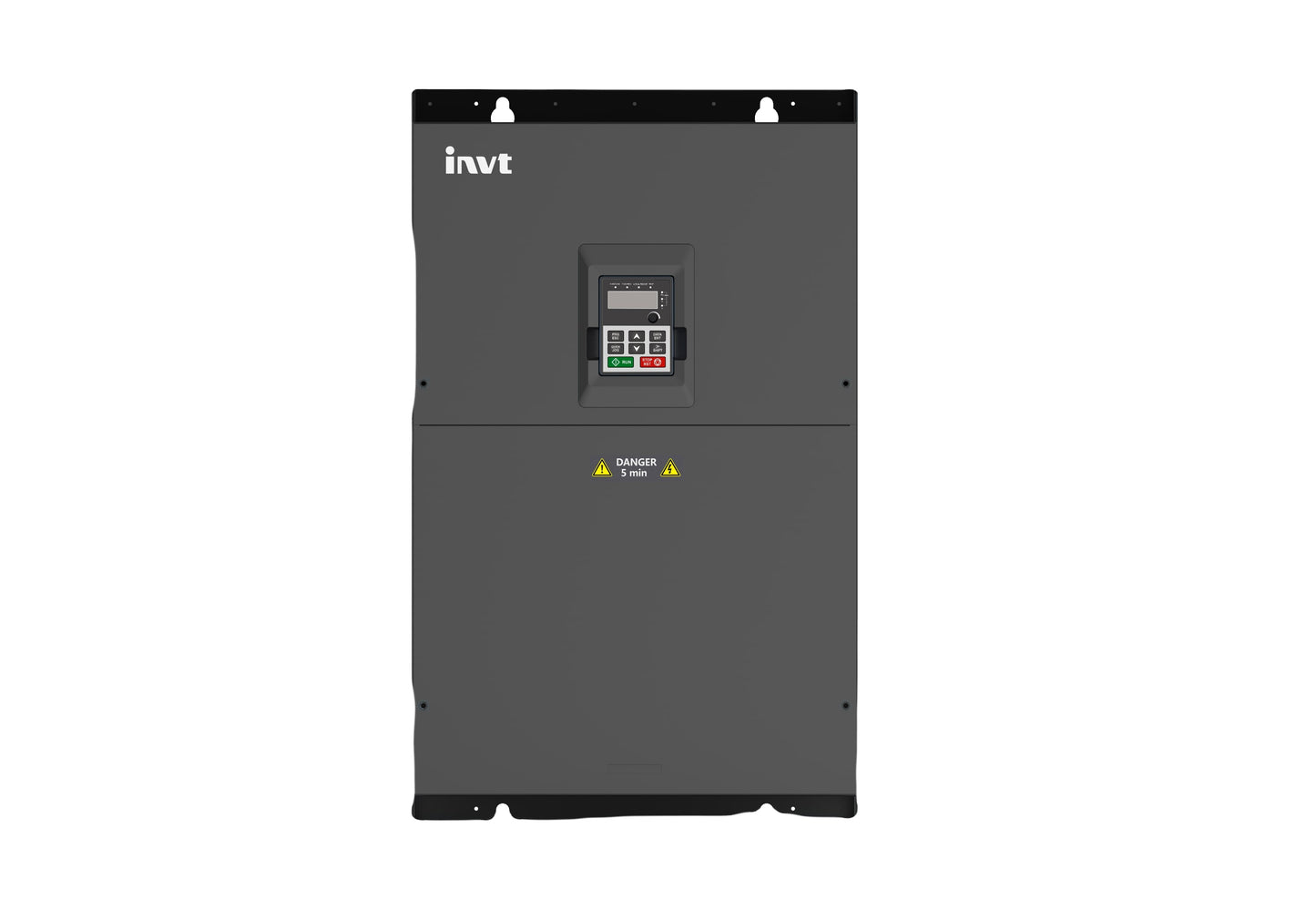

INVT Inverter 200kW, 3PH 380V
INVT Inverter 200kW, 3PH 380V
SKU:GD200-200G-4
Regular price
$3,631.50
Regular price
$4,539.37
Sale price
$3,631.50
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle
INVT Inverter 200kW, 3PH 380V by INVT. 200 kW Goodrive200A general purpose vector control drive for 3-phase 380 V motors.
- Vector control with a wide 380V (-15% to +10%) supply range
- Overload capacity 150% for 1 min (G type)
- 8 digital inputs, 2 relay outputs, 2 analog outputs, PROFIBUS and Modbus communication
- Air cooled, wall, flange or floor mounting
Specifications
| Model | GD200A-200G/220P-4 |
| Shopify SKU | GD200-200G-4 |
| Series | INVT Goodrive200A (GD200A) |
| Rated output power (G type) | 200 kW |
| Apparent power | 250.1 kVA |
| Rated output current | 380 A |
| Voltage class | 3PH 380V (-15% to +10%) |
| Overload (G type) | 150% for 1 min, 180% for 10 s, 200% for 1 s |
| Control | V/F and sensorless vector control |
| Mounting | Wall, flange and floor mountable |
| Protection | IP20 |
| Braking | Optional external braking unit |
