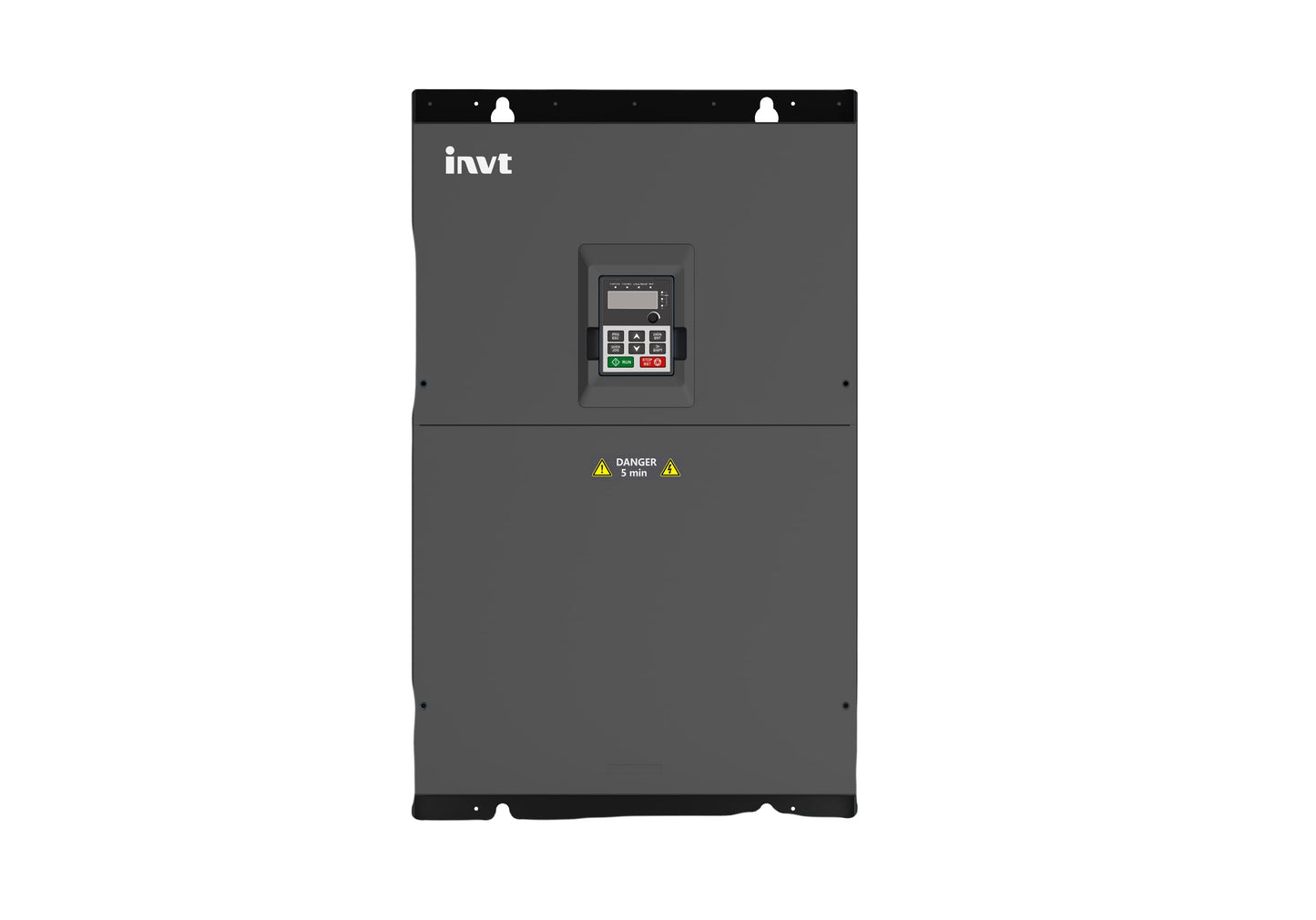

INVT Inverter 132kW, 3PH 380V by INVT. 132 kW Goodrive200A general purpose vector control drive for 3-phase 380 V motors.
- Vector control with a wide 380V (-15% to +10%) supply range
- Overload capacity 150% for 1 min (G type)
- 8 digital inputs, 2 relay outputs, 2 analog outputs, PROFIBUS and Modbus communication
- Air cooled, wall, flange or floor mounting
Specifications
| Model | GD200A-132G/160P-4 |
| Shopify SKU | GD200-132G-4 |
| Series | INVT Goodrive200A (GD200A) |
| Rated output power (G type) | 132 kW |
| Apparent power | 171.1 kVA |
| Rated output current | 260 A |
| Voltage class | 3PH 380V (-15% to +10%) |
| Overload (G type) | 150% for 1 min, 180% for 10 s, 200% for 1 s |
| Control | V/F and sensorless vector control |
| Mounting | Wall, flange and floor mountable |
| Protection | IP20 |
| Braking | Optional external braking unit |
