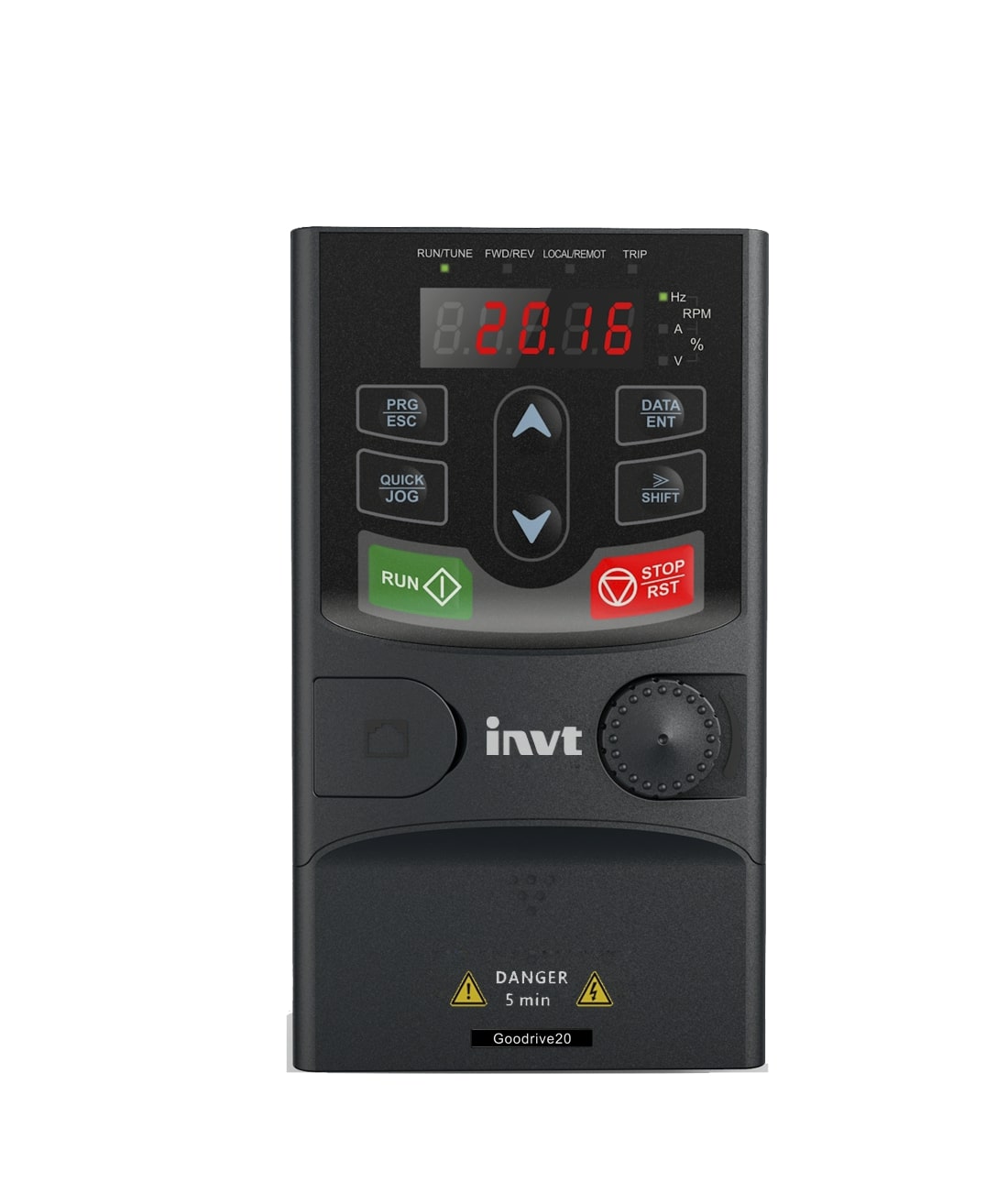

INVT GD20 1.5kW VFD — 1PH 220V In, 3PH 220V Out
INVT GD20 1.5kW VFD — 1PH 220V In, 3PH 220V Out
SKU:GD20-1R5G-S2
Regular price
$99.10
Regular price
$147.91
Sale price
$99.10
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle
INVT GD20-1R5G-S2 1.5 kW VFD by INVT. 1.5 kW Goodrive20 open loop vector control drive, 1PH 220V in, 3PH 220V out.
- Sensorless vector control with high drive and control performance
- Compact body for wall or rail mounting
- Embedded braking unit; 2 relay outputs, 2 analog outputs, Modbus communication
- Optional external LED keypad, up to 20 m from the drive
Specifications
| Model | GD20-1R5G-S2 |
| Series | INVT Goodrive20 (GD20) |
| Rated output power | 1.5 kW |
| Voltage class | 1PH 220V (-15% to +10%) input, 3PH 220V output |
| Rated input current | 15.7 A |
| Rated output current | 7.5 A |
| Load type | G: constant torque |
| Control | V/F (SVPWM) and sensorless vector control |
| Mounting | Wall and rail mountable |
| Protection | IP20 |
| Ambient temperature | -10 to 50 C, derate above 40 C |
| EMC | IEC 61800-3 C3 |
