GEYA GRT8-S1 Asymmetric Cycler Timer Relay
GEYA GRT8-S1 Asymmetric Cycler Timer Relay
SKU:GEY-GRT8-S1-W240
Regular price
$19.54
Regular price
$24.43
Sale price
$19.54
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle
GEYA GRT8-S1 Asymmetric Cycler Timer Relay by GEYA. Asymmetric cycler time relay with independent ON and OFF times, for ventilation, dehumidification, light control and circulating pumps.

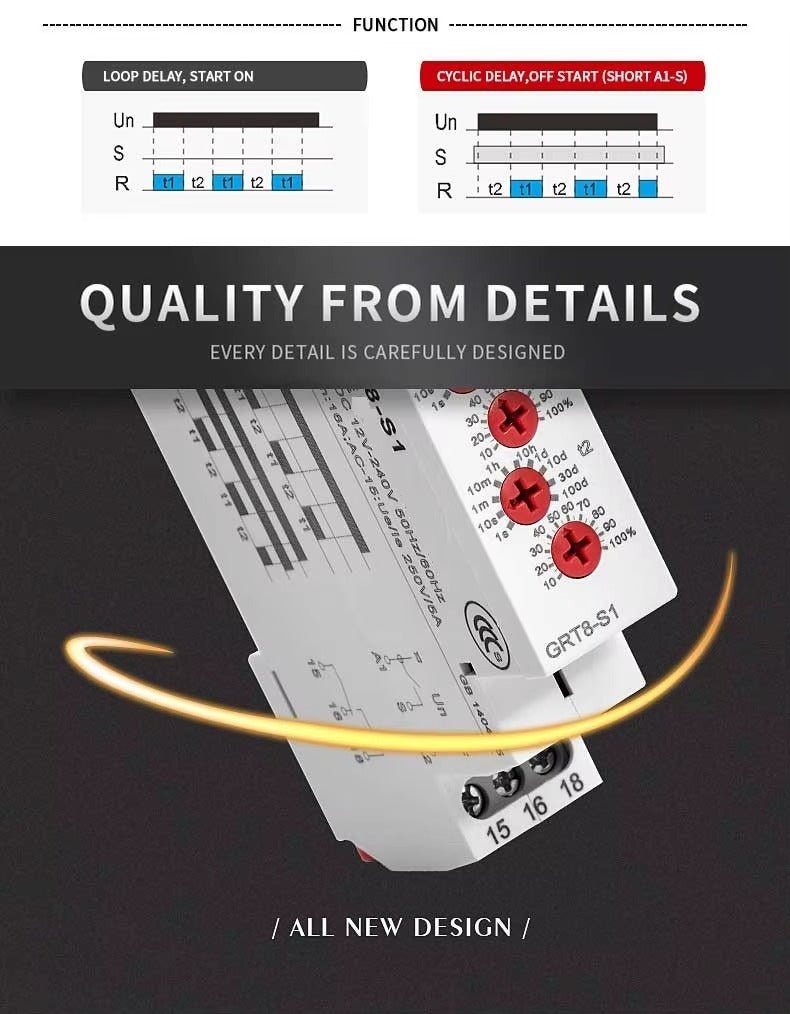

- Two functions: cycler starting with pulse or with pause (selected by an S-A1 jumper)
- Time scale 0.1 s to 100 days in 10 ranges

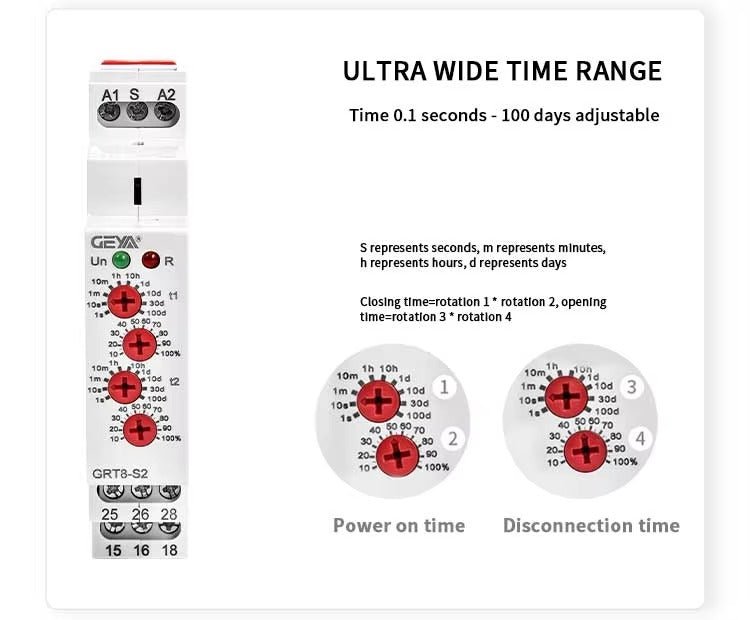

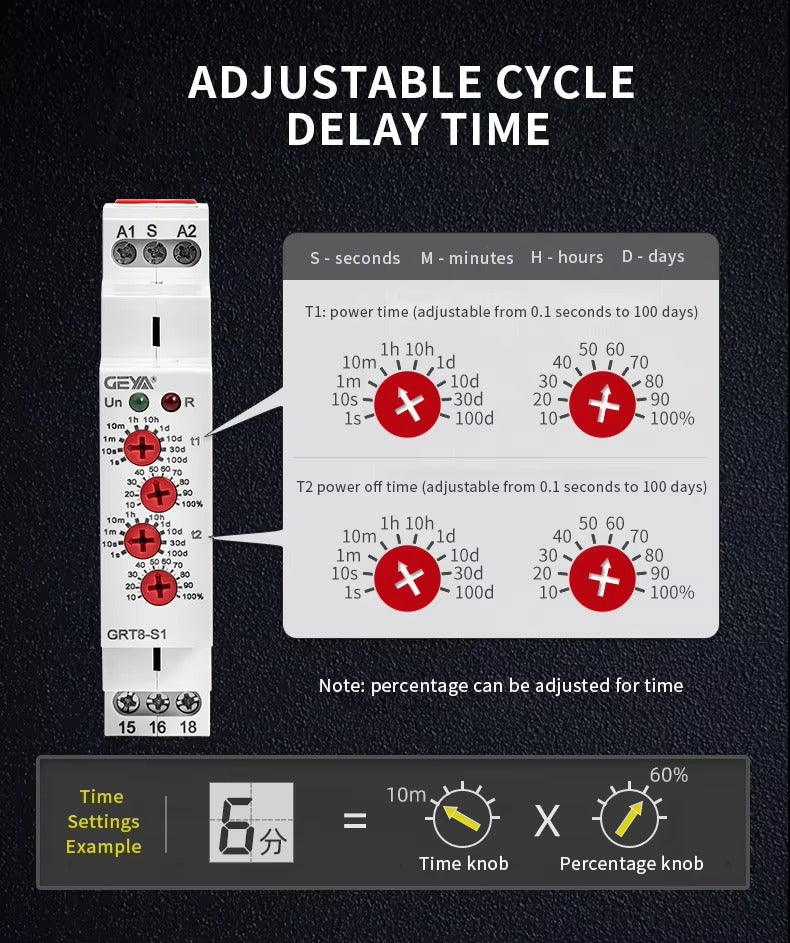

- Separate setting of both times (t1 / t2)

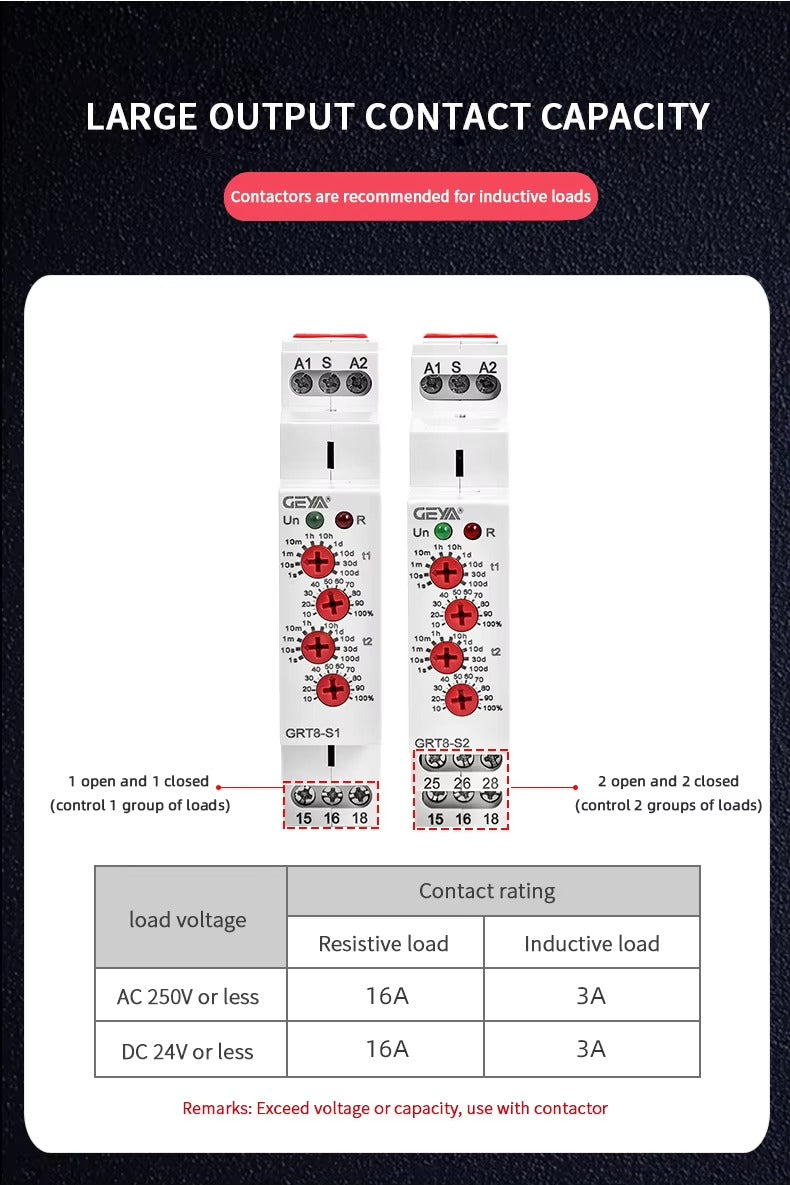

- 1 x SPDT output, 16A / AC1

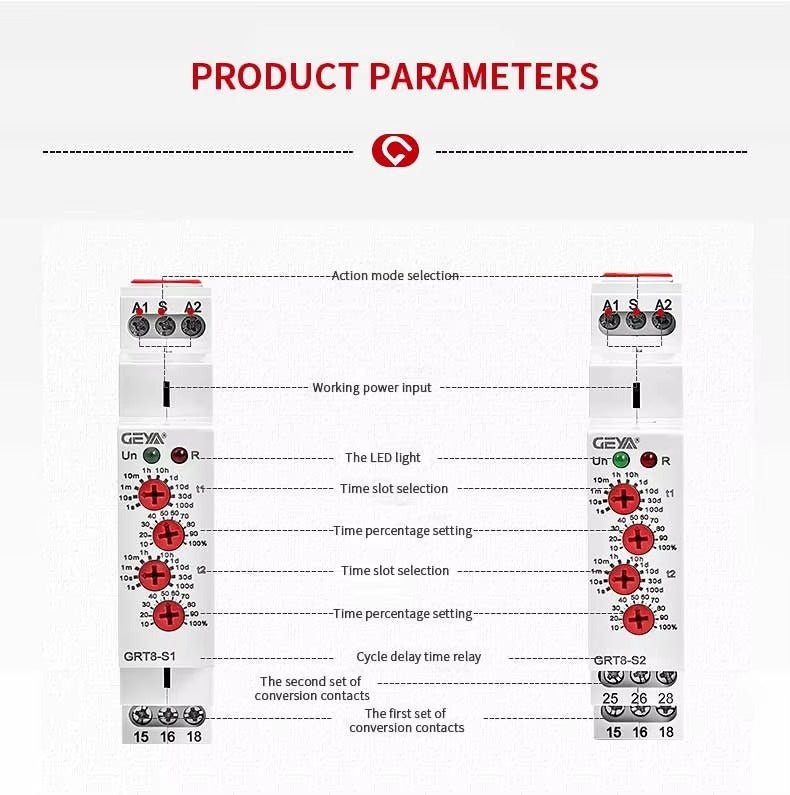

- 1-module DIN rail housing
Specifications
| Supply voltage | AC/DC 12-240V (W240) or AC 230V (A230) |
| Output | 1 x SPDT, 16A 250VAC |
| Time range | 0.1 s - 100 days |
| Mounting | 1-module, DIN rail EN/IEC 60715 |

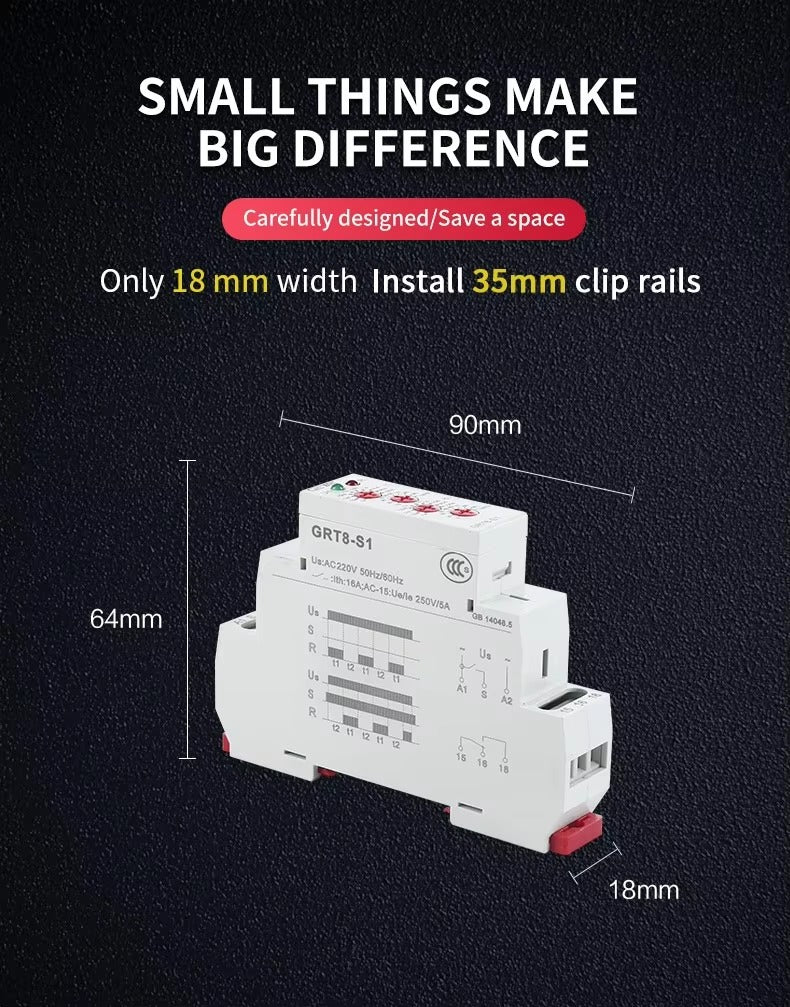

| Dimensions | 90 x 18 x 64 mm |
| Protection | IP40 front panel / IP20 terminals |
| Operating temperature | -20 to +55 C |
