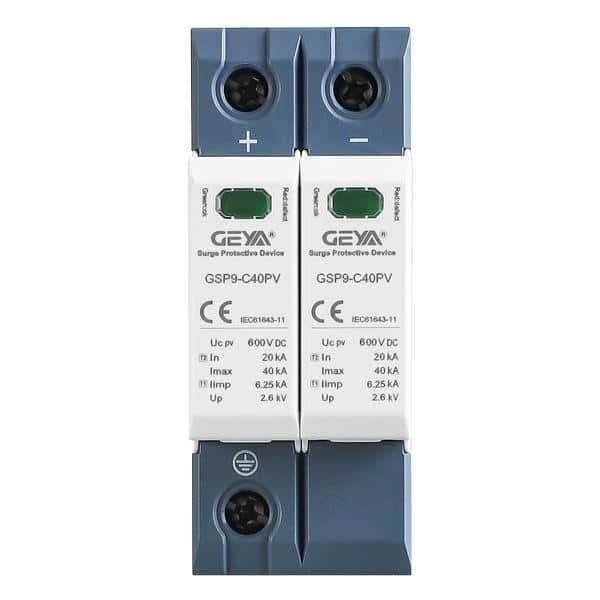

• GEYA GSP9-C40PV 2P DC surge protection device, front view
  • GEYA GSP9-C40PV 2P DC surge protection device

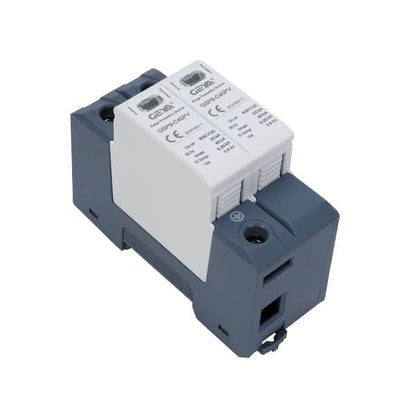

  • GEYA GSP9-C40PV 2P DC surge protection device, side view
1 3

GEYA

GEYA GSP9-C40PV 2P 1000V DC Surge Protection Device (SPD)

GEYA GSP9-C40PV 2P 1000V DC Surge Protection Device (SPD)

GEY-GSP9-C40PV

$15.02
$18.77 $15.02
Sale Sold out

Weight: 0.27 kg

Packed 50 per carton, 40 × 22 × 23 cm

الوزن: 0.27 kg

Shipping calculated at checkout.
  • Cash on deliveryPay when it arrives
  • Delivery across Lebanon2–4 business days
  • 5-day returnsUnused, in original packaging
  • Trusted since 1984Azar Group S.A.L., Zahle

GEYA GSP9-C40PV 2P 1000V DC Surge Protection Device (SPD) by GEYA. Type 2 DC surge protective device for photovoltaic systems: solar panels, combiner boxes and inverters.

  • High-energy MOV protection elements
  • Pluggable module with thermal disconnection
  • Status window and remote signalling contact
  • Certified TUV, CE, CQC; IEC 61643-31
  • 35 mm DIN rail mounting

Specifications

Type T2 / Class II, 2P
Max. continuous voltage 1000V DC
Nominal discharge current In 20 kA (8/20 us)
Max. discharge current Imax 40 kA
Protection level Up 3.5 kV
Response time 25 ns

Download Datasheet (PDF)
