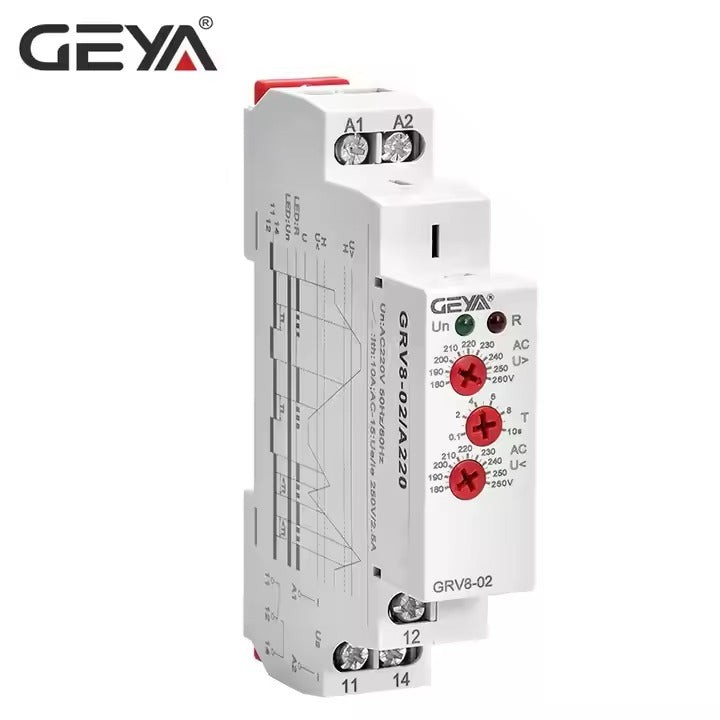

GEYA GRV8-02 Single Phase Voltage Monitoring Relay
GEYA GRV8-02 Single Phase Voltage Monitoring Relay
SKU:GEY-GRV8-02-A220
Regular price
$13.09
Regular price
$16.36
Sale price
$13.09
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle
GEYA GRV8-02 Single Phase Voltage Monitoring Relay by GEYA. Single-phase voltage monitoring relay that protects equipment and motors against over-voltage and under-voltage and can switch normal/emergency supplies.
- True RMS measurement of its own supply voltage

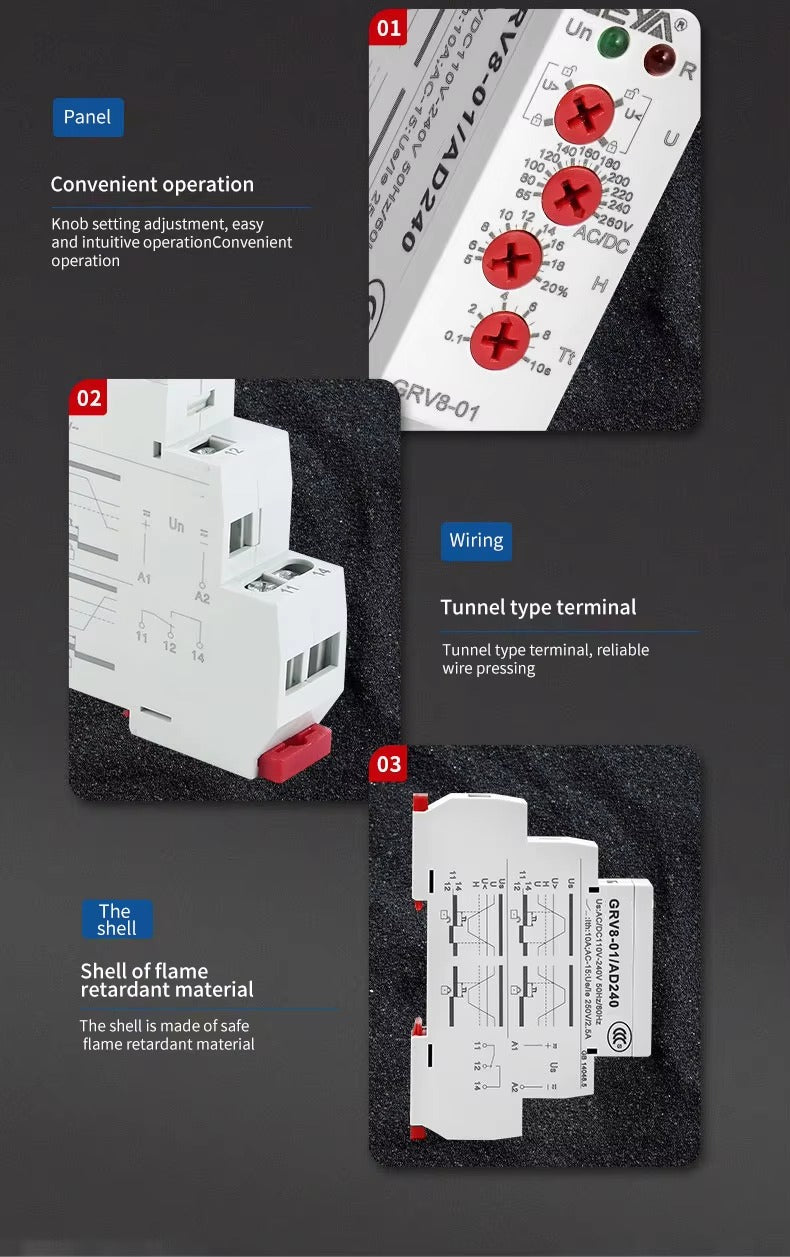

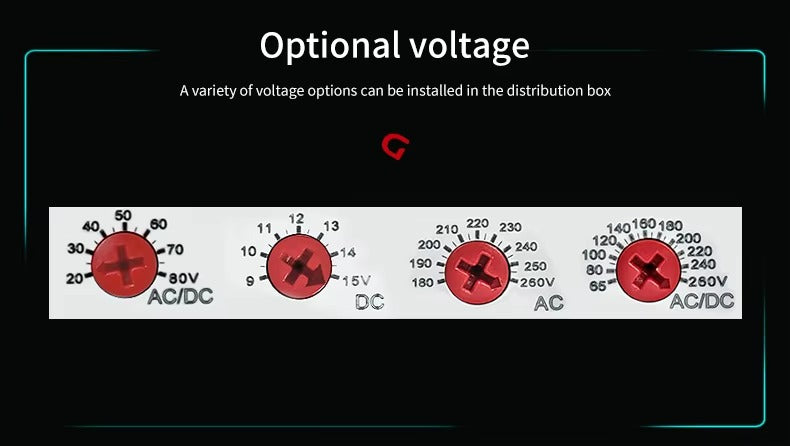

- Operating mode selected by knob
- Measurement accuracy better than 1%
- Adjustable delay 0.1 s to 10 s

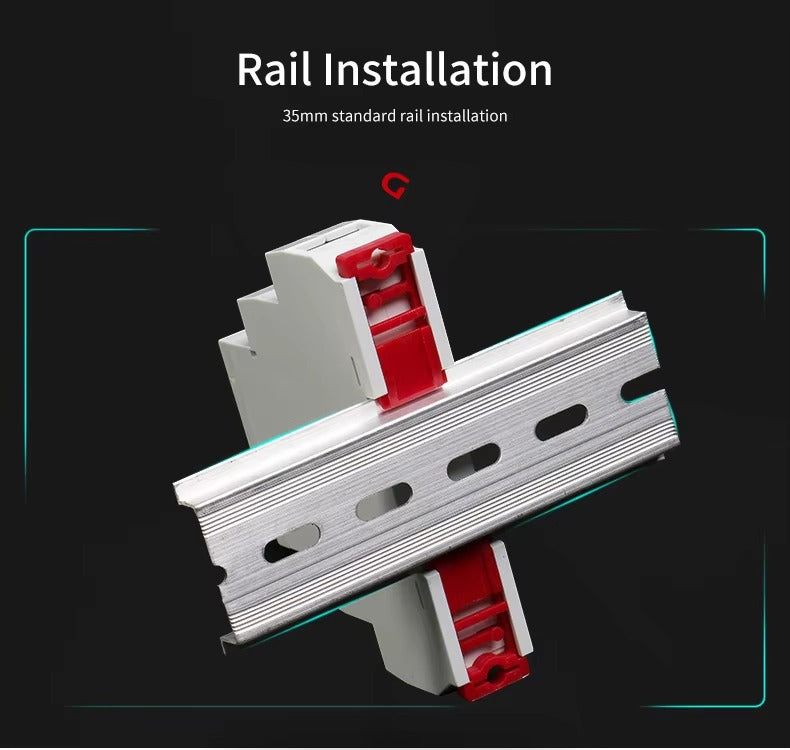

- 1-module DIN rail housing

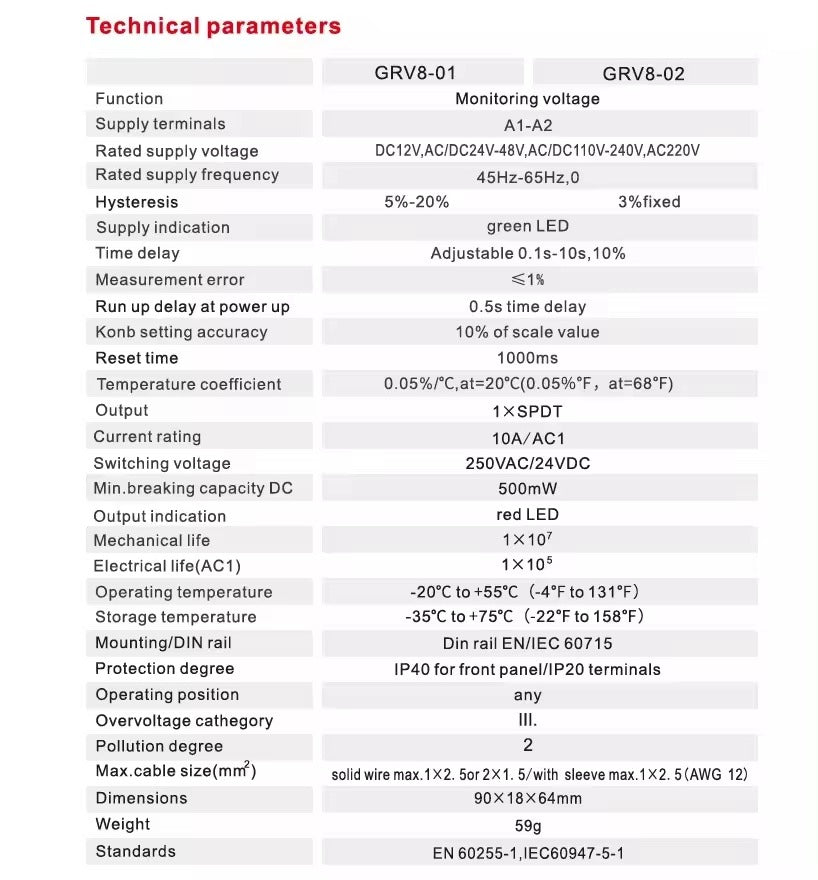

Specifications
| Supply voltage | AC/DC 18-270V |
| Output | 1 x SPDT, 10A 250VAC |
| Frequency | 45-65 Hz |
| Hysteresis | 3% fixed |
| Mounting | 1-module, DIN rail EN/IEC 60715 |

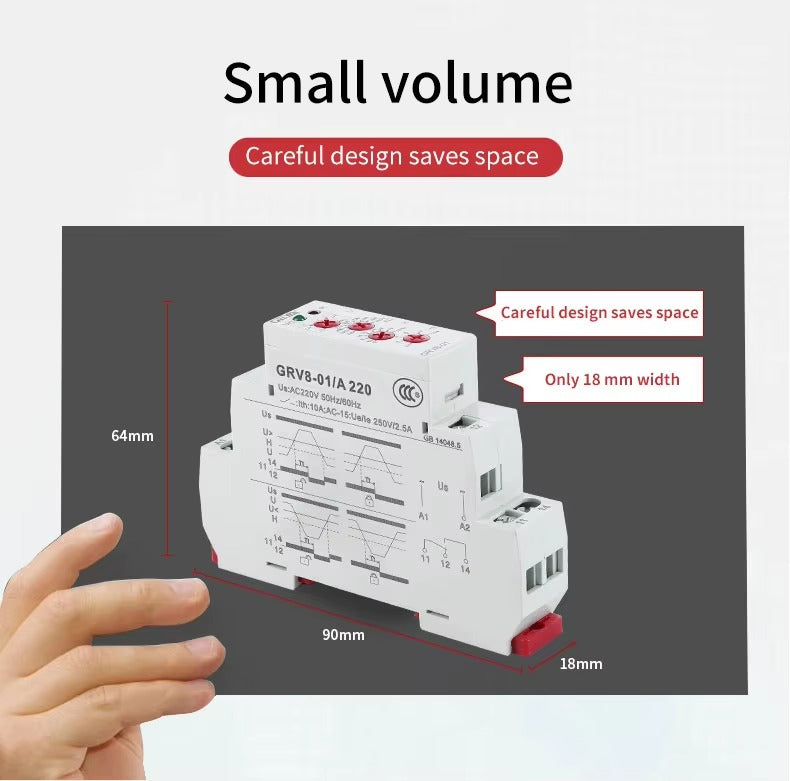

| Dimensions | 90 x 18 x 64 mm |
| Protection | IP40 front panel / IP20 terminals |
| Operating temperature | -20 to +55 C |
