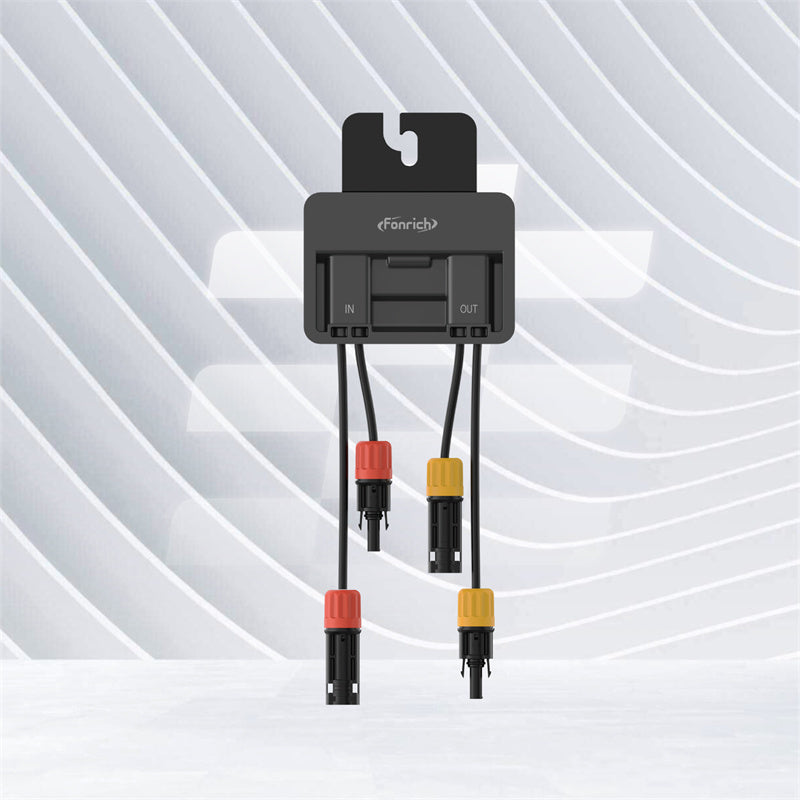

Fonrich FR-PVMB-C140J Solar Power Optimizer 1400W — Module-Level MLPE, 1500V

The Fonrich FR-PVMB-C140J is a 1400 W Smart Power Optimizer (Thermal Plus version) that maximises energy yield by removing the losses shading and module mismatch cause. Its upgraded heat sink keeps efficiency and service life high in hot climates, and every optimizer also performs module-level rapid shutdown.

Key features

• Module-level MPPT that limits shading and mismatch losses
• Advanced heat sink for superior thermal management
• Automatic or manual module-level rapid shutdown
• Remote monitoring through the SafeSolar app
• PLC communication over distances up to 1,600 m
• One-to-one and one-to-two configurations available
• Compliant with NEC 2017 / 2020 / 2023 and UL 3741

Specifications

• Model: FR-PVMB-C140J (Thermal Plus, 1400 W)
• Supported PV channels / modules: 1 / 2
• Max. input power: 1400 W
• Operating voltage range: 17–105 Vdc
• Max. system Voc: 1500 Vdc
• Installation: photovoltaic rail
• Dimensions: 120 × 132 × 45 mm
• Weight: 1000 g (with cables)
