SUNTREE Surge Protective Device DC 3P 1500V 20-40KA T2
SUNTREE Surge Protective Device DC 3P 1500V 20-40KA T2
SKU:SUNT-SUP2-PV-3P-1500VDC
Regular price
$58.96
Regular price
$73.70
Sale price
$58.96
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle

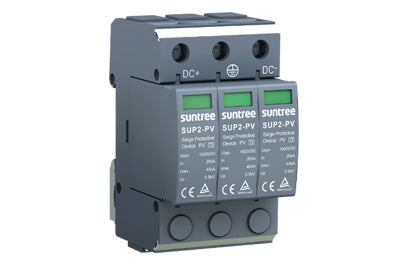

The Suntree SUP2-PV is a 3-pole Type 2 DC surge protective device for solar PV systems up to 1500 V DC. It sits in the PV combiner box or at the inverter DC input and diverts induced lightning surges to earth before they can damage panels and inverters.
Key Features
- Type 2 for PV: 1500 V DC rating with Imax 40 kA (8/20 us).
- Plug-in modules: easy module replacement with plug-in clips; single chip voltage up to 750 V.
- Fault indication: green and red flags show module status; optional remote contact signalling.
- DC arc safety: combined disconnection and short-circuiting device with safe isolation, flash barrier against arc spread.
- Cool running: design dissipates heat quickly and lowers service temperature.
Technical Specifications
| Brand / Model | Suntree SUP2-PV |
| Poles | 3P |
| Max. continuous voltage Uc | 1500 V DC |
| Max. discharge current Imax (8/20 us) | 40 kA |
| Voltage protection level Up | 5.0 kV |
| Leakage current at 0.75 U1mA | 20 uA or less |
| Service temperature | -40 to +70 °C |
| Relative humidity | 95% or less (25 °C) |
| Mounting | 35 mm DIN rail |
| Protection degree | IP20 |
| Status indication | Green normal / red failed |
| Installation note | keep at least 10 mm insulated distance from grounded parts in the housing |
Typical Applications
- PV combiner boxes up to 1500 V DC
- Inverter DC input protection
- Commercial and utility solar plants
