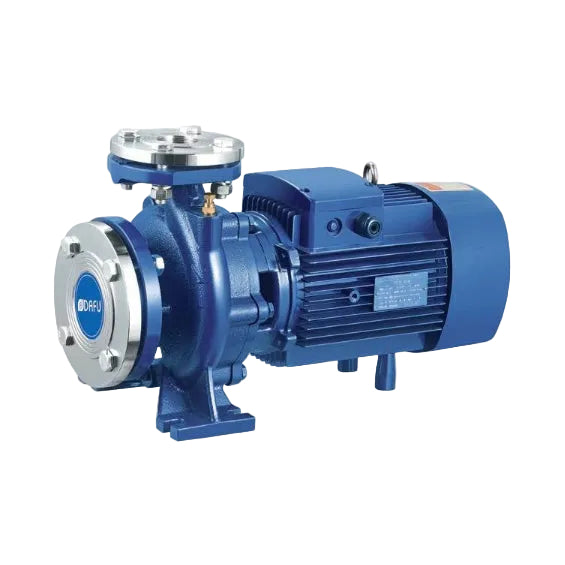

DAFU DST 40-200/55 Standard Centrifugal Pump - 5.5kW 7.5HP 380V

The DAFU DST 40-200/55 is a heavy-duty 200mm impeller-class centrifugal pump built for high-head industrial applications. Powered by a 5.5kW (7.5HP) 380V motor, this pump delivers exceptional pressure up to 46 meters head, making it perfect for high-rise water boosting, extensive agricultural irrigation, and municipal infrastructure.

Key Features

• High-Head Engineering: Generates up to 46 meters of total dynamic head for long-distance and vertical pumping.
• 7.5HP Powerhouse Motor: Rated at 5.5kW (10.6A) for heavy-duty industrial and commercial duty cycles.
• DN 65x40 Standard Flanges: 65mm suction and 40mm discharge ports match standard industrial piping setups.
• Rugged & Efficient: Designed to reduce thermal stress and mechanical wear during extended operations.

Technical Specifications
