Astro PV Solar Cable 6 mm² DC (H1Z2Z2-K) 1.5kV - 100 Yard Roll (92 m) or Per Meter
Astro PV Solar Cable 6 mm² DC (H1Z2Z2-K) 1.5kV - 100 Yard Roll (92 m) or Per Meter
SKU:AST-APC-DC-6-BLACK-ROLL
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle

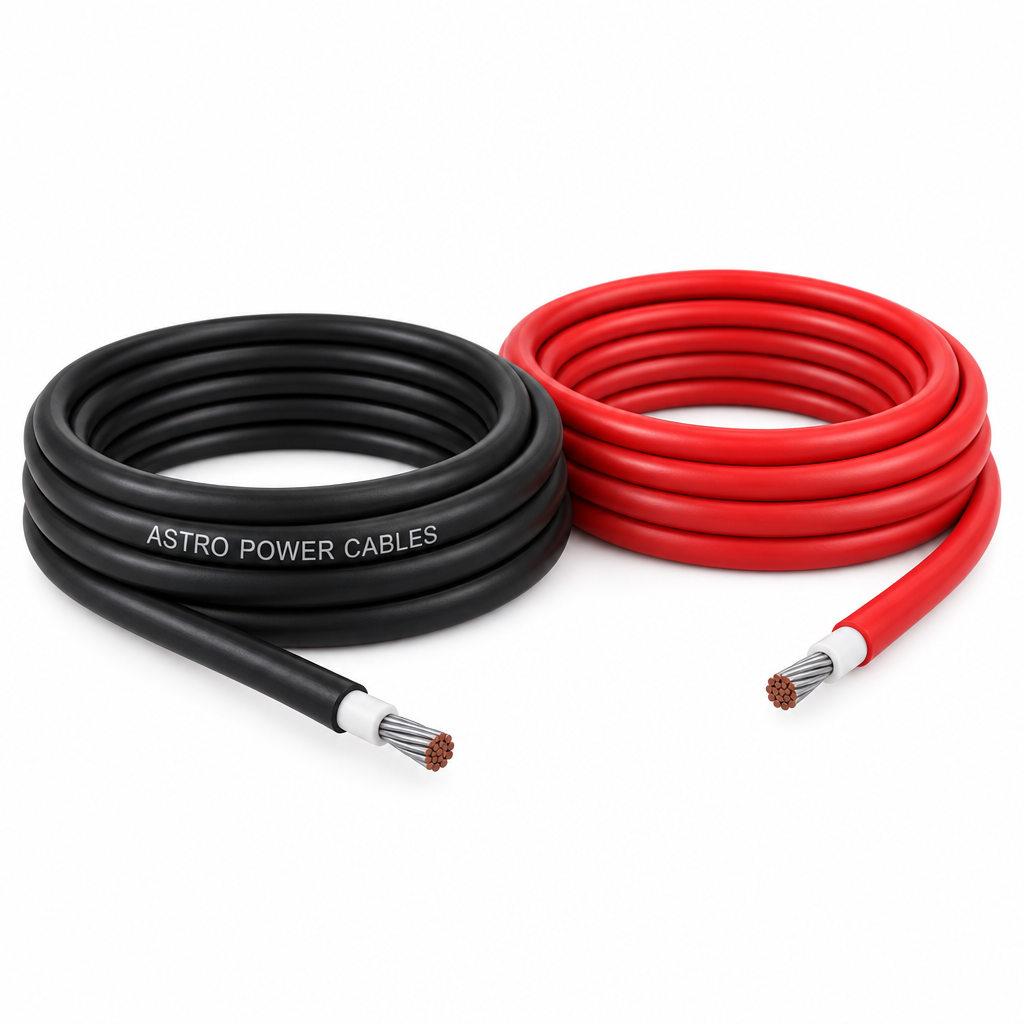

Astro PV solar cable 6 mm² for DC wiring (Astro type APC-6mm² DC, H1Z2Z2-K). Single-core cable for connecting solar panels to each other and the panel strings to the DC/AC inverter, in home and commercial PV systems up to 1,800 V DC to ground. Made by Astro Power Cables in the Zahle industrial city.
Per meter: 1.45 USD after VAT (1.31 USD + 11% VAT). Full roll of 100 yards (92 m): 133.40 USD after VAT (120.18 USD + 11% VAT). Choose "Full roll" for a whole roll, or "Per meter" and set the quantity to the number of meters you need.
- Round flexible tinned copper conductor, class 5 (84 × 0.29 mm strands)
- XLHF insulation and halogen-free LSHF outer sheath, rated 90 °C
- Rated voltage AC 1.0/1.0 kV, DC 1.5/1.5 kV (1.8 kV max)
- Flame retardant to IEC 60332-1-2
- Max conductor temperature 120 °C in service, 250 °C short-circuit
- Colours: black, red or blue, so plus and minus runs are easy to tell apart
Specifications
| Astro type | APC-6mm² DC (PV cable H1Z2Z2-K) |
| Cross-section | 1 × 6 mm² |
| Conductor | Tinned copper, class 5 flexible (BS EN 60228 / IEC 60228) |
| Insulation / sheath | XLHF 0.7 mm / LSHF 0.8 mm (nominal) |
| Overall diameter | 6.3 mm (datasheet), 7.09 mm measured, limit 7.4 mm |
| Max DC resistance at 20 °C | 3.39 Ω/km (3.05 Ω/km measured) |
| Rated voltage | AC 1.0/1.0 kV, DC 1.5/1.5 kV |
| Operating temperature | -25 to +90 °C; min. installation temperature 5 °C |
| Minimum bending radius | 5 × overall diameter (31.5 mm) |
| Max pulling tension | 0.3 kN |
| Weight | About 70 kg/km |
| Standards | BS EN 50618, IEC 62930, BS EN 60228, IEC 60811 |
| Sold as | Rolls of 100 yards (92 m), or cut per meter |
Tested
Batch PO7338-300925-13 was type-tested on 14 Nov 2025 by Astro's ISO/IEC 17025 accredited laboratory, with a Bureau Veritas inspection stamp, to BS EN 50618, IEC 60228 and IEC 60811. Measured conductor resistance was 3.05 Ω/km against a 3.39 Ω/km limit, and the single-cable flame test charred 180 mm against a 540 mm limit. The report also covers the 6.5 kV AC voltage test, insulation resistance, tensile strength, ageing, thermal shock and hot set.
