VEM Solenoid Valve G3/4" AC220V EPDM Sealing 510 Coil
VEM Solenoid Valve G3/4" AC220V EPDM Sealing 510 Coil
SKU:VEM-ZW-20NE
Regular price
$41.79
Regular price
$52.24
Sale price
$41.79
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle

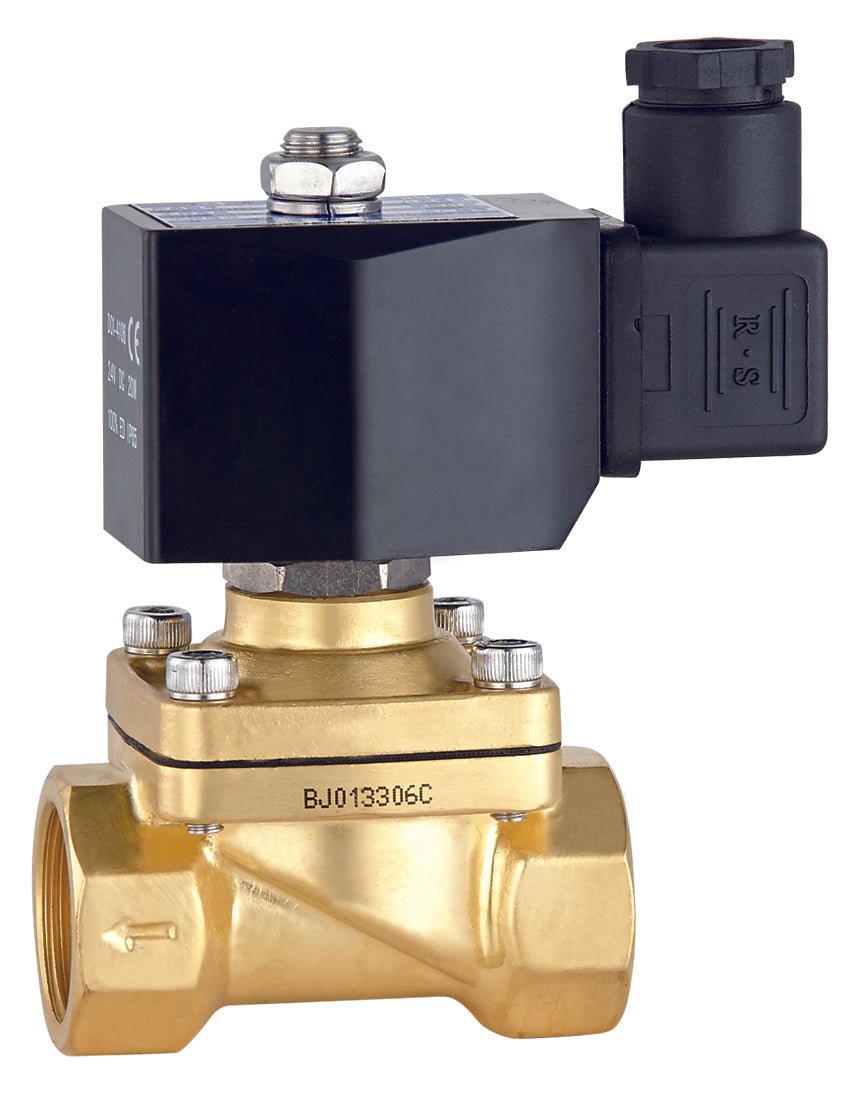

The V.E.M. ZW-20N is a 2-way semi-direct acting solenoid valve with a G3/4" thread, an AC220V plastic coil and EPDM seals. It opens and closes a water or liquid line electrically, so it is used on water tanks and pumps, irrigation and garden lines, water heaters, filtration units and machines. The semi-direct design lets it work from 0 bar, so it also switches low-pressure gravity tank lines common in Lebanese buildings.
Key Features
- Semi-direct acting: works from 0 bar up to 10 bar on AC220V.
- EPDM seals: rated from -20 °C to 130 °C, suited to hot and cold water.
- G3/4" thread: 20 mm orifice with a flow coefficient Cv 7.6.
- Sealed coil: plastic coil with an IP65 terminal.
- Normally closed: the valve stays shut until the coil is powered.
Technical Specifications
| Brand | V.E.M. |
| Model | ZW-20N (EPDM seal) |
| Code | VEM-ZW-20NE |
| Type | 2-way, semi-direct acting |
| Function | Normally closed (NC) |
| Connection | G3/4" thread |
| Orifice | 20 mm |
| Cv | 7.6 |
| Working pressure | 0 to 10 bar (AC220V) |
| Coil voltage | AC220V 50/60 Hz |
| Coil power | 20 VA |
| Seal | EPDM, -20 °C to 130 °C |
| Coil terminal | IP65 |
| Dimensions (A x B x C) | 67 x 50 x 107 mm |
Typical Applications
- Water tanks, pumps and booster sets
- Irrigation and garden lines
- Water heaters and hot-water lines
- Filtration units and machines
