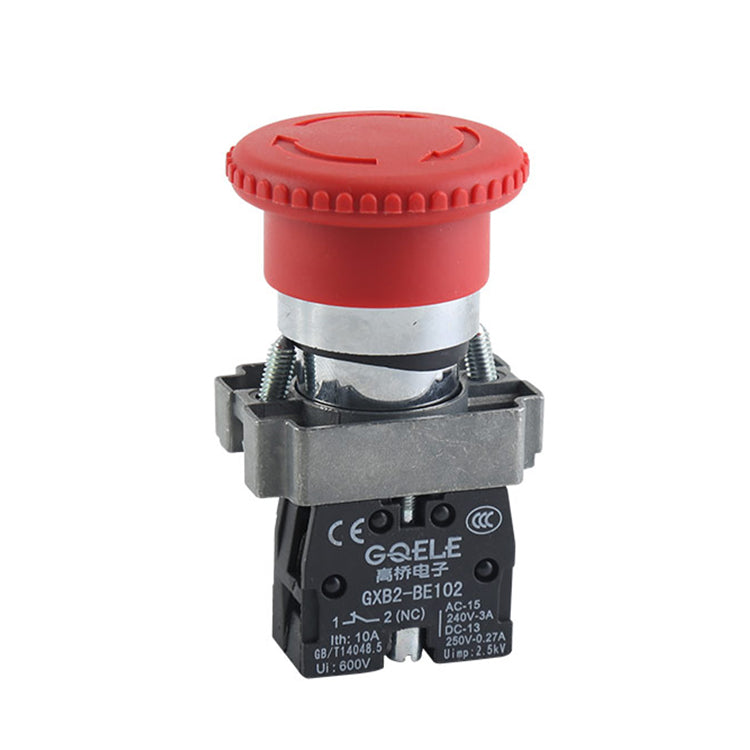

Product Name : Emergency Stop Push Button
Head Size : 40mm
Head Shape : Mushroom
Head Color : Red
Other Color Of The Head : Black
Symbols : Red Arrows
Action Of The Head : Twist Release
Contact Pattern : 1NC
Material : Metal
Certification : CE
Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, lifts, lawn mowers

① Push Button Code

②BS5: Metal Emergency Stop Push Button ( Twist Release, φ40）

③ Head Color : 2- Black ; 4- Red

④Contact Type : 1-1NO; 2-1NC; 3-2NO; 4-2NC ; 5-1NO+1NC

MAIN TECHNICAL DATA

◒ Rated Insulation Voltage : 600V

◒ Rated Thermal Current : 10A

◒ Switch Rating:  AC-15   Ue : 380V/250V, Ie=4.5A

                                DC-13   Ue : 220V/110V, Ie=0.6A

◒ Contact Resistance : ≤50 mA

◒ Recommended Torque : 0.9 Nm

◒ Mechanical Life Of Push Button : ≥1000000 times

   Selector button ≥500000 times,

   Emergency push button≥50000 times

◒ Electrical Life : ≥1000000 times

◒Limit Voltage(lamp):0.8Ue≤U≤1.15Ue

WORKING ENVIRONMENT

◐ Working Environment Temperature : -25°C ~ +70°C

◐ Storage Temperature : -40°C ~ +70°C

◐ Class Of Pollution : 3 level

◐ Protection Grade : IP40/IP65/IP66

◐ Limit Height : ≤2000M

◐ Standard : EN 60947-1,GB14048.5

PARAMETRIC DIAGRAM
