INVT Servo Motor 17 Bits Single-Turn Magnetic 200W
INVT Servo Motor 17 Bits Single-Turn Magnetic 200W
SKU:INVT-IMS20A-06M20B30C-2-M3-E
Regular price
$77.87
Regular price
$97.34
Sale price
$77.87
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle

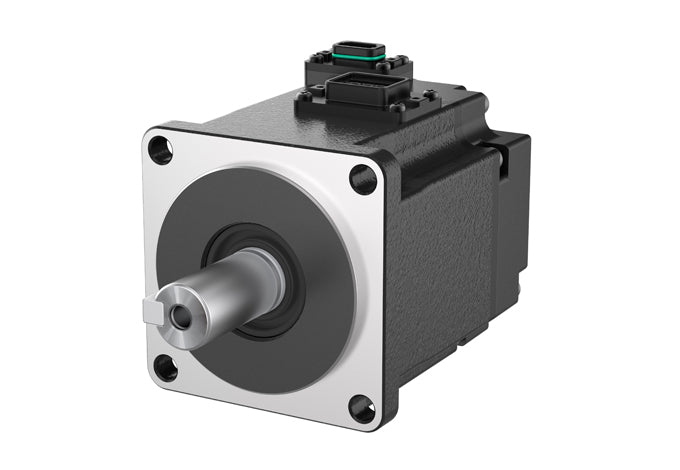

The INVT IMS20A-06M20B30C-2-M3-E is a compact 200 W, 220 V AC servo motor with a 60 mm flange and a 17-bit single-turn magnetic encoder. With an INVT DA180 drive it is a good fit for light axes such as labelling heads, small feeders and positioning tables.
Key Features
- 200 W power: 0.64 Nm rated torque at 3000 rpm, up to 1.92 Nm peak and 6000 rpm maximum.
- Precise feedback: 17-bit single-turn magnetic encoder for accurate positioning.
- Compact size: 60 mm flange and 77 mm body length, about 0.9 kg.
- Matched to DA180: designed for the INVT DA180 basic AC servo drive with matching power and encoder cables.
- Industrial build: Class F (155 C) insulation and IP54 protection; IP65 available on request from INVT.
Technical Specifications
| Brand / Series | INVT IMS20A servo motor |
| Model | IMS20A-06M20B30C-2-M3-E |
| Rated power | 200 W |
| Rated voltage | 220 V |
| Rated current | 1.8 A |
| Max. transient current | 5.4 A |
| Rated torque | 0.64 Nm |
| Max. transient torque | 1.92 Nm |
| Rated speed | 3000 rpm |
| Max. speed | 6000 rpm |
| Rotor inertia | 0.32 kg.cm2 |
| Encoder | 17-bit single-turn magnetic |
| Flange size | 60 mm |
| Shaft diameter | 14 mm (h6), keyed |
| Motor length (no brake) | 77 mm |
| Brake | None (oil seal fitted) |
| Weight | 0.9 kg |
| Insulation class | Class F (155 C) |
| Protection | IP54 (IP65 can be customized) |
| Ambient conditions | -20 to +40 C (non-frozen), 20-80% RH (no condensation) |
| Matching drive | INVT DA180 basic AC servo drive |
Typical Applications
- CNC routers, cutting and engraving machines
- Packaging, labelling and feeding machines
- Conveyors and indexing tables
- Automation retrofits in workshops
