INVT Screen 7" Resolution 800X480 RS232 + RS485/422 + RS485 12-24V With Ethernet
INVT Screen 7" Resolution 800X480 RS232 + RS485/422 + RS485 12-24V With Ethernet
SKU:INVT-VS-070QS
Regular price
$131.27
Regular price
$164.09
Sale price
$131.27
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle

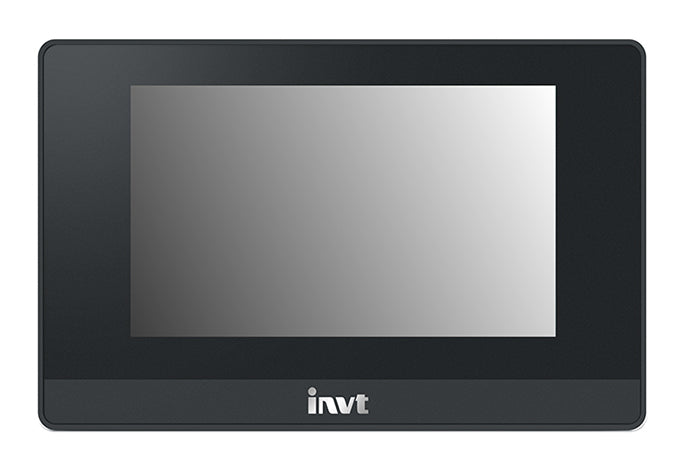

The INVT VS-070QS is a 7-inch colour touch screen HMI with three serial ports and an Ethernet port. It gives operators a clear graphical panel to run and monitor PLC-controlled machines, pumps and process equipment, and fits standard control cabinet doors used across Lebanese industry.
Key Features
- Bright 7-inch display: 800 x 480 pixels, 24-bit colour and 450 cd/m2 LED backlight.
- Ethernet plus three serial ports: connects to PLCs and drives over RS232, RS485/422, RS485 and Ethernet at the same time.
- Fast processor: dual-core Cortex-A7 1 GHz industrial CPU for smooth screens and alarms.
- Tough front panel: IP65 front, -20 to 55 C operation, CE and FCC certified.
- Simple configuration: programmed with the INVT HMITOOL software; USB Host for U-disk storage.
Technical Specifications
| Brand / Series | INVT VS-Q series HMI |
| Model | VS-070QS |
| Display size | 7 inch |
| Resolution | 800 x 480 |
| Colour depth | 24-bit |
| Brightness | 450 cd/m2 |
| Backlight | LED, 20,000 hours life |
| Touch panel | 4-wire high-accuracy resistive |
| CPU | Cortex-A7 1 GHz dual core |
| Memory / storage | 128 MB DDR3 / 128 MB flash |
| USB | 1 x USB Host, 1 x USB Client |
| Serial ports | COM1 RS232, COM2 RS485/422, COM3 RS485 |
| Ethernet | 1 port |
| Power supply | 12-24 V DC (+/-15%) |
| Rated power | 4 W |
| Operating temperature | -20 to 55 C |
| Humidity | 5-95% RH, non-condensing |
| Protection | IP65 (front panel) |
| Certification | CE (EN55032, EN55035), FCC Class A |
| Dimensions (W x H x D) | 203 x 145 x 35 mm |
| Panel cut-out | 192 x 138 mm |
| Weight | 523 g |
| Configuration software | INVT HMITOOL |
Typical Applications
- Operator panels for PLC-controlled machines
- Pump, HVAC and water treatment control panels
- Production line monitoring
- Retrofits of older push-button panels
