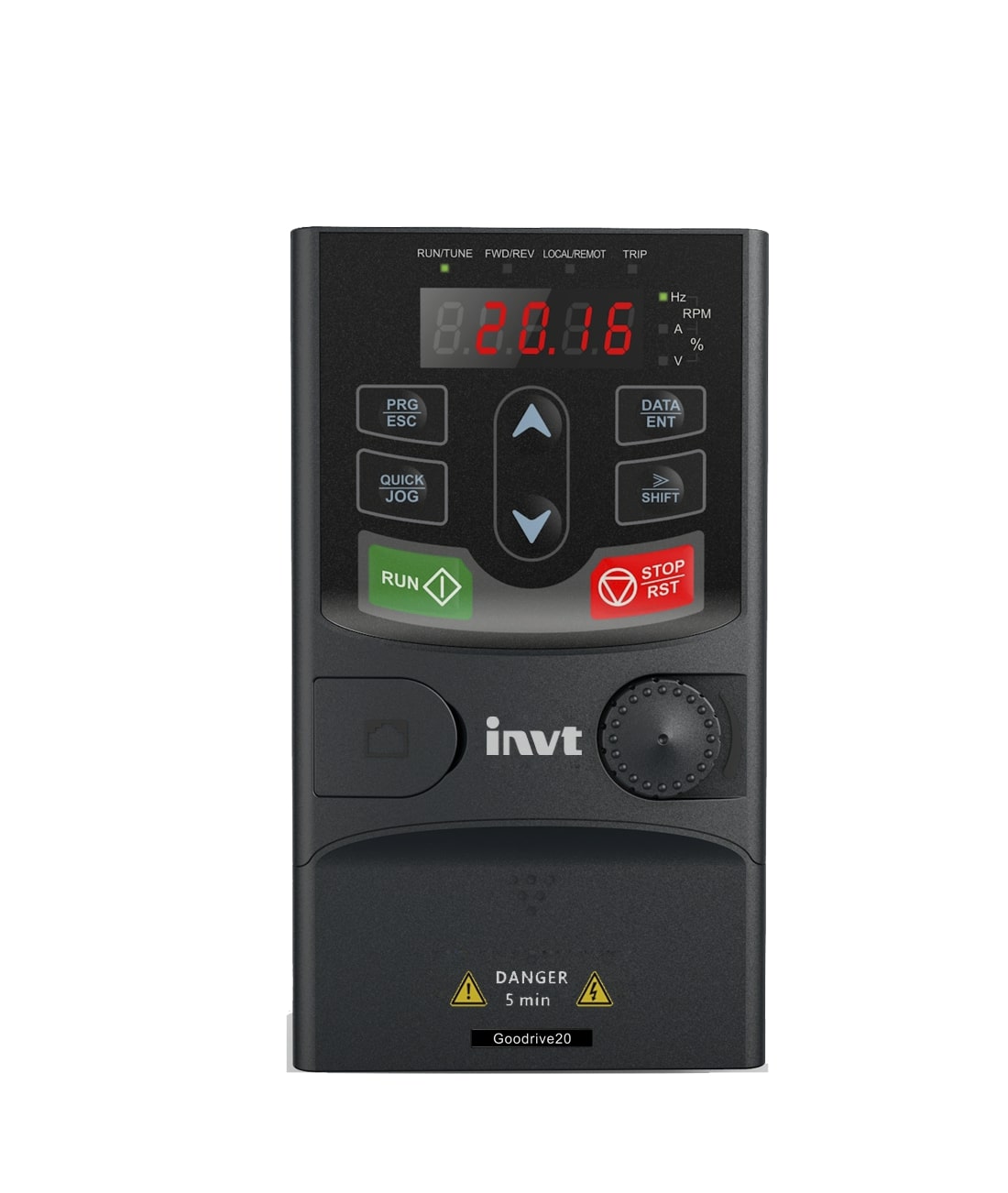

INVT GD20 2.2kW VFD — 3PH 380V
INVT GD20 2.2kW VFD — 3PH 380V
SKU:GD20-2R2G-4
Regular price
$112.31
Regular price
$167.63
Sale price
$112.31
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle
INVT GD20-2R2G-4 2.2 kW VFD by INVT. 2.2 kW Goodrive20 open loop vector control drive, 3PH 380V.
- Sensorless vector control with high drive and control performance
- Compact body for wall or rail mounting
- Embedded braking unit; 2 relay outputs, 2 analog outputs, Modbus communication
- Optional external LED keypad, up to 20 m from the drive
Specifications
| Model | GD20-2R2G-4 |
| Series | INVT Goodrive20 (GD20) |
| Rated output power | 2.2 kW |
| Voltage class | 3PH 380V (-15% to +10%) |
| Rated input current | 5.8 A |
| Rated output current | 5.5 A |
| Load type | G: constant torque |
| Control | V/F (SVPWM) and sensorless vector control |
| Mounting | Wall and rail mountable |
| Protection | IP20 |
| Ambient temperature | -10 to 50 C, derate above 40 C |
| EMC | IEC 61800-3 C3 |
