GEYA GRV8-03 3 Phase Voltage Relay
GEYA GRV8-03 3 Phase Voltage Relay
SKU:GEY-GRV8-03-M265
Regular price
$9.92
Regular price
$12.40
Sale price
$9.92
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle

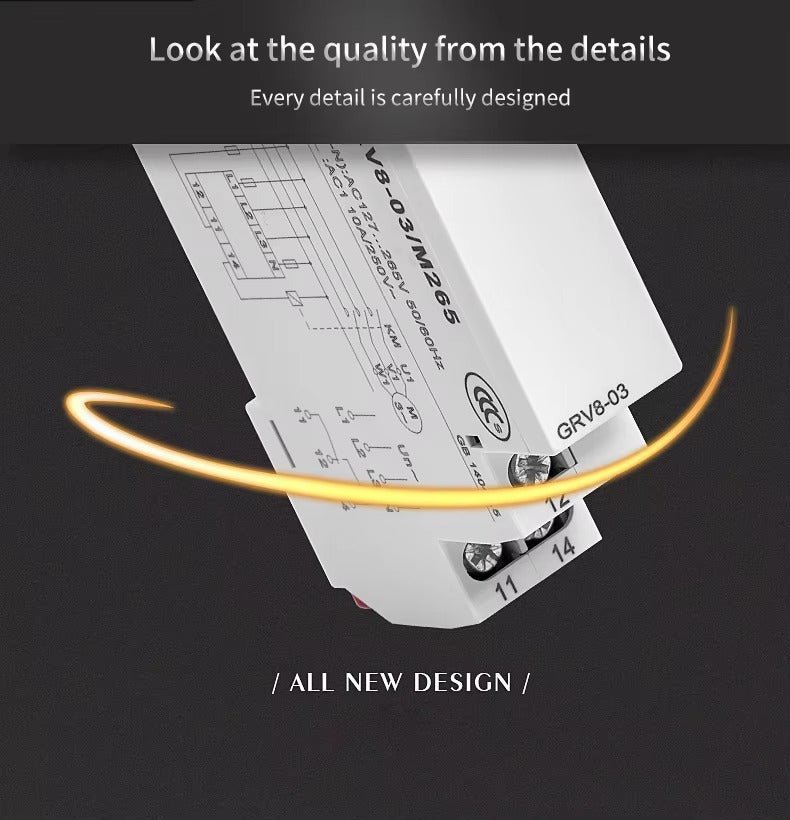

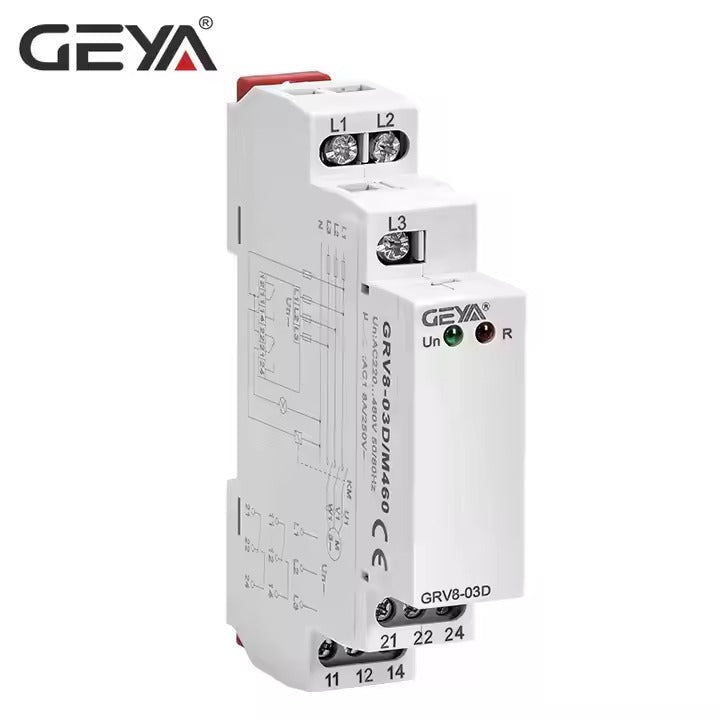

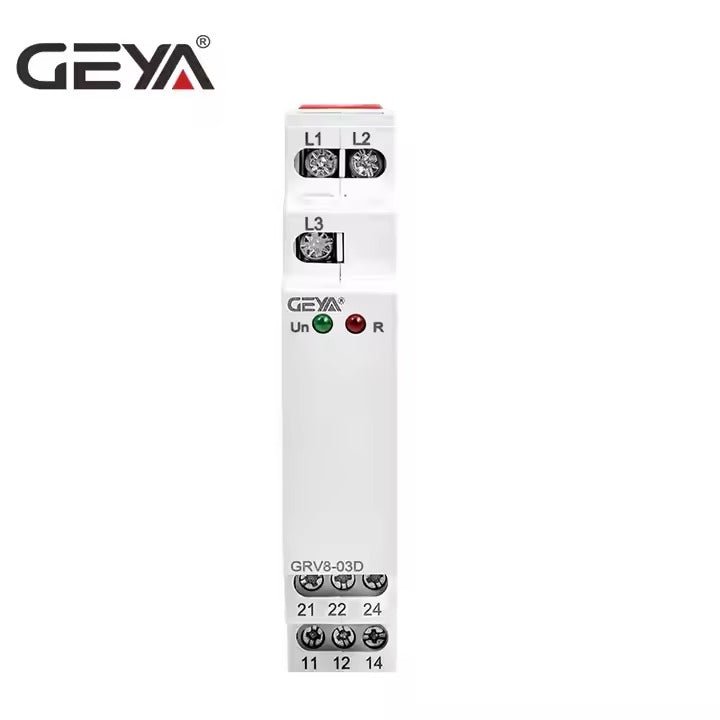

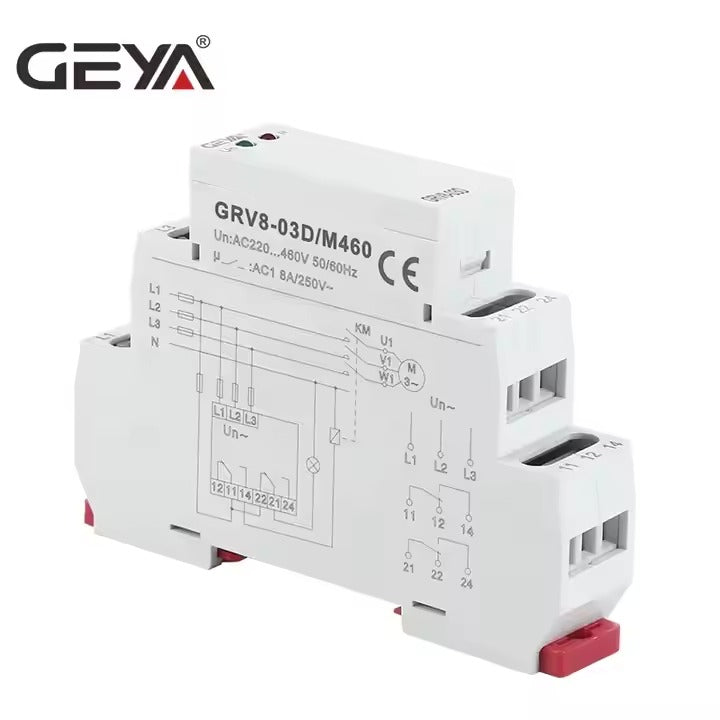

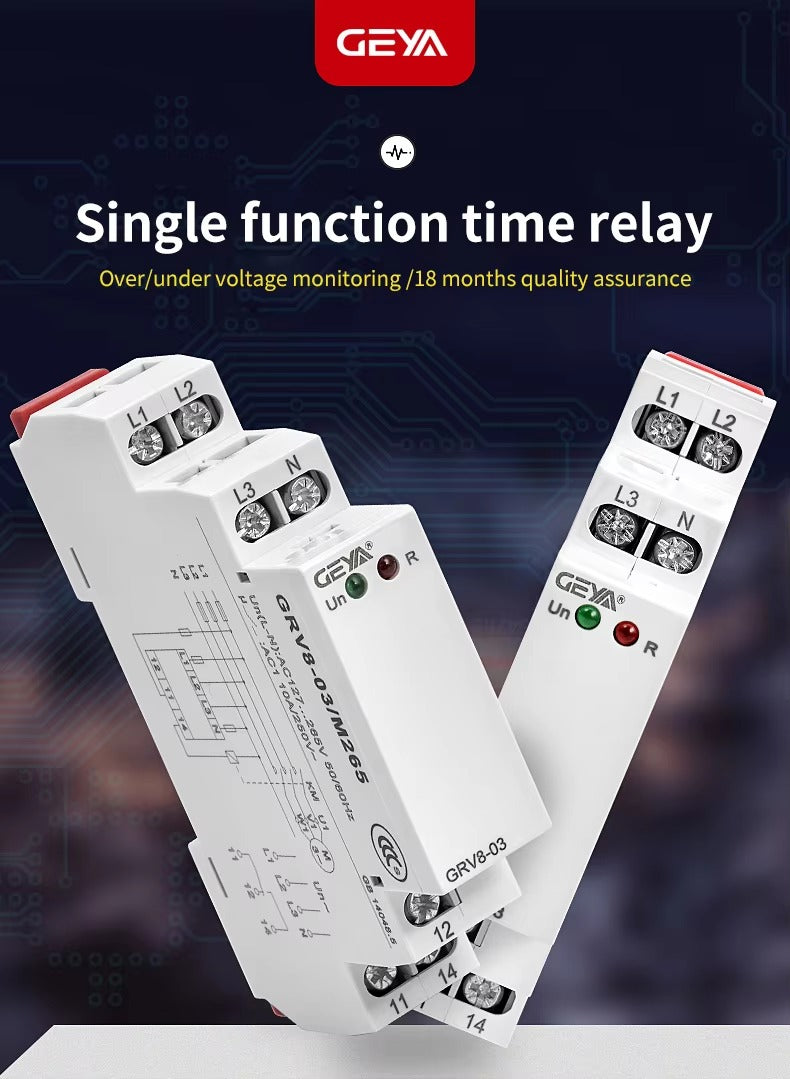

GEYA GRV8-03 3 Phase Voltage Relay by GEYA. Three-phase voltage monitoring relay for protecting motors and three-phase equipment (M265 version).
- Monitors the three phase voltages L1-L2-L3
- Adjustable threshold and time delay (0.1 s to 10 s)
- Measurement error 1% or better
- 1 x SPDT output, 10A / AC1
- 1-module DIN rail housing
Specifications
| Version | M265 |
| Monitored voltage | 127-265V AC (phase-neutral) |
| Frequency | 45-65 Hz |
| Output | 1 x SPDT, 10A 250VAC |
| Mounting | 1-module, DIN rail EN/IEC 60715 |

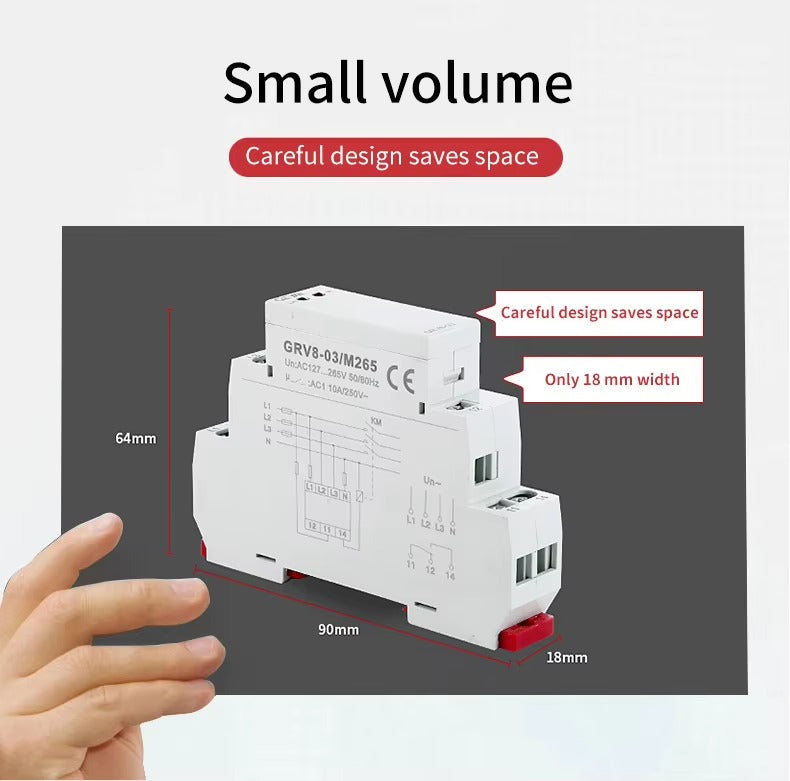

| Dimensions | 90 x 18 x 64 mm |
| Protection | IP40 front panel / IP20 terminals |
| Operating temperature | -20 to +55 C |
