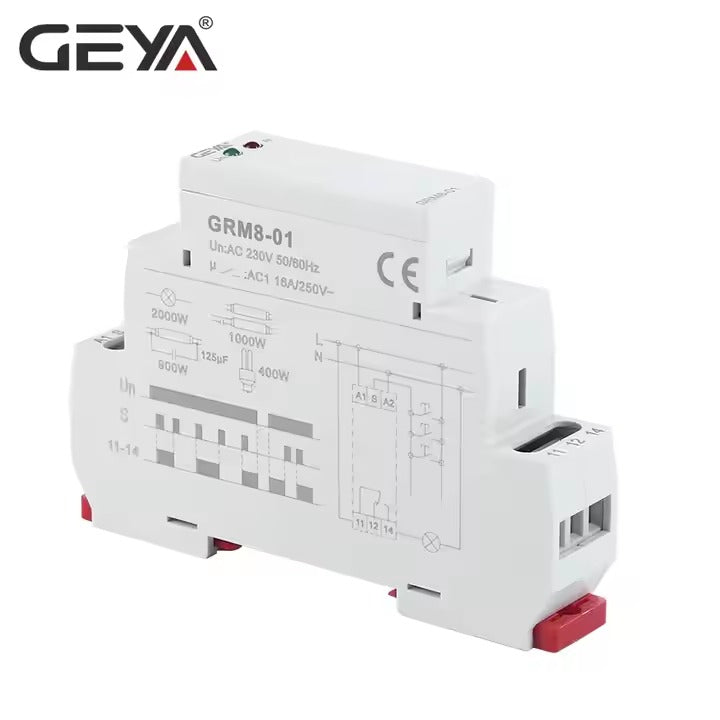

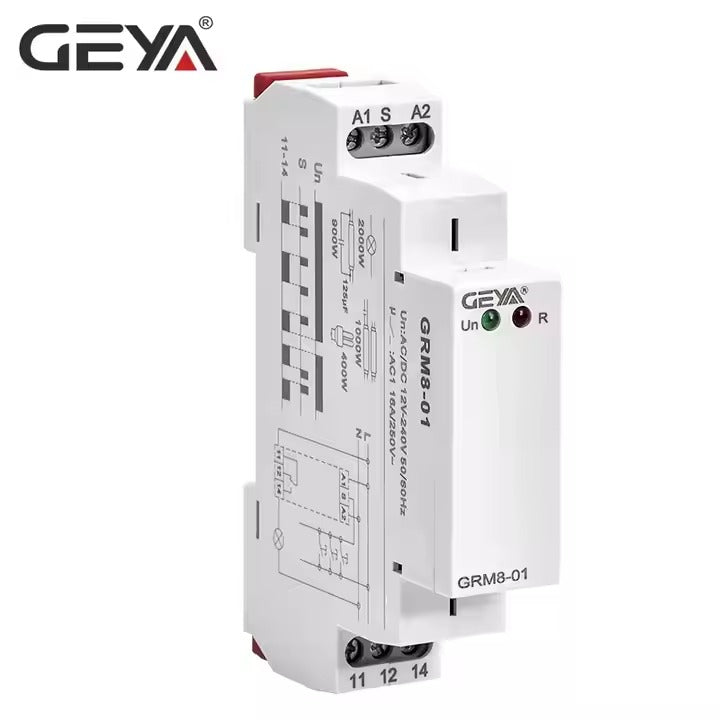

GEYA GRM8-01 Memory & Latching Relay
GEYA GRM8-01 Memory & Latching Relay
SKU:GEY-GRM8-01-W240
Regular price
$10.63
Regular price
$13.29
Sale price
$10.63
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle
GEYA GRM8-01 Memory & Latching Relay by GEYA. Memory and latching relay controlled by push buttons from any number of locations, replacing three-way and cross-bar switches.
- Unlimited push buttons connected in parallel by 2 wires
- Supply AC 230V or AC/DC 12-240V
- Suitable for buttons with glow lamps (up to 75 pcs at 230V)
- 1 x SPDT output, 16A / AC1
- 1-module DIN rail housing
Specifications
| Supply voltage | AC 230V (A230) or AC/DC 12-240V (W240) |
| Output | 1 x SPDT, 16A 250VAC |
| Minimum impulse | 25 ms |

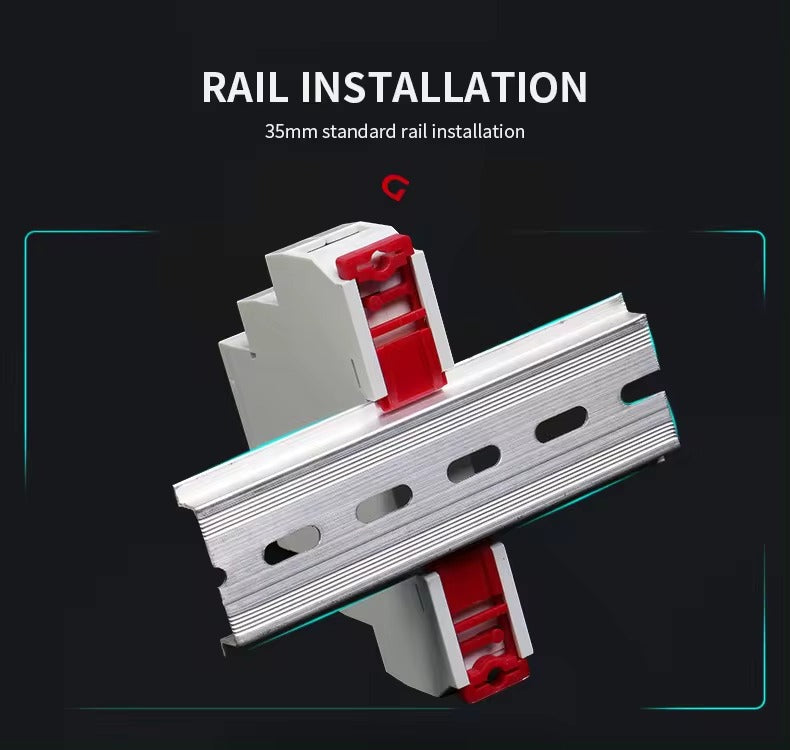

| Mounting | 1-module, DIN rail EN/IEC 60715 |

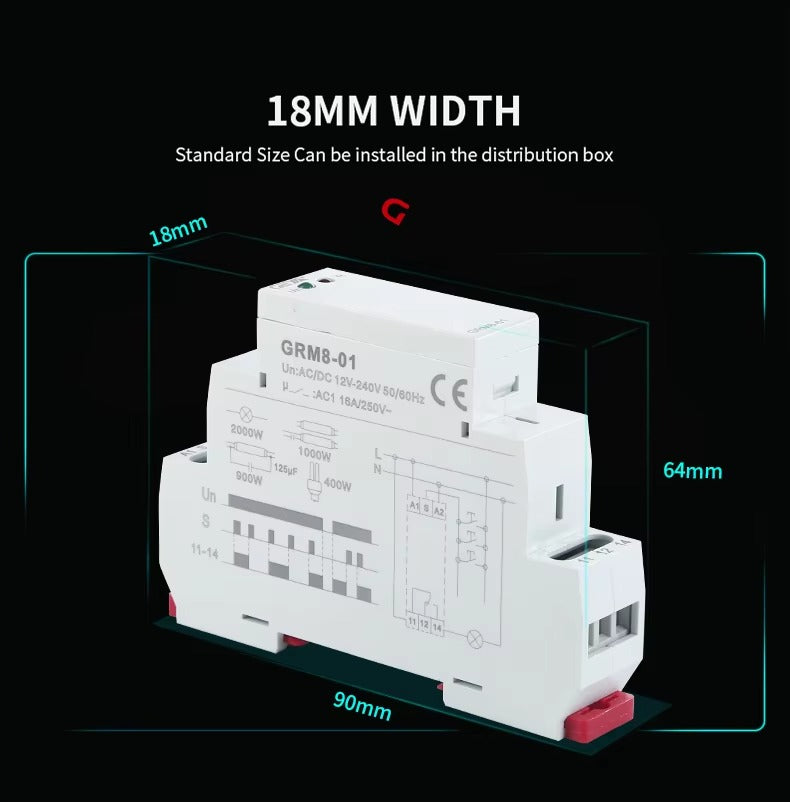

| Dimensions | 90 x 18 x 64 mm |
| Protection | IP40 front panel / IP20 terminals |
| Operating temperature | -20 to +55 C |
