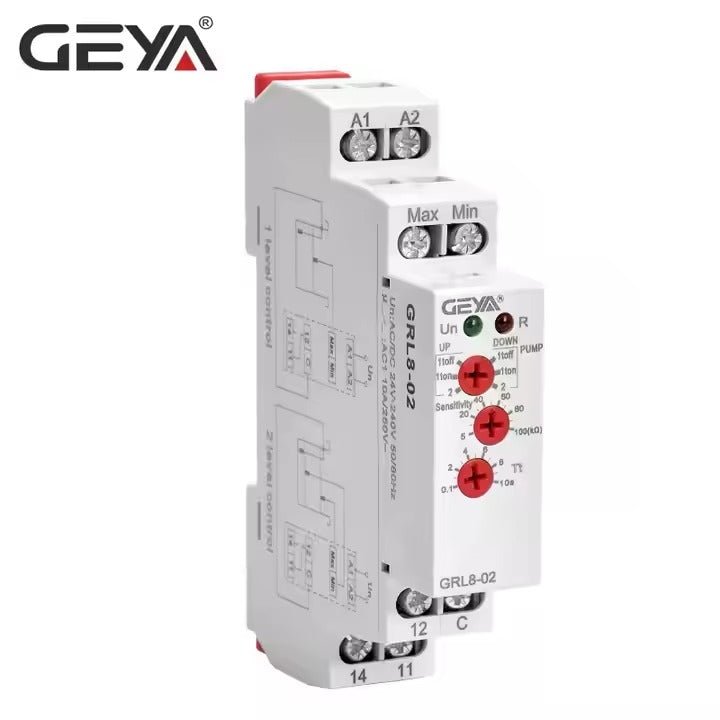

GEYA GRL8-02 Level Control Relay
GEYA GRL8-02 Level Control Relay
SKU:GEY-GRL8-02
Regular price
$21.22
Regular price
$26.52
Sale price
$21.22
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Cash on deliveryPay when it arrives
Delivery across Lebanon2–4 business days
5-day returnsUnused, in original packaging
Trusted since 1984Azar Group S.A.L., Zahle

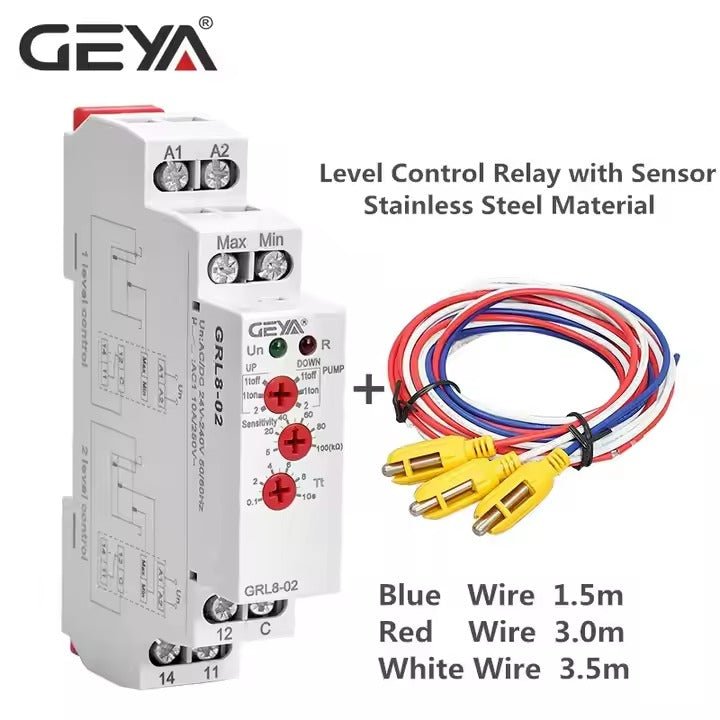

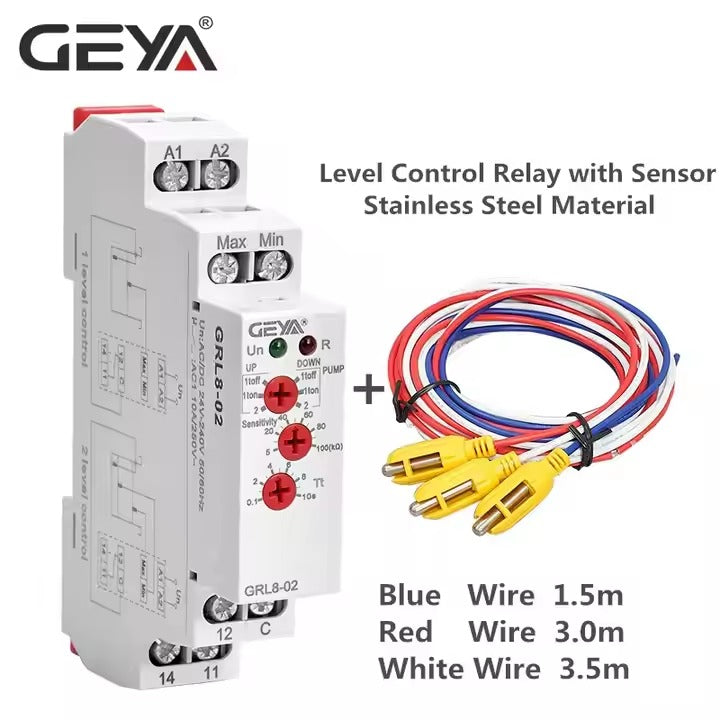

GEYA GRL8-02 Level Control Relay by GEYA. Level control relay for wells, basins, reservoirs and tanks, working with conductive probes. The GRL8-02 is the 2-level version.
- Selectable PUMP UP or PUMP DOWN function
- Adjustable output delay 0.1 s to 10 s
- Sensitivity adjustable 5-100 kOhm
- Galvanically separated supply AC/DC 24-240V
- 1-module DIN rail housing
Specifications
| Supply voltage | AC/DC 24-240V |
| Control mode | 2-level |
| Output | 1 x SPDT, 10A 250VAC |
| Probe voltage | Max. AC 5V |

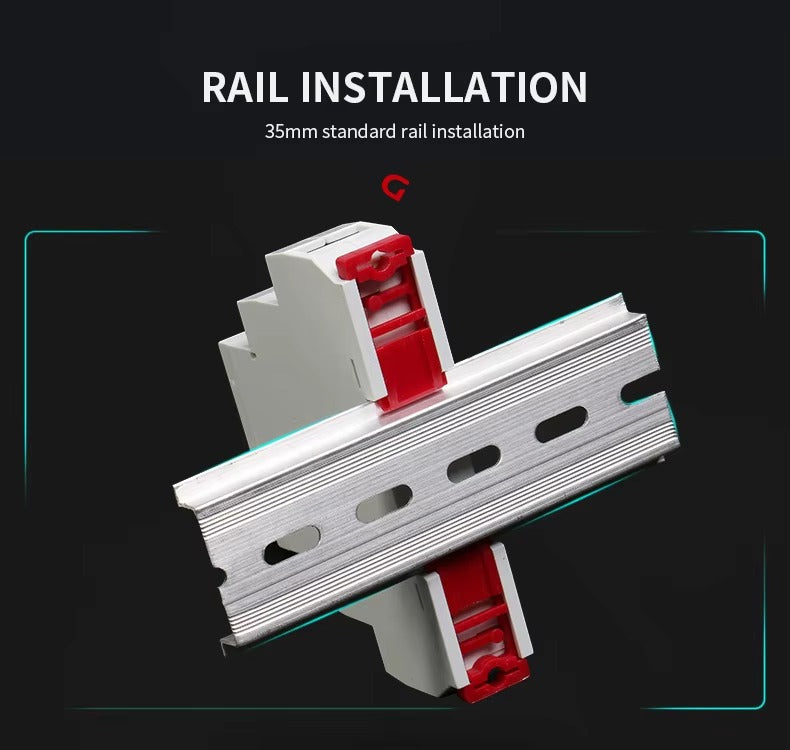

| Mounting | 1-module, DIN rail EN/IEC 60715 |

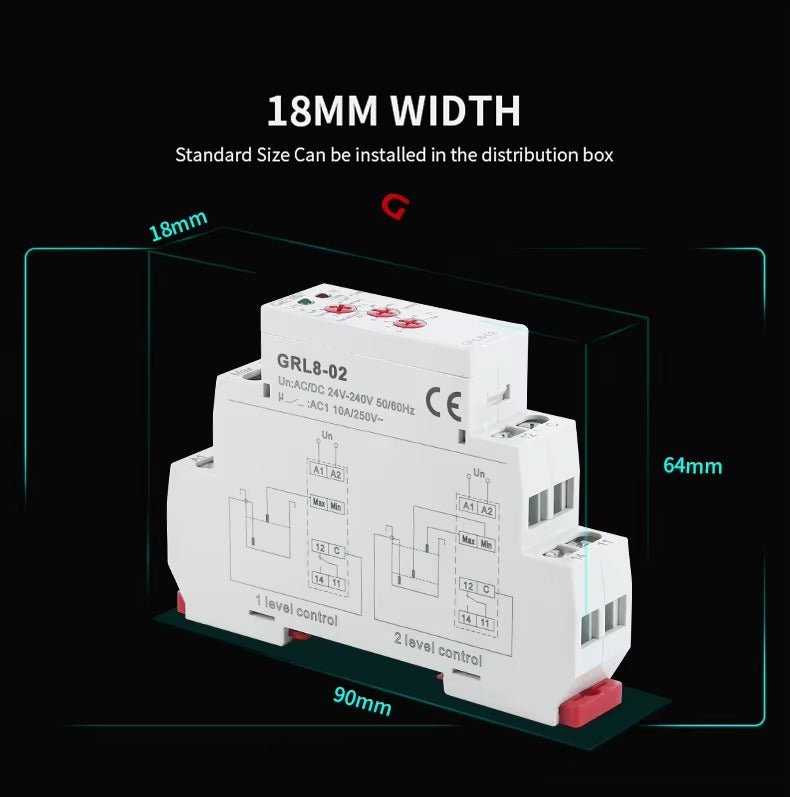

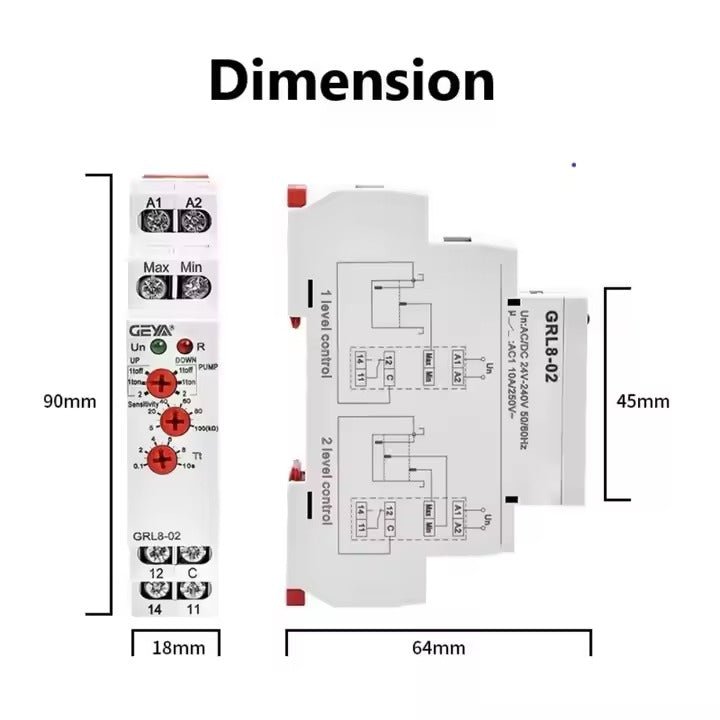

| Dimensions | 90 x 18 x 64 mm |
| Protection | IP40 front panel / IP20 terminals |
| Operating temperature | -20 to +55 C |
