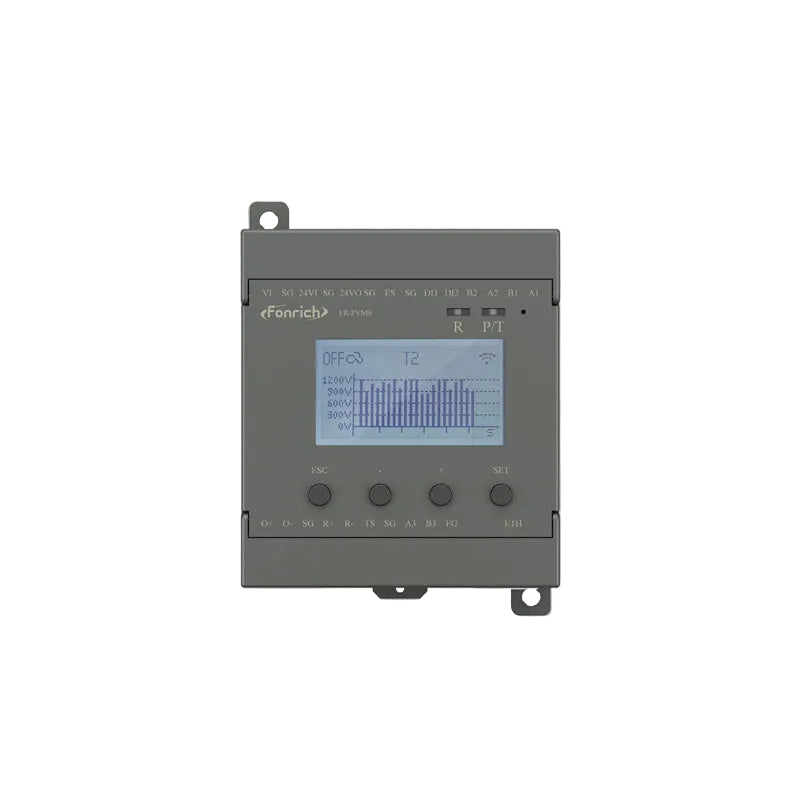

Fonrich FR-PVMS-MGES Smart Logger with Power Supply — PV Monitoring Gateway, RS485

The Fonrich FR-PVMS-MGES is the smart logger of the Fonrich rapid shutdown and optimizer system, supplied with its own power unit. It gathers the data the PLC transceiver collects from every module-level device, displays string power and status, and uploads it to the Fonrich SafeSolar cloud platform for remote monitoring.

Key features

• Central data logger for Fonrich rapid shutdown devices and power optimizers
• Supplied complete with power supply — no separate unit to source
• Displays PV string power and device status
• RS485 link to the PLC transceiver / head module
• Uploads data to the SafeSolar cloud platform for remote monitoring and alarms

Specifications

• Model: FR-PVMS-MGES
• Function: system data logger and monitoring gateway
• Communication: RS485 to transceiver, cloud upload to SafeSolar platform
• Supplied with: power supply included
