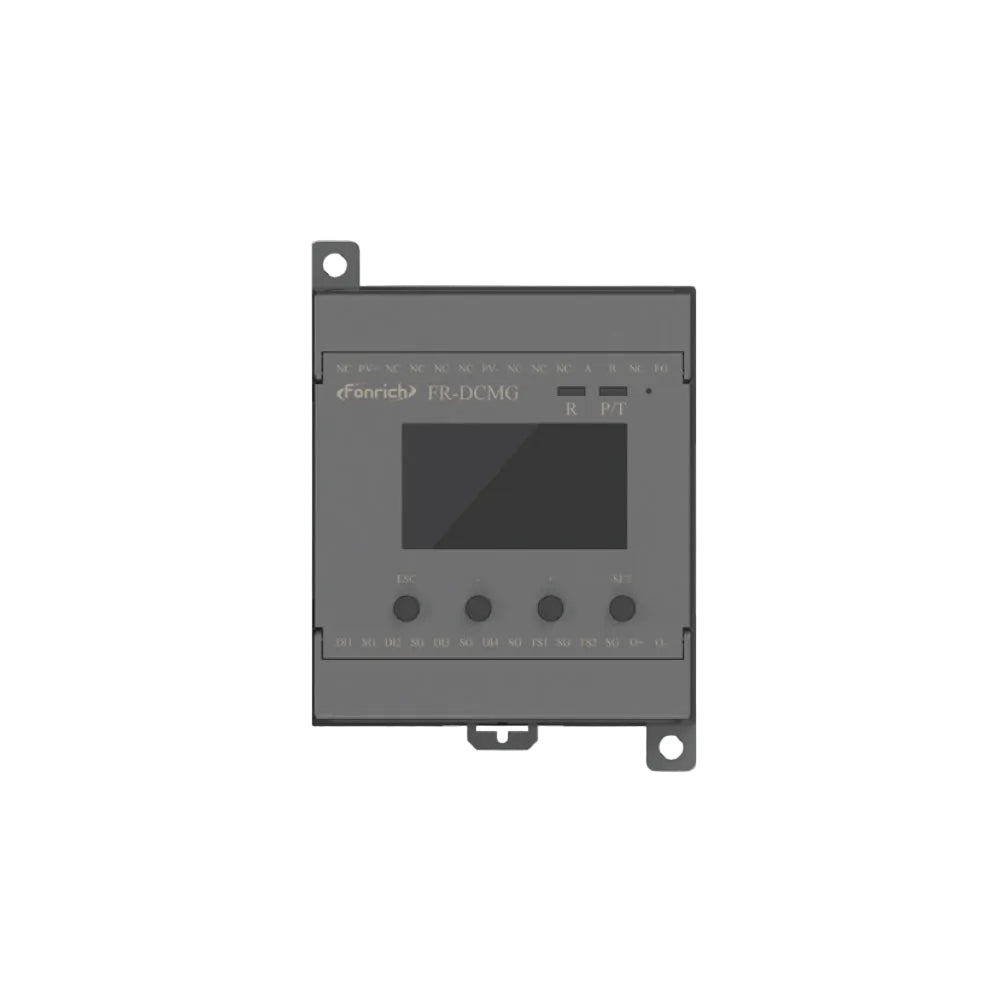

• A dark gray industrial electronic module with a small screen and four buttons, branded 'fannick' and labeled 'FR-DCMG', centered against a white and light gray wavy background.
1 1

Fonrich

Fonrich FR-DCMG-MMPP Combiner Box Monitoring Main Controller — 1500V, RS485, Arc Protection

Fonrich FR-DCMG-MMPP Combiner Box Monitoring Main Controller — 1500V, RS485, Arc Protection

FR-DCMG-MMPP

$97.64
$145.73 $97.64
Sale Sold out
Shipping calculated at checkout.
  • Cash on deliveryPay when it arrives
  • Delivery across Lebanon2–4 business days
  • 5-day returnsUnused, in original packaging
  • Trusted since 1984Azar Group S.A.L., Zahle

The Fonrich FR-DCMG-MMPP is the main controller of the Fonrich combiner box monitoring system. It measures string current, voltage and temperature straight from the busbar, shows them on the local LCD, reports them over RS485, and adds UL 1699B arc detection with an integrated circuit-breaker shunt trip drive so a detected arc is interrupted, not just alarmed.

Key features

  • Real-time LCD display of string current, voltage and temperature
  • DC arc fault detection to UL 1699B (Type 1) with integrated shunt trip drive
  • Monitors surge protector and circuit breaker status
  • Remote alarms and RS485 data reporting
  • Powered directly from the busbar — no external supply needed
  • Enclosed PCB design, direct bus-bar connection, works standalone without expansion modules
  • CE-EMC certified

Specifications

  • Model: FR-DCMG-MMPP (FR-DCMG-Mxxx series)
  • Input voltage: 450–1500 Vdc
  • Max. input current: 0.1 A
  • Power dissipation: < 10 W
  • Current channels: up to 24
  • Shunt trip drive: 24 V, 80 W × 10 ms
  • Communication: RS485
  • Power supply: busbar / 24 Vdc
