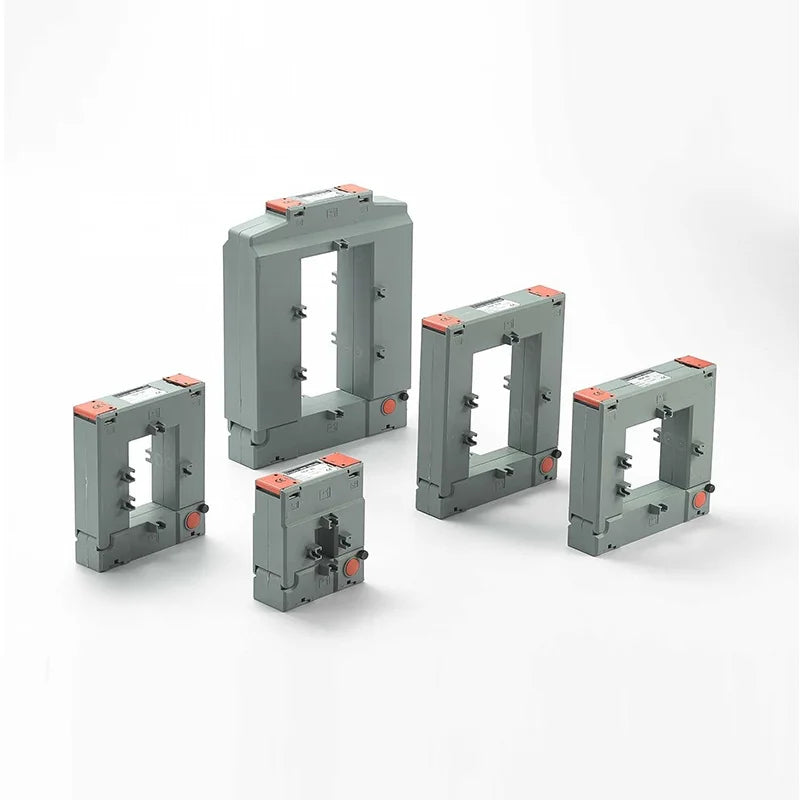

  • Dixsen NDP-88 Split Core Current Transformer – 1000/5A, Class 0.5, 5VA Dixsen
1 2

Dixsen

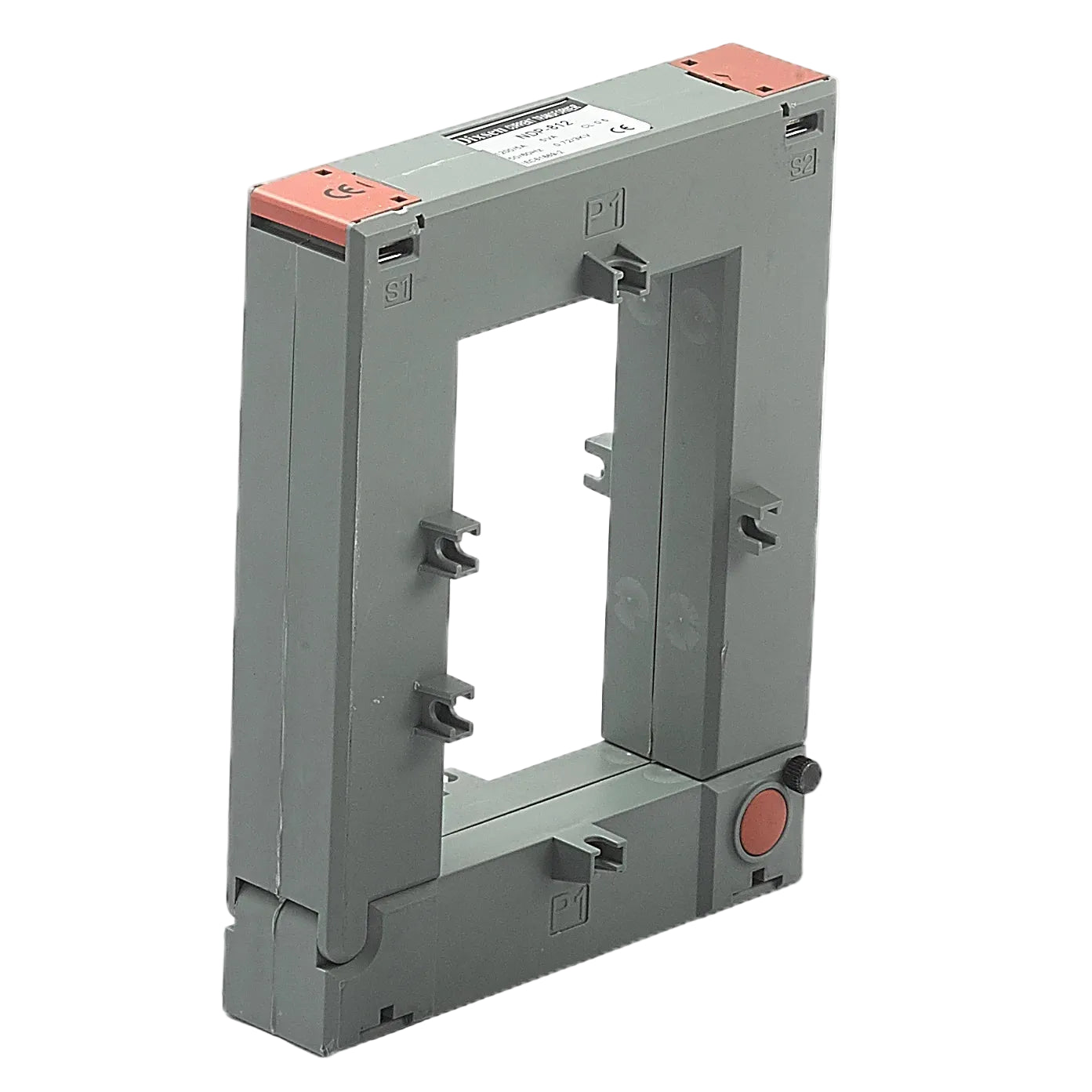

Dixsen NDP-58 Split Core Current Transformer – 500/5A, Class 0.5, 2.5VA

Dixsen NDP-58 Split Core Current Transformer – 500/5A, Class 0.5, 2.5VA

$33.60
$33.60
Sale Sold out
Shipping calculated at checkout.

Precision Metering Made Simple.

The Dixsen NDP-58 is a high-performance Split Core Current Transformer (CT) designed for ease of installation and high-accuracy energy monitoring.

Unlike traditional solid-core transformers, the NDP-58 features an innovative split-core design with a one-touch release button. This allows you to install the unit onto existing busbars or cables without disconnecting the primary power supply, saving you significant downtime and installation costs.

Whether you are retrofitting an existing panel for energy management or setting up a new sub-metering system, the NDP-58 delivers the Class 0.5 accuracy required for precise industrial and commercial applications.

Key Features:

  • Smart Split-Core Design: Features a secure hinge and snap-lock mechanism for rapid installation on existing networks.
  • High Accuracy: Rated Class 0.5, making it suitable for high-precision metering and revenue-grade applications.
  • Safe & Reliable: Built with a durable, flame-retardant housing to withstand industrial environments.
  • Versatile Mounting: Designed with a large window to accommodate various cable and busbar sizes.

Technical Specifications

Feature Specification
Model NDP-58
Primary Current Input 500 A
Secondary Current Output 5 A
Accuracy Class 0.5
Rated Burden 2.5 VA
Core Type Split Core (Open Loop)
Frequency 50/60 Hz
Standard IEC 60044-1

Typical Applications:

  • Energy Management Systems (EMS)
  • Commercial Sub-Metering
  • Power Distribution Monitoring
  • Retrofit Projects
  • Industrial Control Panels
